Home >> Chevrolet >> 1992 >> Beretta L4-134 2.2L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> DTC 25

DTC 25

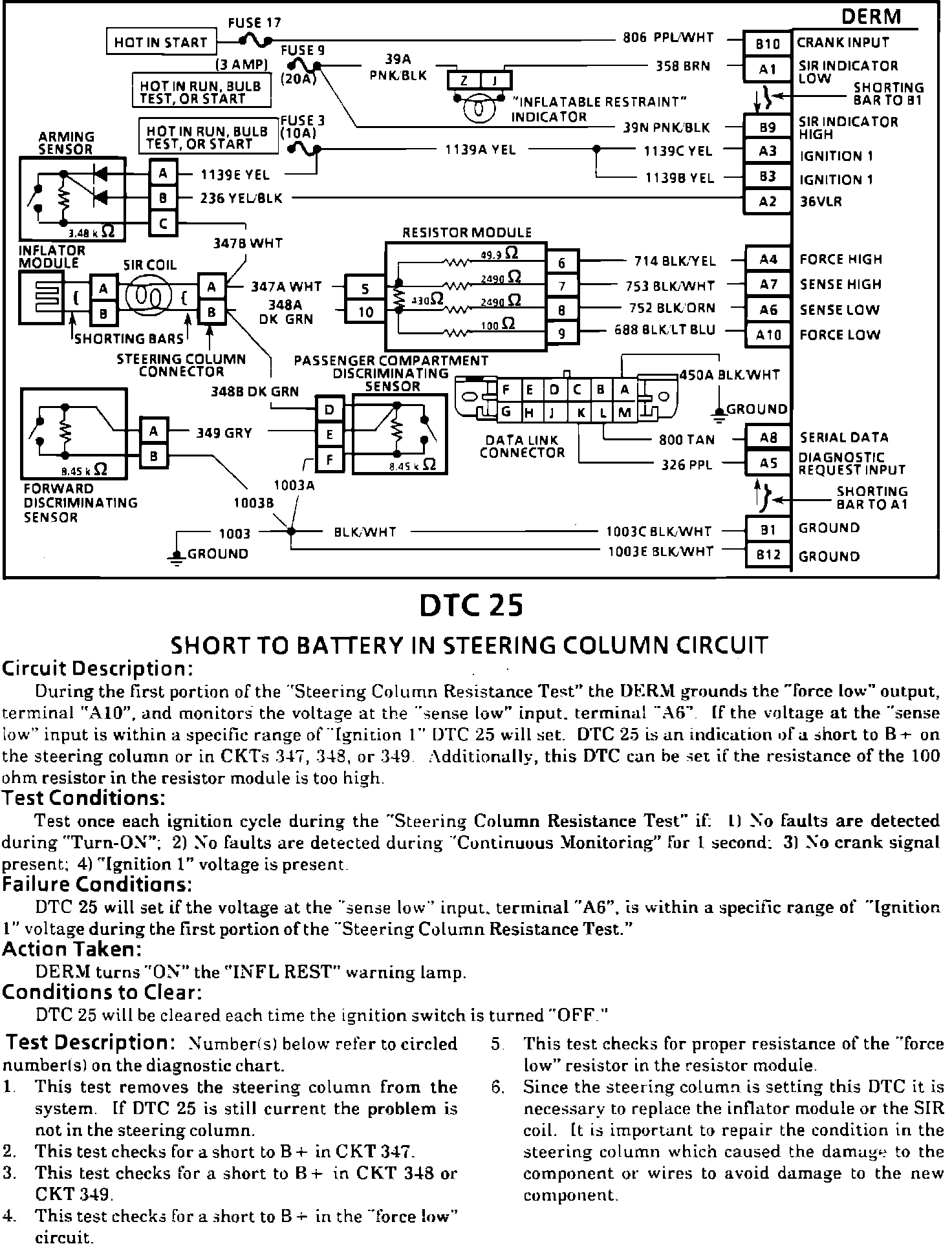

Fig. 90 Code 25, Short To Battery In Steering Column Circuit (Part 1 of 2):



Fig. 90 Code 25, Short To Battery In Steering Column Circuit (Part 2 of 2):
