Chevrolet
>>
1991
>>
Lumina V6-204 3.4L DOHC
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>

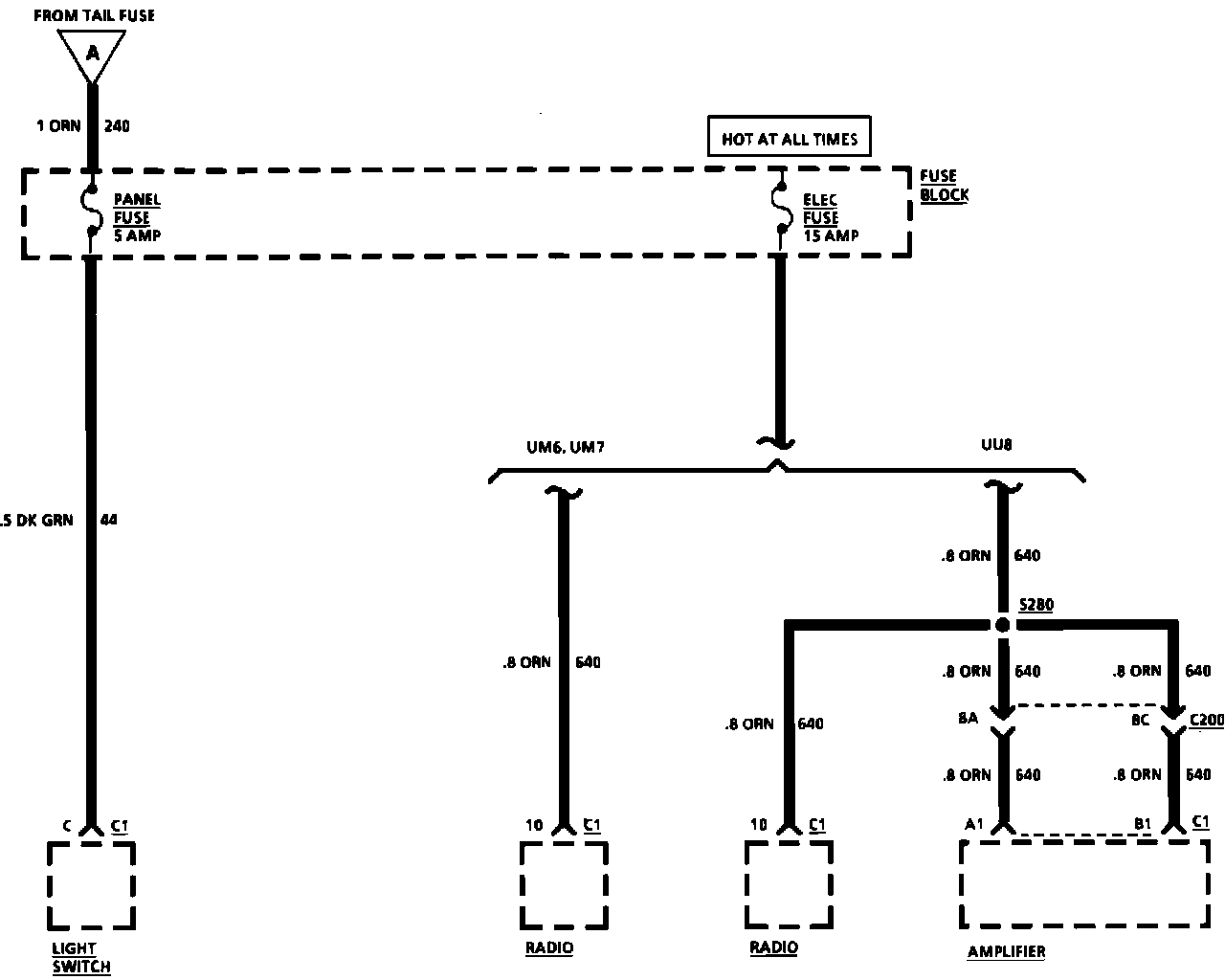

Panel And Electric Fuse
Panel And Electric Fuse
Panel And Electric:
