Home >> Chevrolet >> 1991 >> Lumina V6-204 3.4L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Malfunction Indicator Lamp >> Diagrams >> Electrical Diagrams >> Electronic Fuel Injection

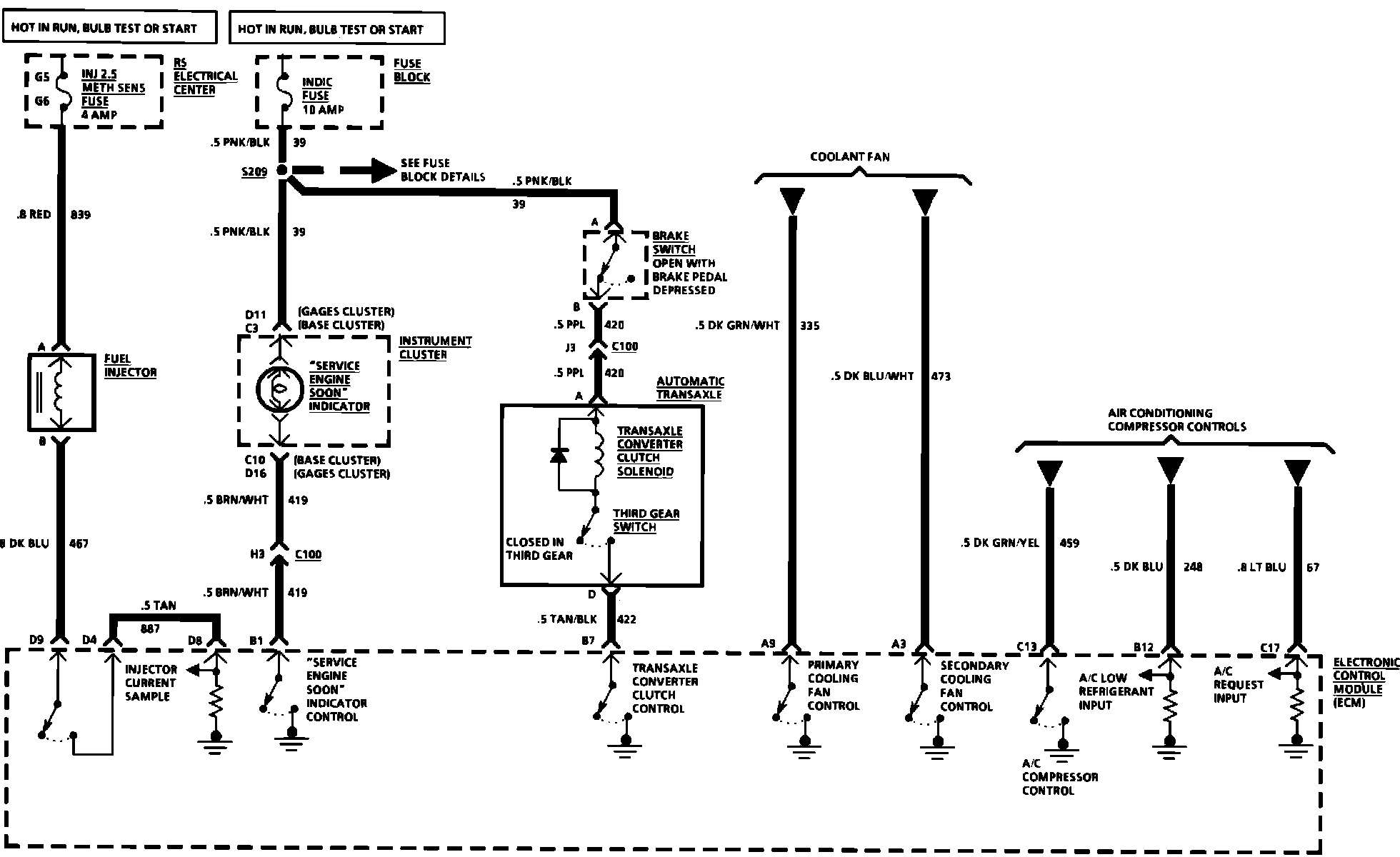

Electronic Fuel Injection

Electronic Fuel Injection. Idle Air Control, "Service Engine Soon Indicator: And Automatic Transaxle:
