Home >> Chevrolet >> 1991 >> Lumina V6-204 3.4L DOHC >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Component Tests and General Diagnostics >> Component Diagnostic Charts/Tests >> Blower Controls >> Without A/C >> Test E - Low Blower Relay Test >> Table 1 of 2

Table 1 of 2

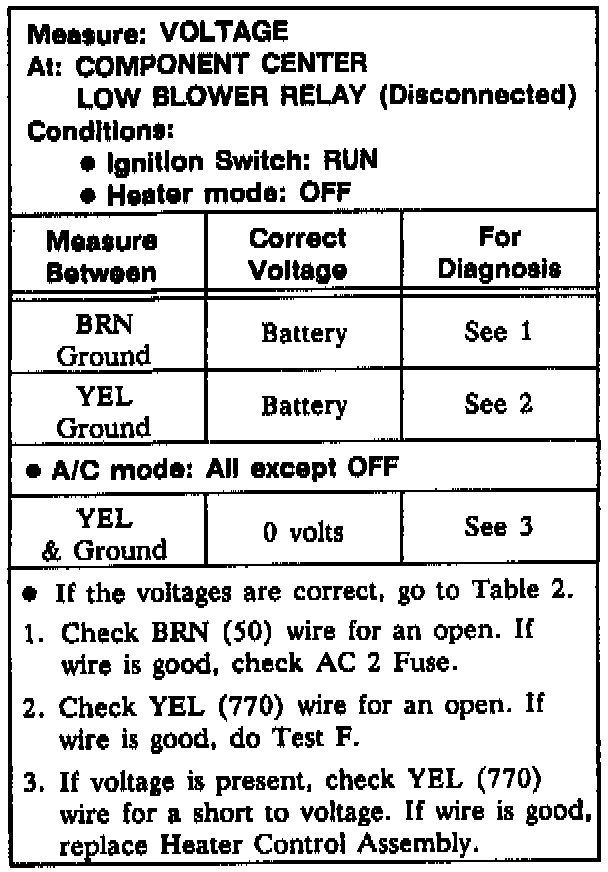

Low Blower Relay Test Table 1 of 2:
