Connecting Rod Bearing: Service and Repair

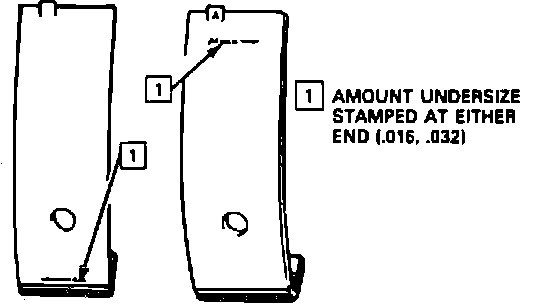

Fig. 16 Bearing Marking:

Connecting rod and main bearing are of the precision insert type. They are available for service use in standard and two undersizes of .016 and .032 inch. Bearing undersize amount is stamped at either end of the bearing, Fig. 16.
