Radius Arm: Service and Repair

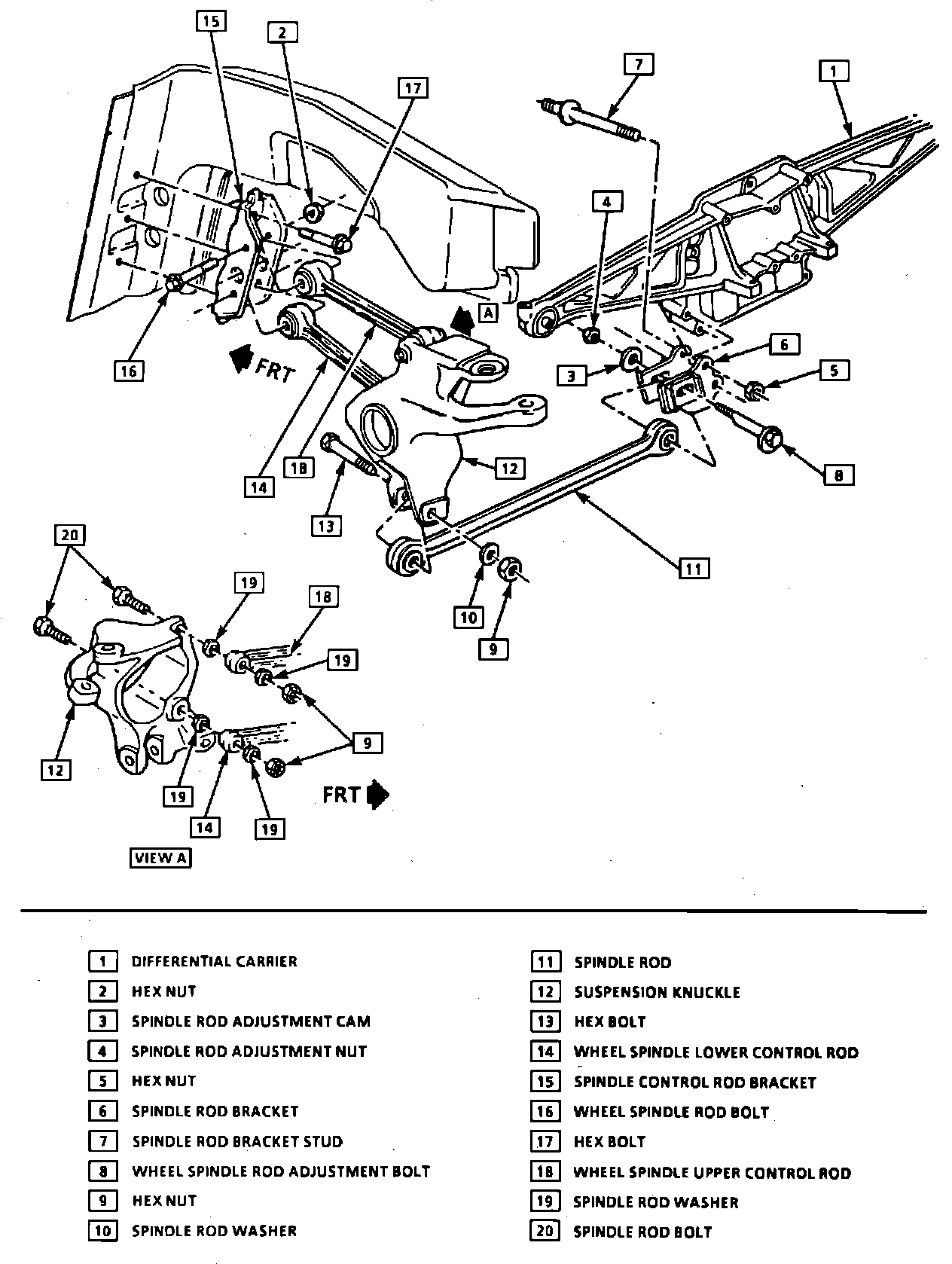

Fig. 10 Knuckle & Control Arm:

1. Raise and support vehicle, and remove wheel and tire.
2. Scribe mark between cam bolt and bracket for reassembly.
3. Remove cam bolt and disconnect support rod from bracket, Fig. 10.
4. Remove bolt securing spindle support rod to knuckle and rod.
5. Reverse procedure to install, then check rear suspension alignment. Torque retaining bolt at knuckle and cam bolt to specifications.
