Curiosii for ever!: Car repair manuals for everyone.
Home >> Chevrolet >> 1991 >> Corvette V8-350 5.7L >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> SIR Diagnostic System Check

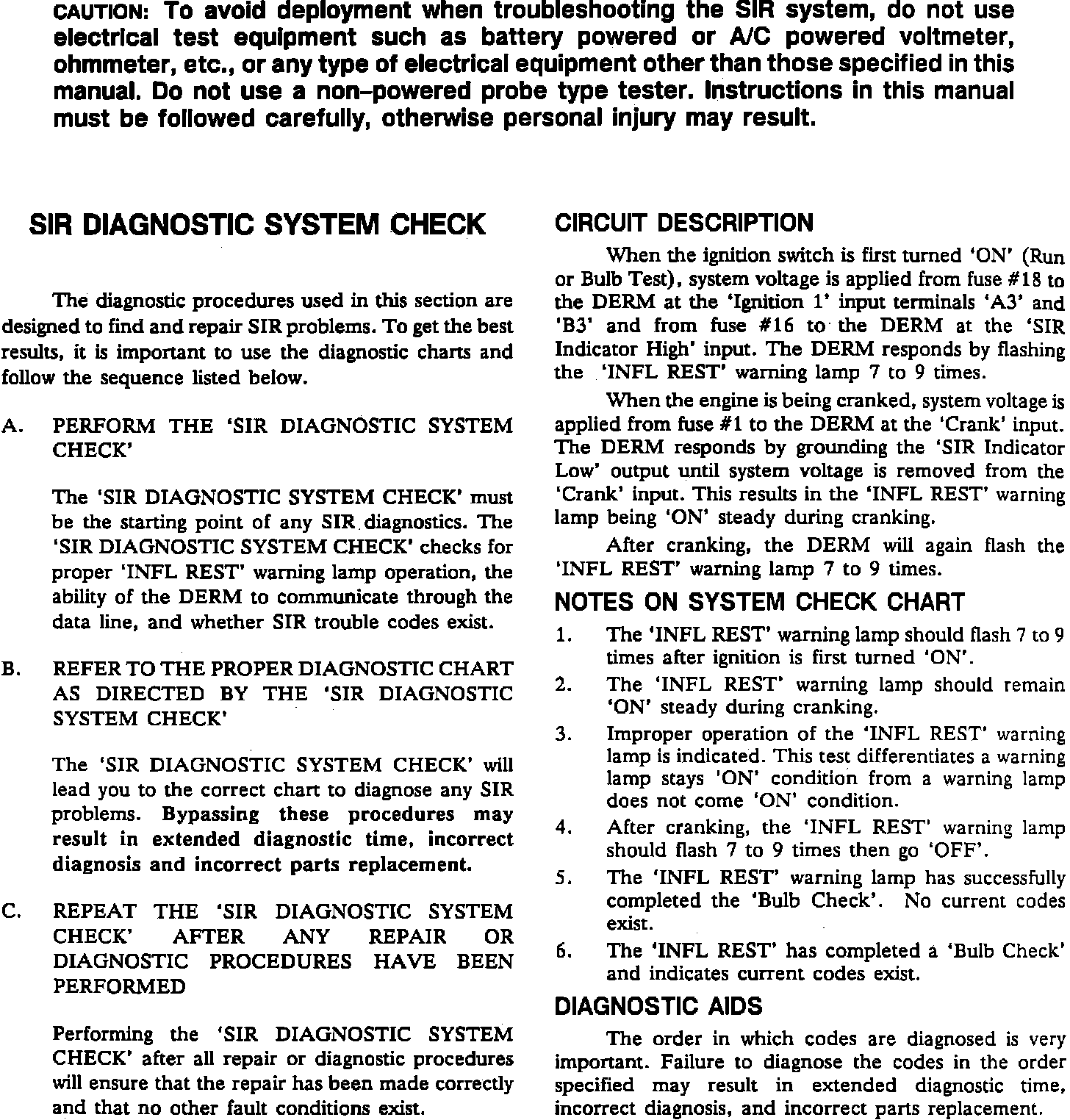

SIR Diagnostic System Check

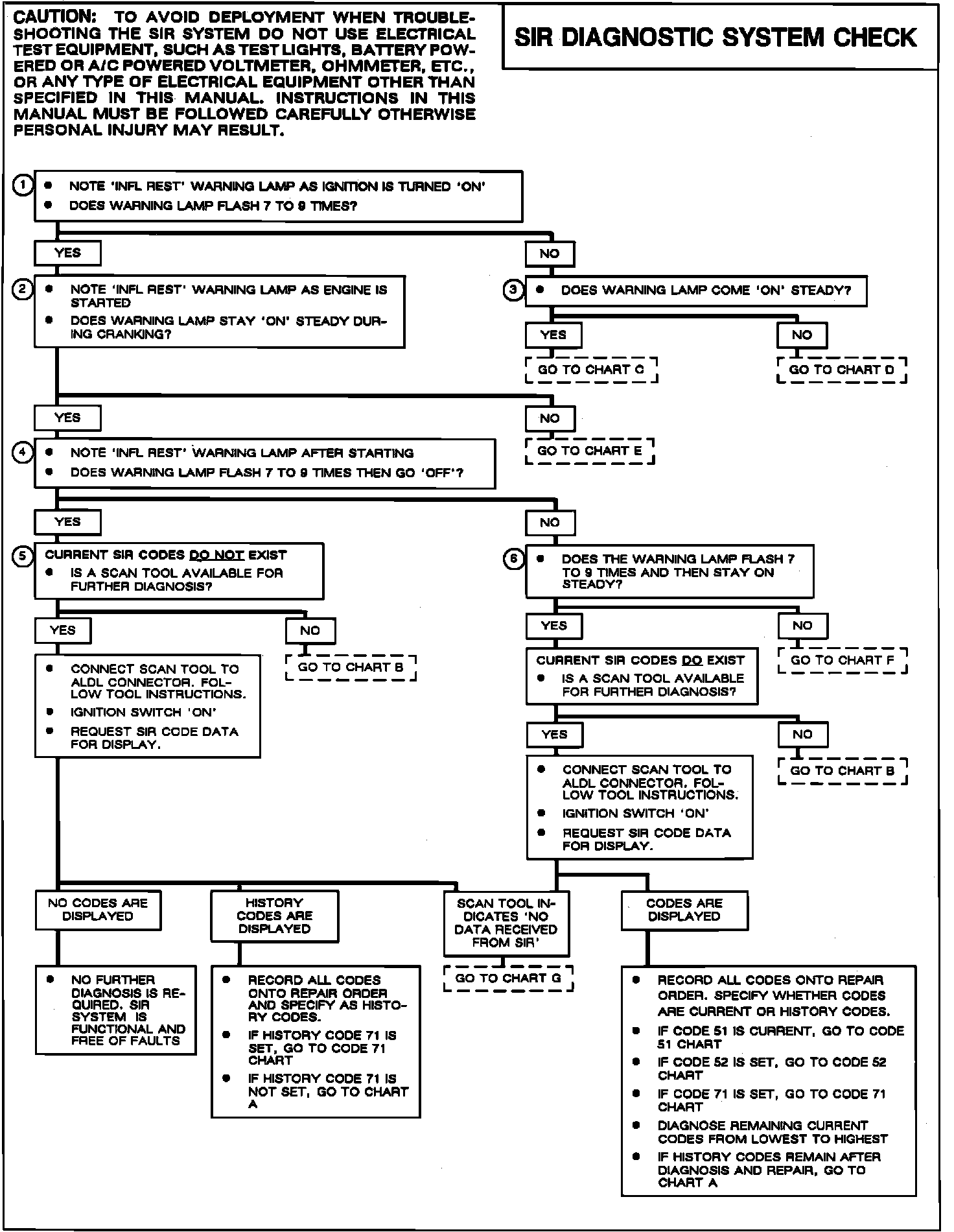

Fig. 23 SIR Diagnostic System Check:



Fig. 23 SIR Diagnostic System Check:
