Chart G DERM Cannot Communicate Through the Serial Data Circuit

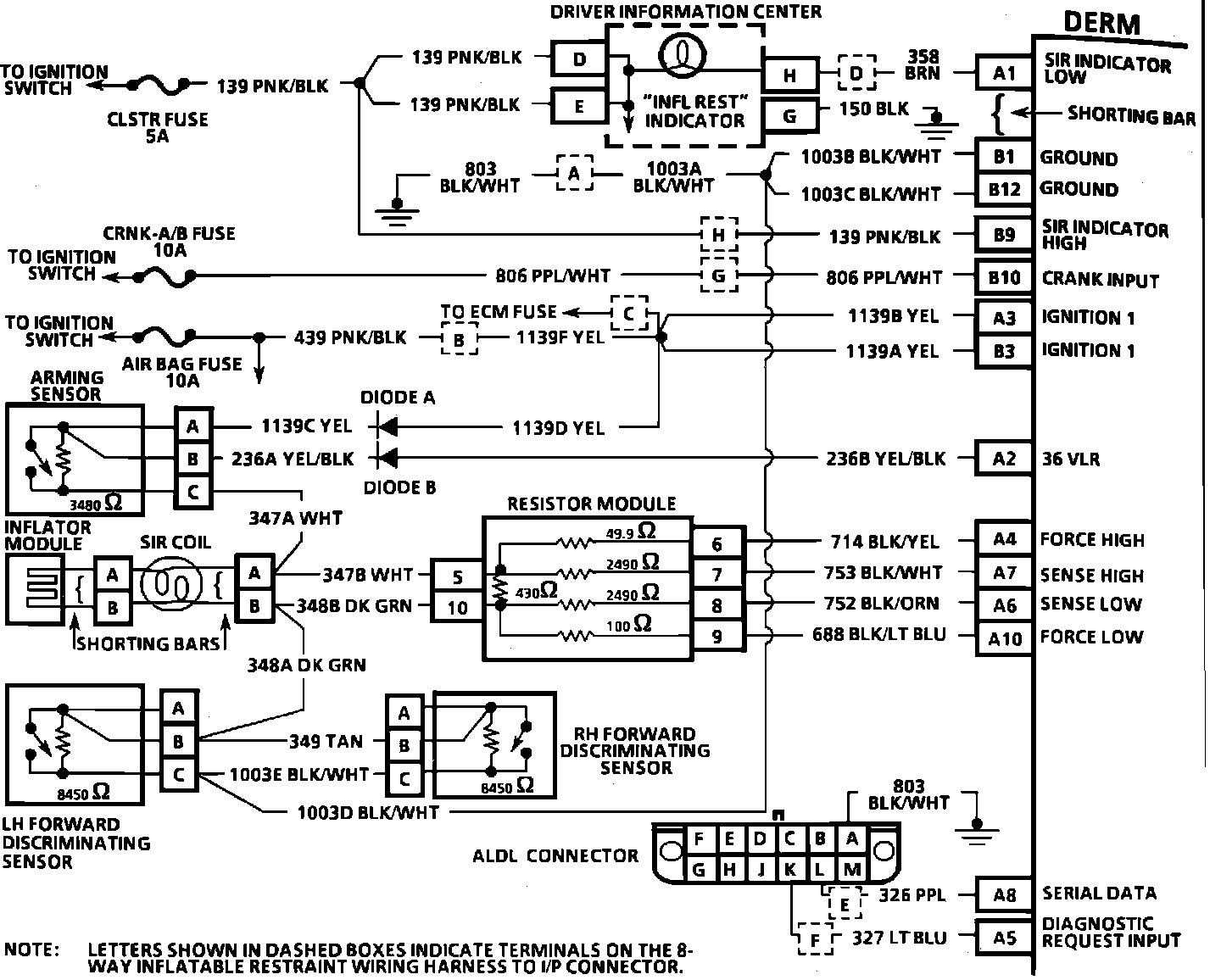

Fig. 91 Chart G, DERM Cannot Communicate With TECH1 (Part 1 Of 2).:

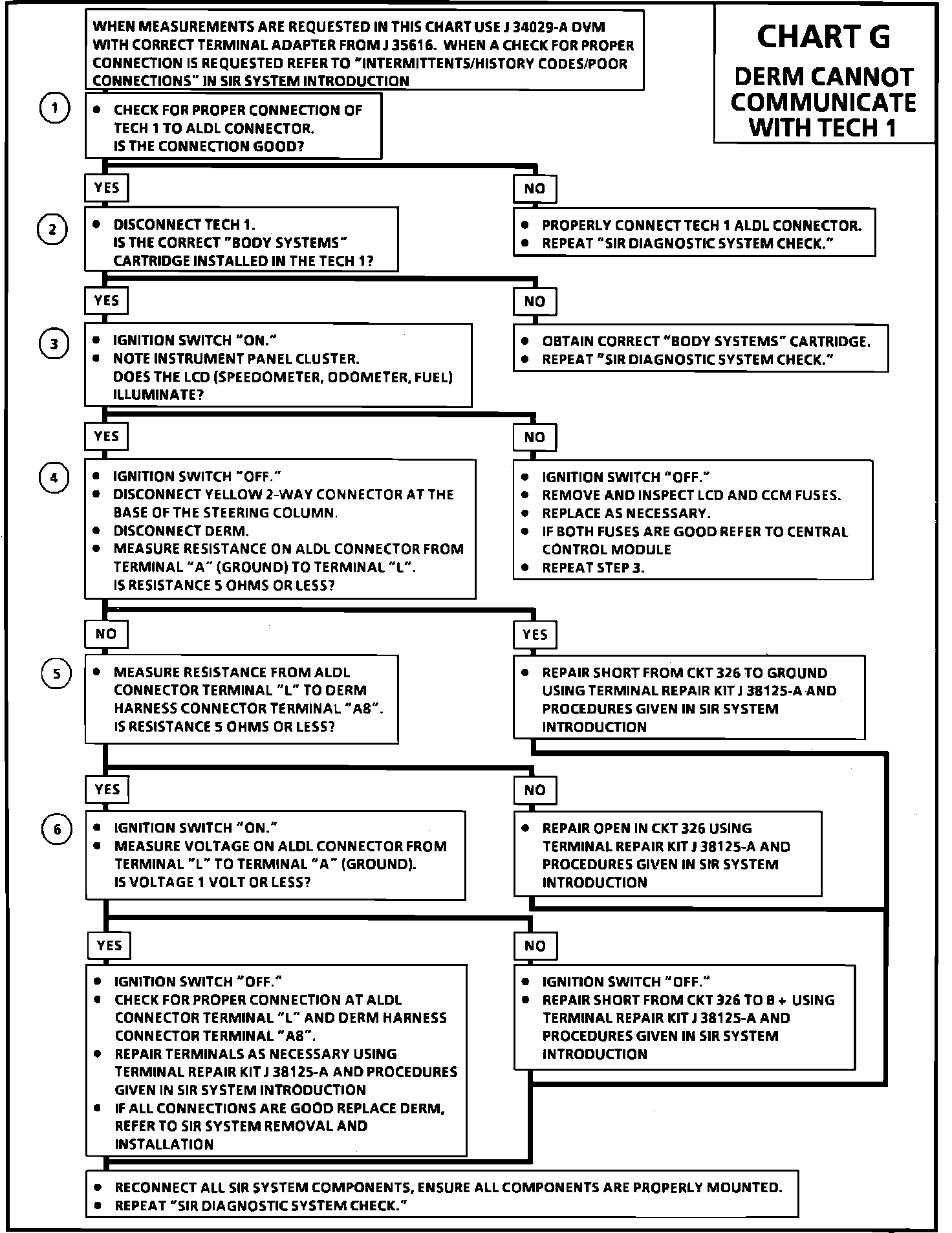

Fig. 91 Chart G, DERM Cannot Communicate With TECH1 (Part 2 Of 2).:
