Chart A History Code Diagnosis

Fig. 27 Chart A, TECH 1 Tool History Code Diagnosis (Part 1 Of 3).:

Fig. 27 Chart A, TECH 1 Tool History Code Diagnosis (Part 1 Of 3).:

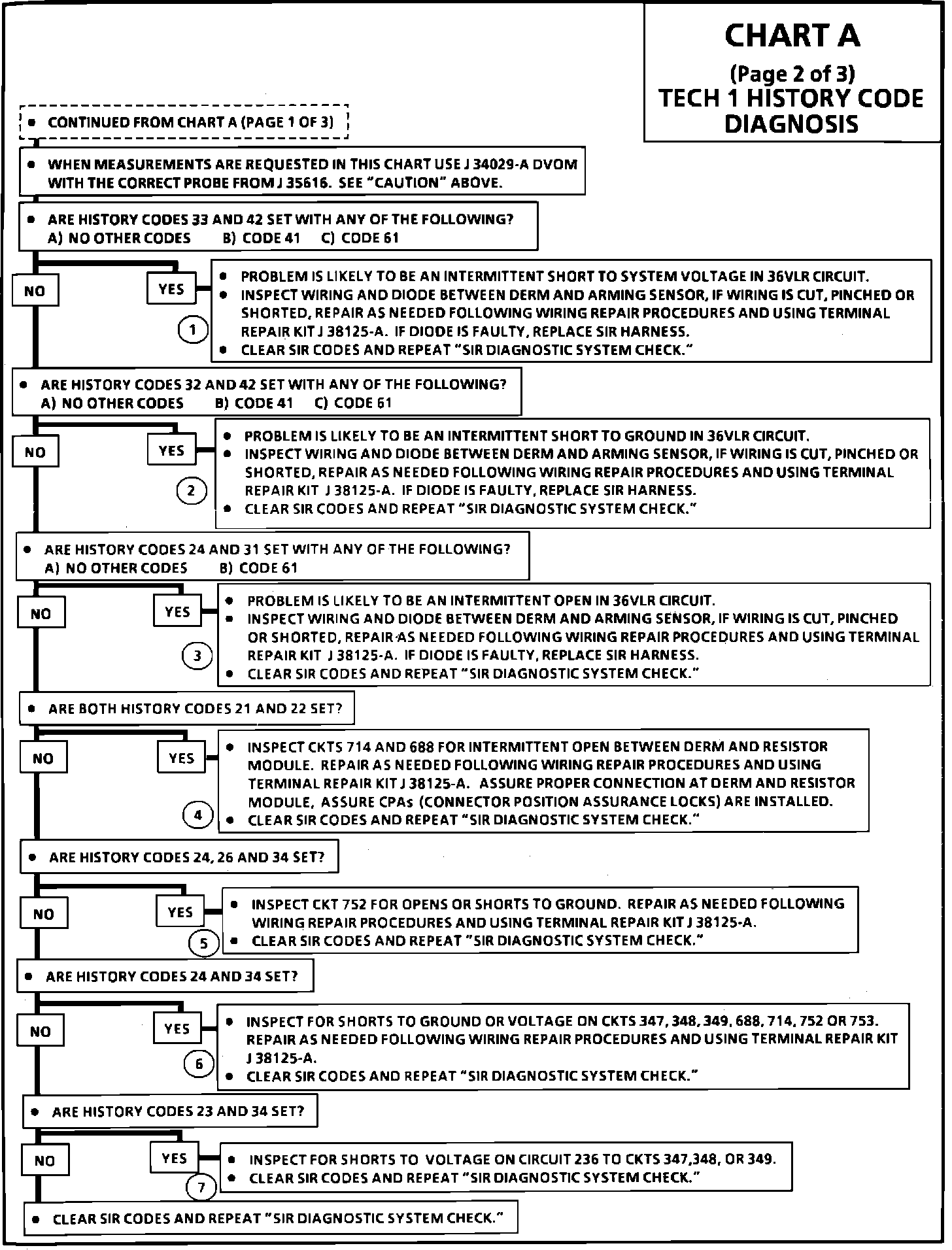

Fig. 27 Chart A, TECH 1 Tool History Code Diagnosis (Part 2 Of 3).:

Fig. 27 Chart A, TECH 1 Tool History Code Diagnosis (Part 2 Of 3).:

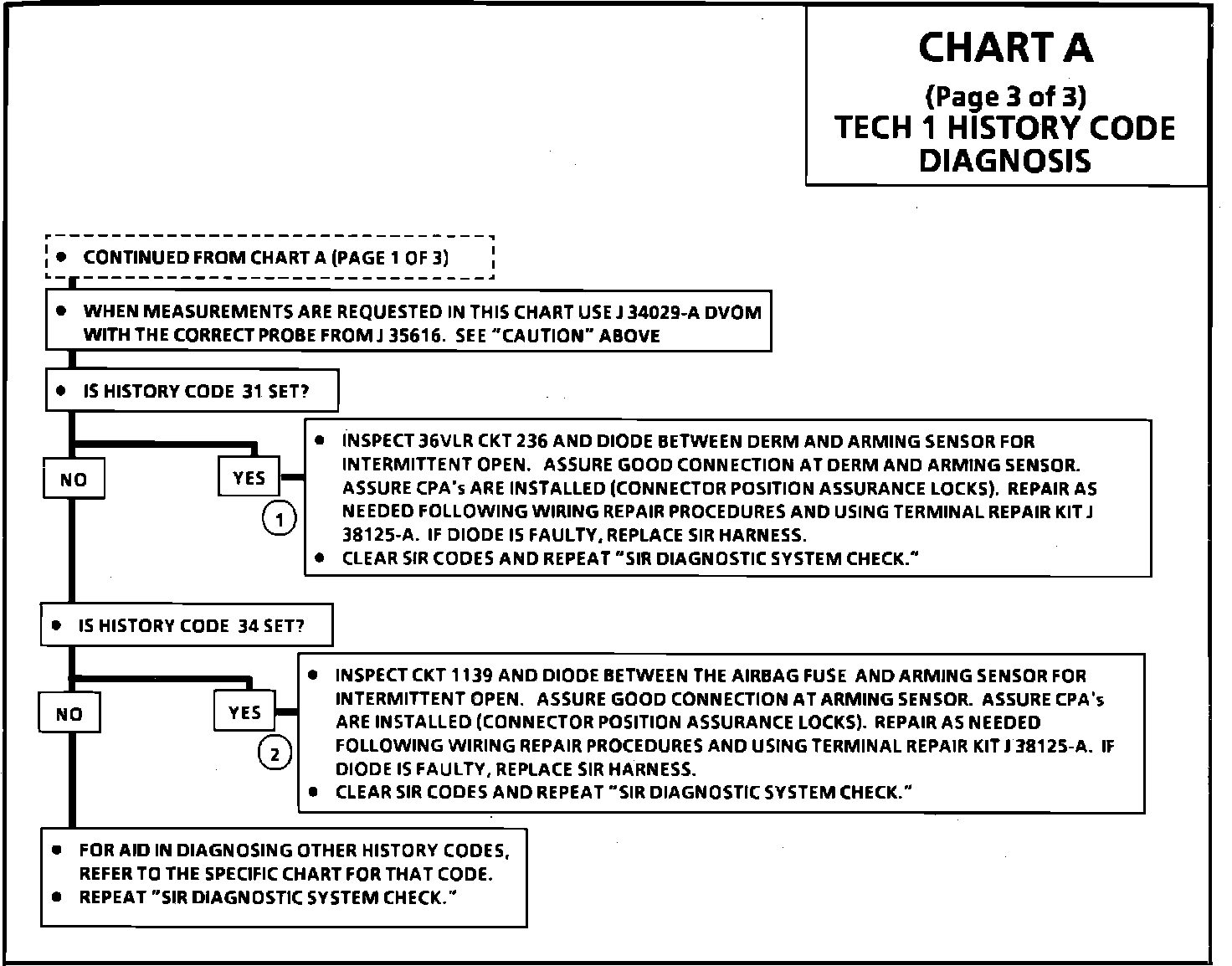

Fig. 27 Chart A, TECH 1 Tool History Code Diagnosis (Part 3 Of 3).:

Fig. 27 Chart A, TECH 1 Tool History Code Diagnosis (Part 3 Of 3).:
