Pictorial View

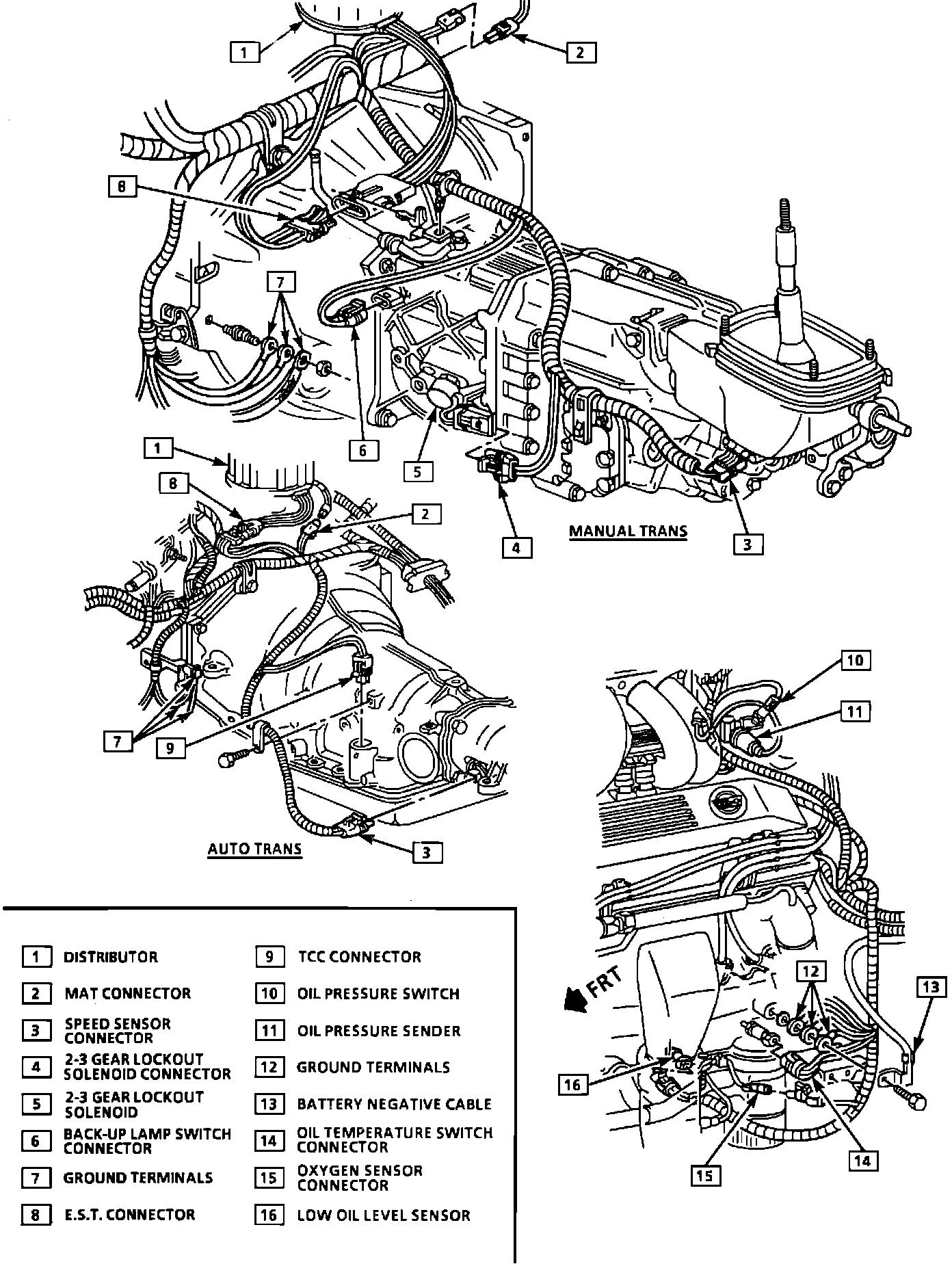

Pictorial View:

1 = DISTRIBUTOR
2 = MAT CONNECTOR
3 = SPEED SENSOR CONNECTOR
4 = 2-3 GEAR LOCKOUT SOLENOID CONNECTOR
5 = 2-3 GEAR LOCKOUT SOLENOID
6 = BACK UP LAMP SWITCH CONNECTOR
7 = GROUND TERMINALS
8 = E.S.T. CONNECTOR
9 = TCC CONNECTOR
10 = OIL PRESSURE SWITCH
11 = OIL PRESSURE SENDER
12 = GROUND TERMINALS
13 = BATTERY NEGATIVE CABLE
14 = OIL TEMPERATURE SWITCH CONNECTOR
15 = OXYGEN SENSOR CONNECTOR
16 = LOW OIL LEVEL SENSOR

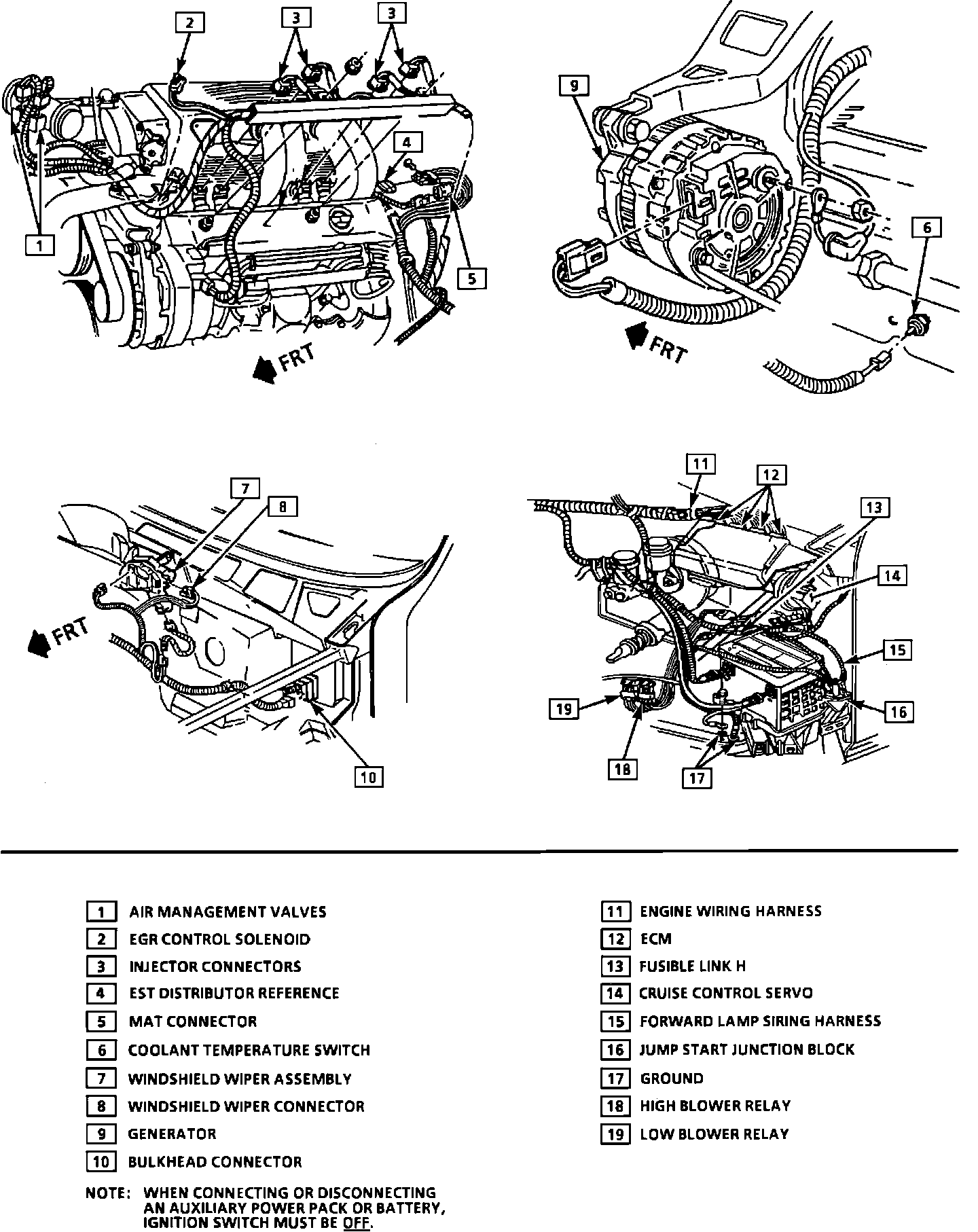

Pictorial View:

1 = AIR MANAGEMENT VALVES
2 = EGR CONTROL SOLENOID
3 = INJECTOR CONNECTORS
4 = EST DISTRIBUTOR REFERENCE
5 = MAT CONNECTOR
6 = COOLANT TEMPERATURE SWITCH
7 = WINDSHIELD WIPER ASSEMBLY
8 = WINDSHIELD WIPER CONNECTOR
9 = GENERATOR
10 = BULKHEAD CONNECTOR
11 = ENGINE WIRING HARNESS
12 = ECM
13 = FUSEABLE LINK H
14 = CRUISE CONTROL SERVO
15 = FORWARD LAMP SIRING HARNESS
16 = JUMP START JUNCTION BLOCK
17 = GROUND
18 = HIGH BLOWER RELAY
19 = LOW BLOWER RELAY

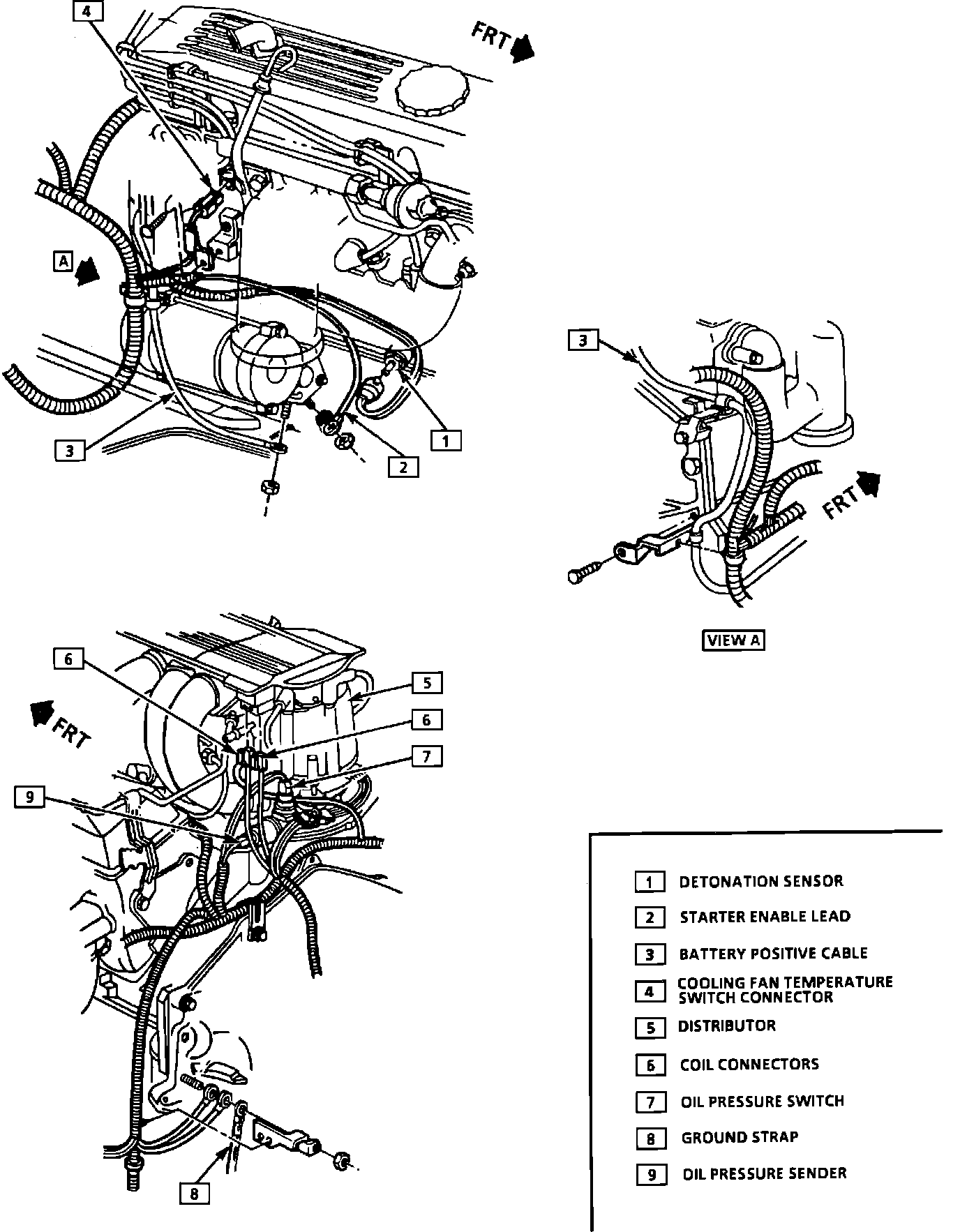

Pictorial View:

1 = DETONATION SENSOR
2 = STARTER ENABLE LEAD
3 = BATTERY POSITIVE CABLE
4 = COOLING FAN TEMP SWITCH CONNECTOR
5 = DISTRIBUTOR
6 = COIL CONNECTORS
7 = OIL PRESSURE SWITCH
8 = GROUND STRAP
9 = OIL PRESSURE SENDER

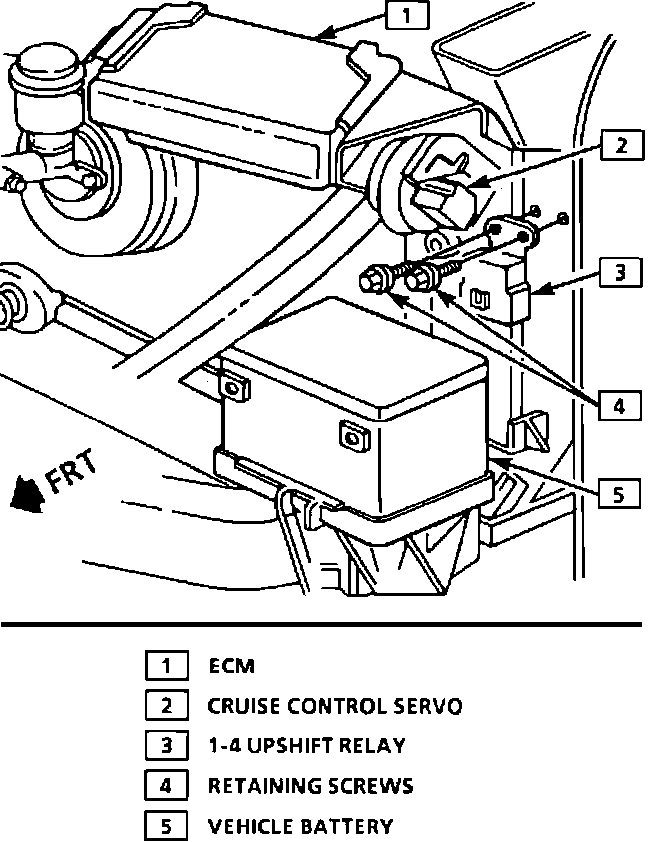

Pictorial View:

1 = ECM
2 = CRUISE CONTROL SERVO
3 = 1-4 UPSHIFT RELAY
4 = RETAINING SCREWS
5 = VEHICLE BATTERY

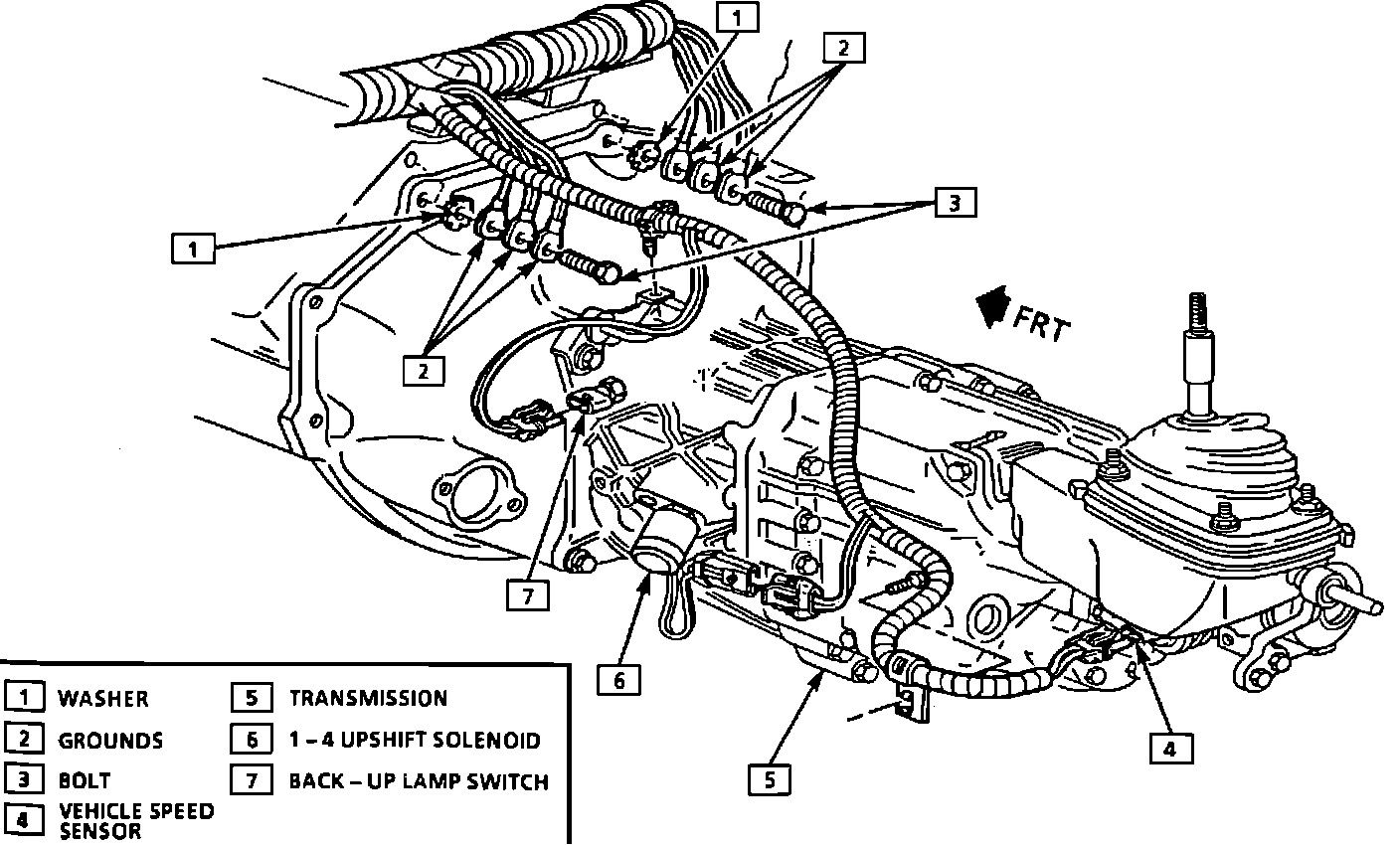

Pictorial View:

1 = WASHER
2 = GROUNDS
3 = BOLT
4 = VEHICLE SPEED SENSOR
5 = TRANSMISSION
6 = 1-4 UPSHIFT SOLENOID
7 = BACK UP LAMP SWITCH

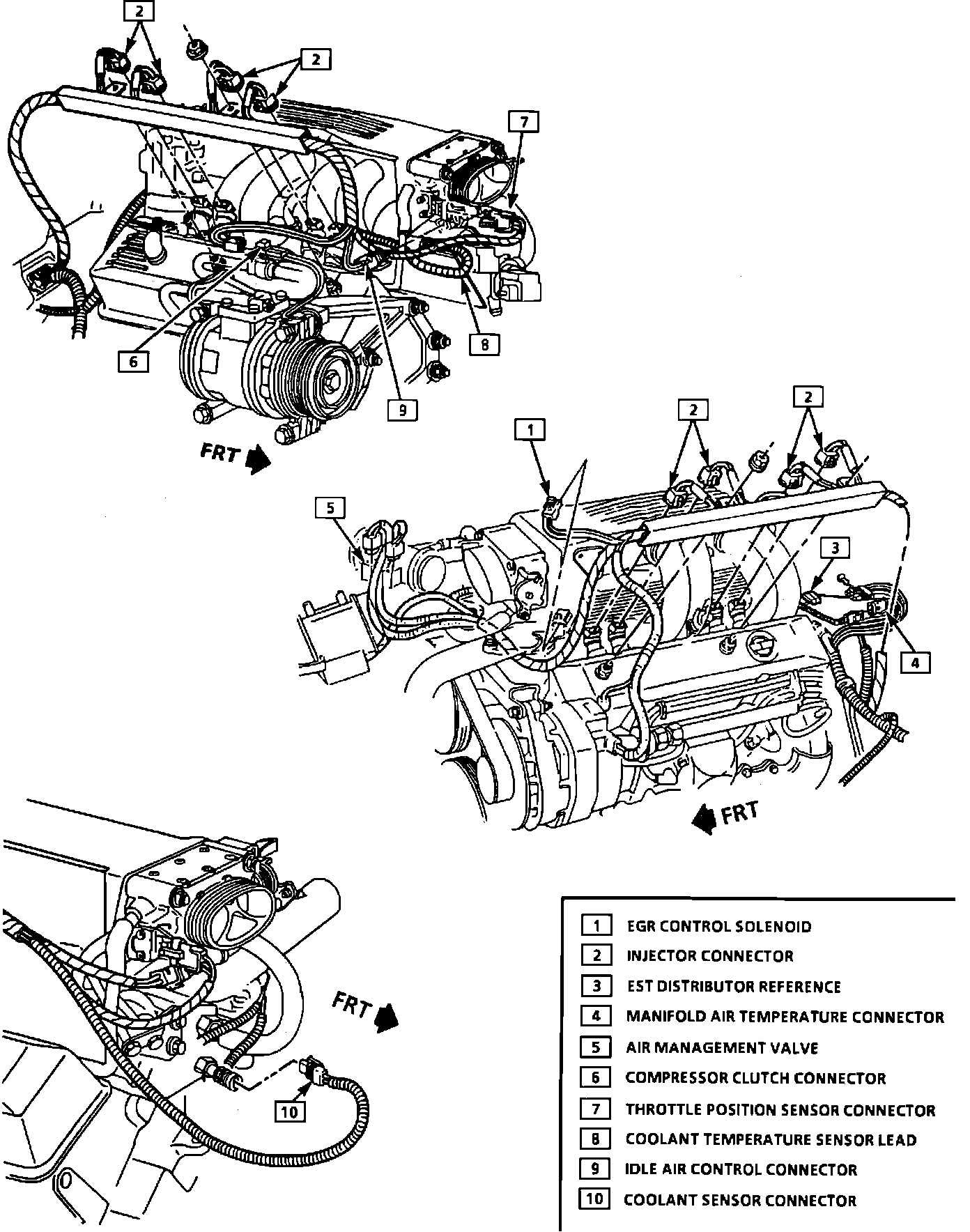

Pictorial View:

1 = EGR CONTROL SOLENOID
2 = INJECTOR CONNECTOR
3 = EST DISTRIBUTOR REFERENCE
4 = MANIFOLD AIR TEMPERATURE CONNECTOR
5 = AIR MANAGEMENT VALVE
6 = COMPRESSOR CLUTCH CONNECTOR
7 = THROTTLE POSITION SENSOR CONNECTOR
8 = COOLANT TEMPERATURE SENSOR LEAD
9 = IDLE AIR CONTROL CONNECTOR
10 = COOLANT SENSOR CONNECTOR
