Fuel Rail: Description and Operation

Fuel Rail Assembly - Model R810:

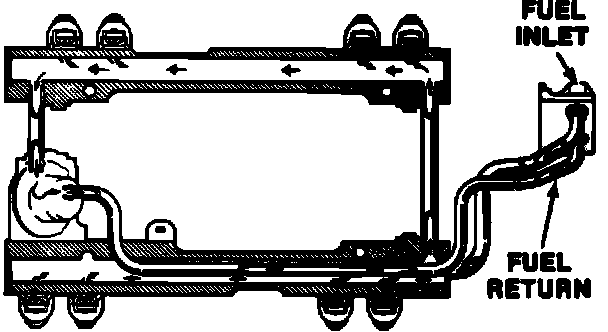

Fuel Rail Flow Diagram:

The fuel rail assembly is mounted to the intake manifold and performs several jobs. It positions the injectors in the intake manifold, it distributes fuel evenly to the injectors, and it integrates the fuel pressure regulator into the fuel metering system.
