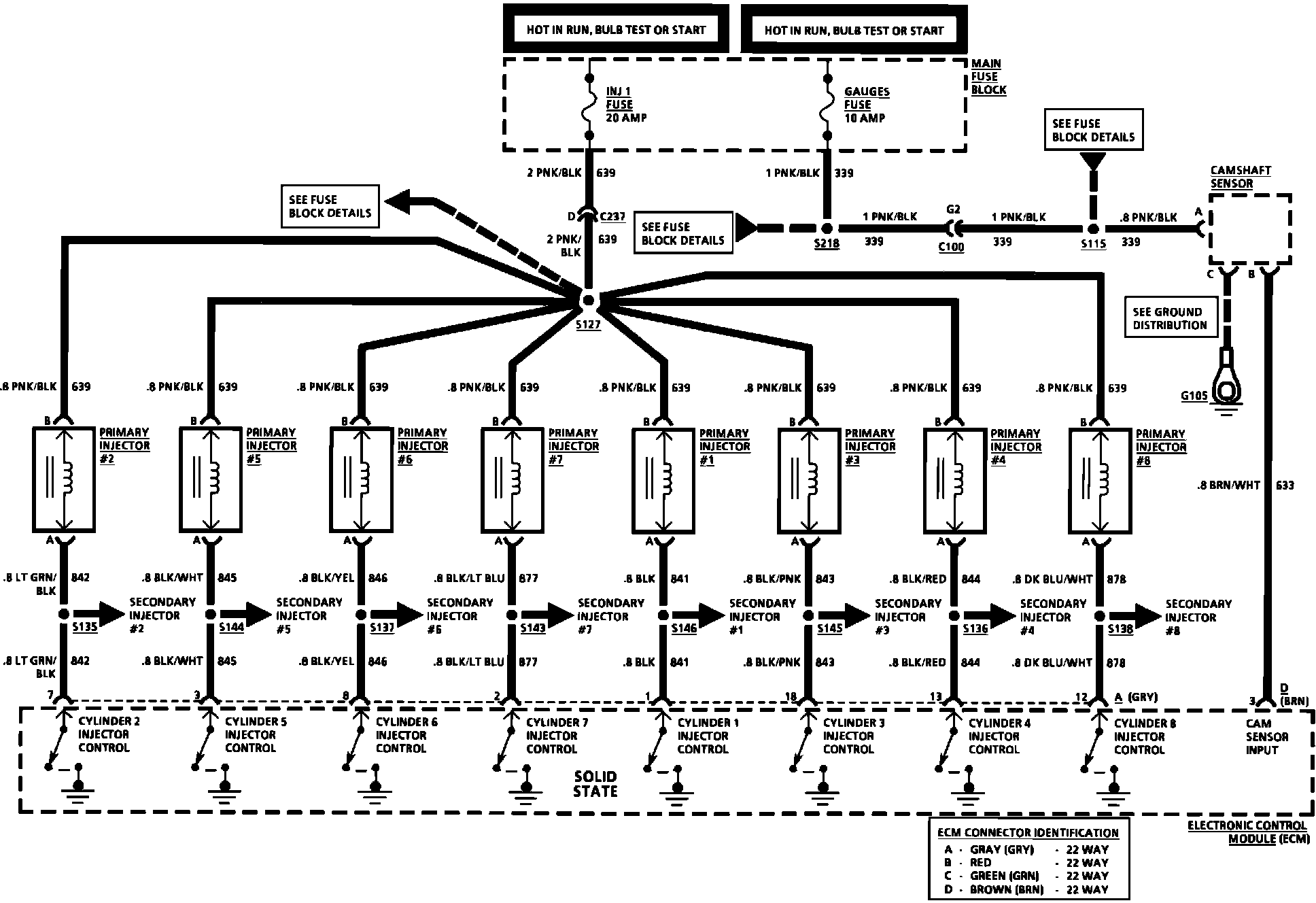

Primary Injector Circuit
Primary Injector Circuit
Fuel Control And Fuel Delivery: Primary Injector Circuit:
