Fuel Pump Circuit
Fuel Pump Circuit

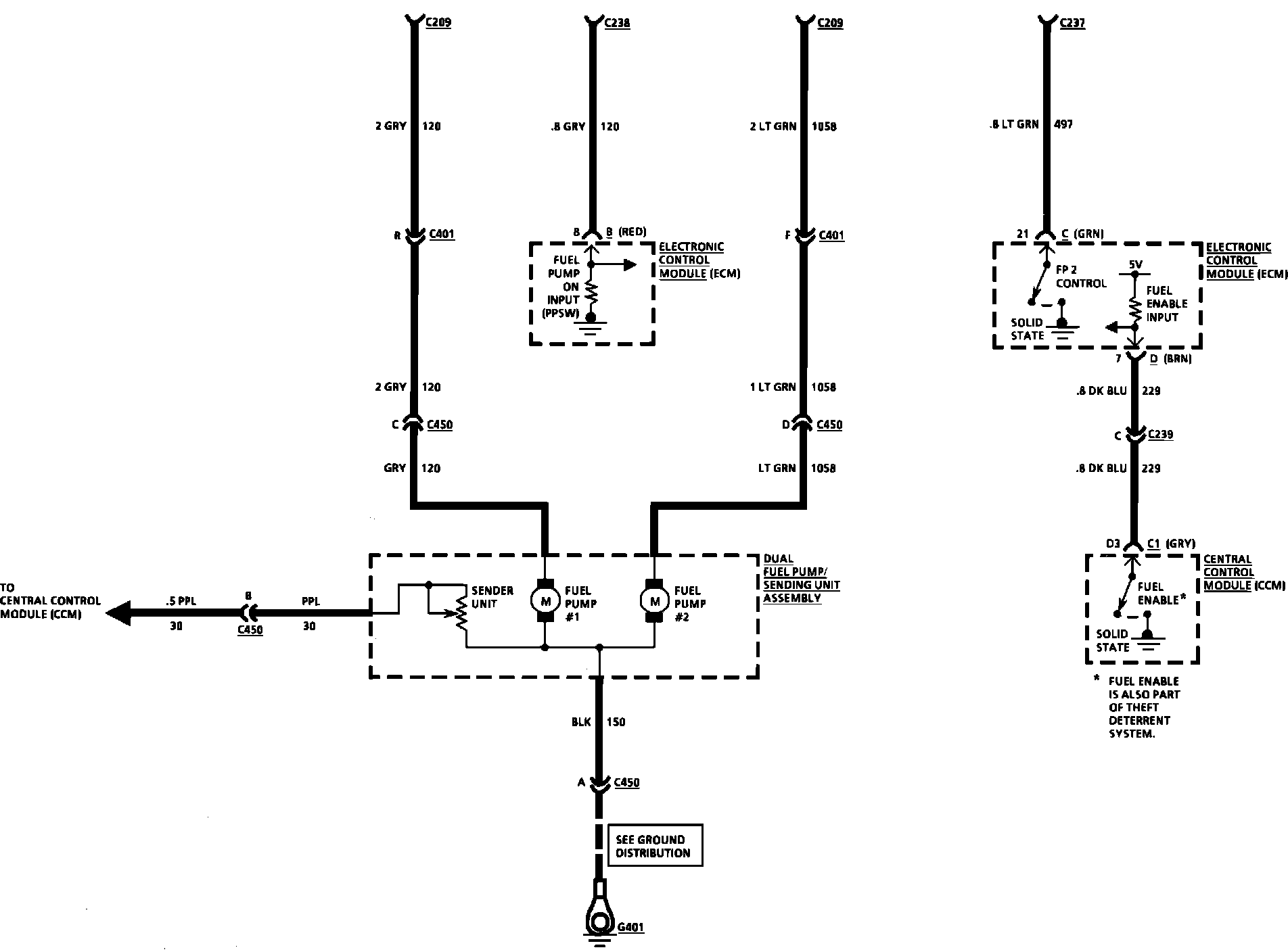

Fuel Control And Fuel Delivery: Fuel Pump Circuit:
Fuel Control And Fuel Delivery: Fuel Pump Circuit:
