Home
>>
Chevrolet
>>
1991
>>
Corvette V8-350 5.7L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>

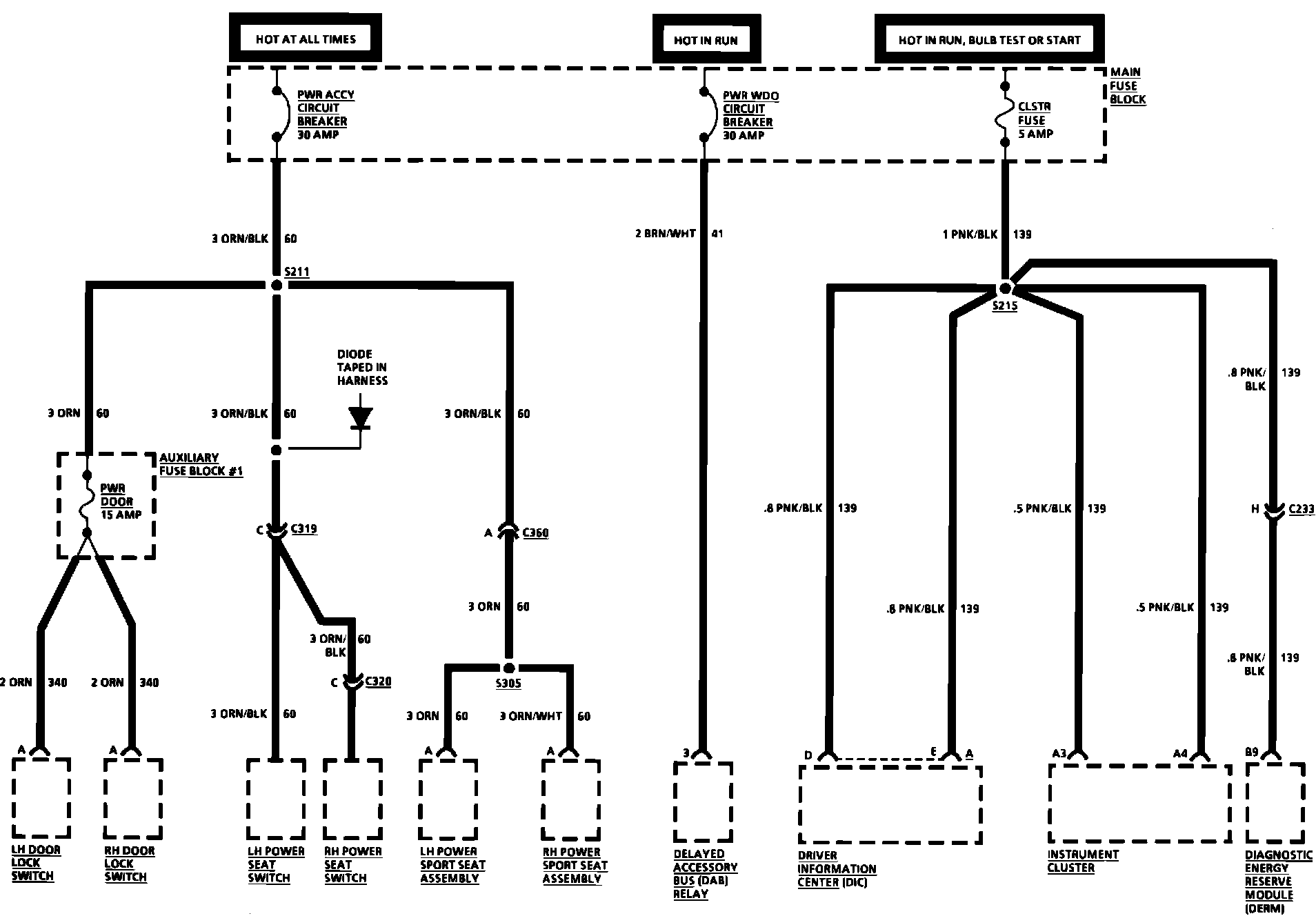

Power ACCY, Power Window Circuit Breaker & Cluster Fuse
Power ACCY, Power Window Circuit Breaker & Cluster Fuse
PWR ACCY And PWR WDO Circuit Breakers And CLSTR Fuse:
