Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>

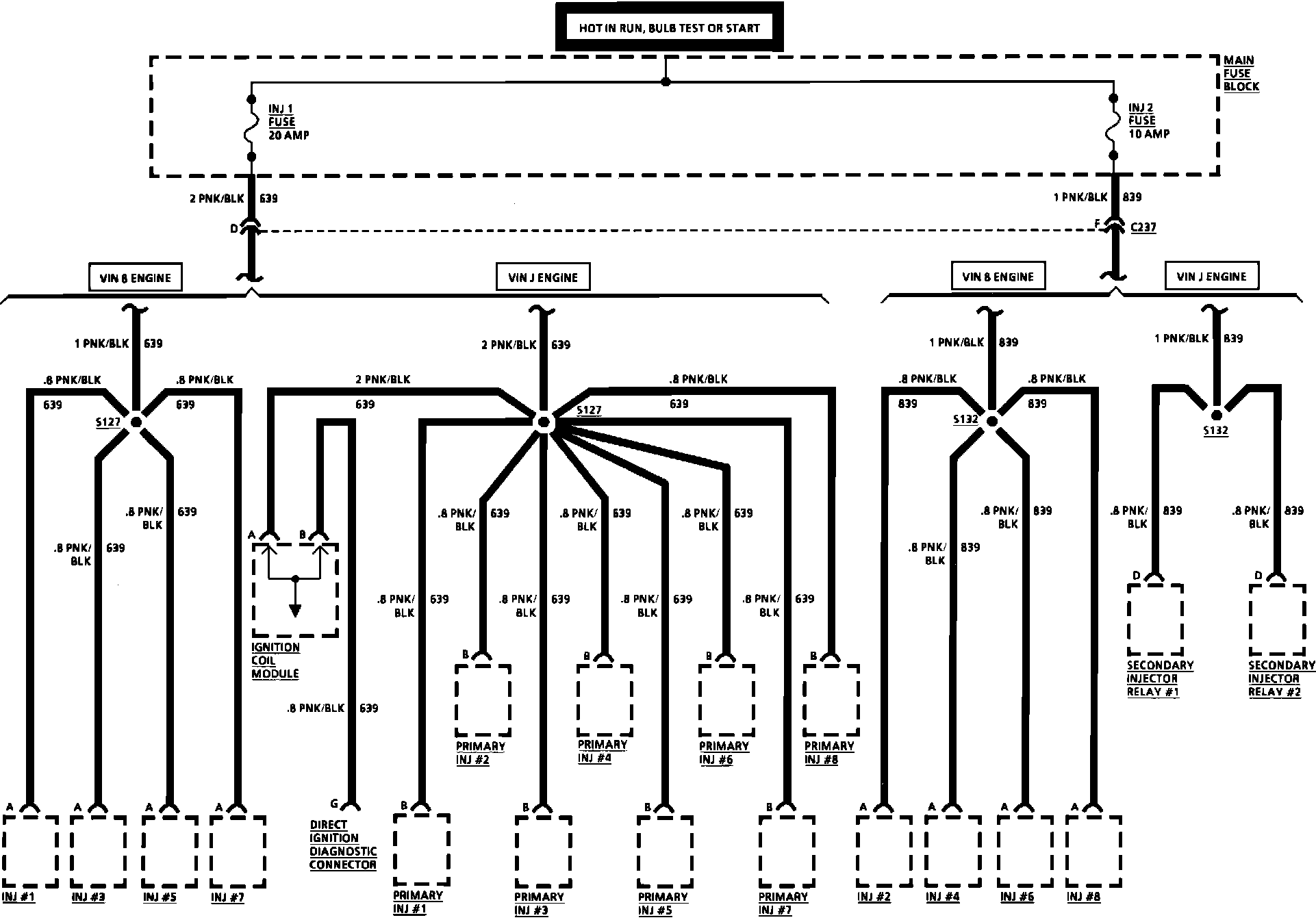

Injector 1 & 2 Fuses
Injector 1 & 2 Fuses
Injector 1 And 2 Fuse:
