Chevrolet
>>
1991
>>
Corvette V8-350 5.7L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>

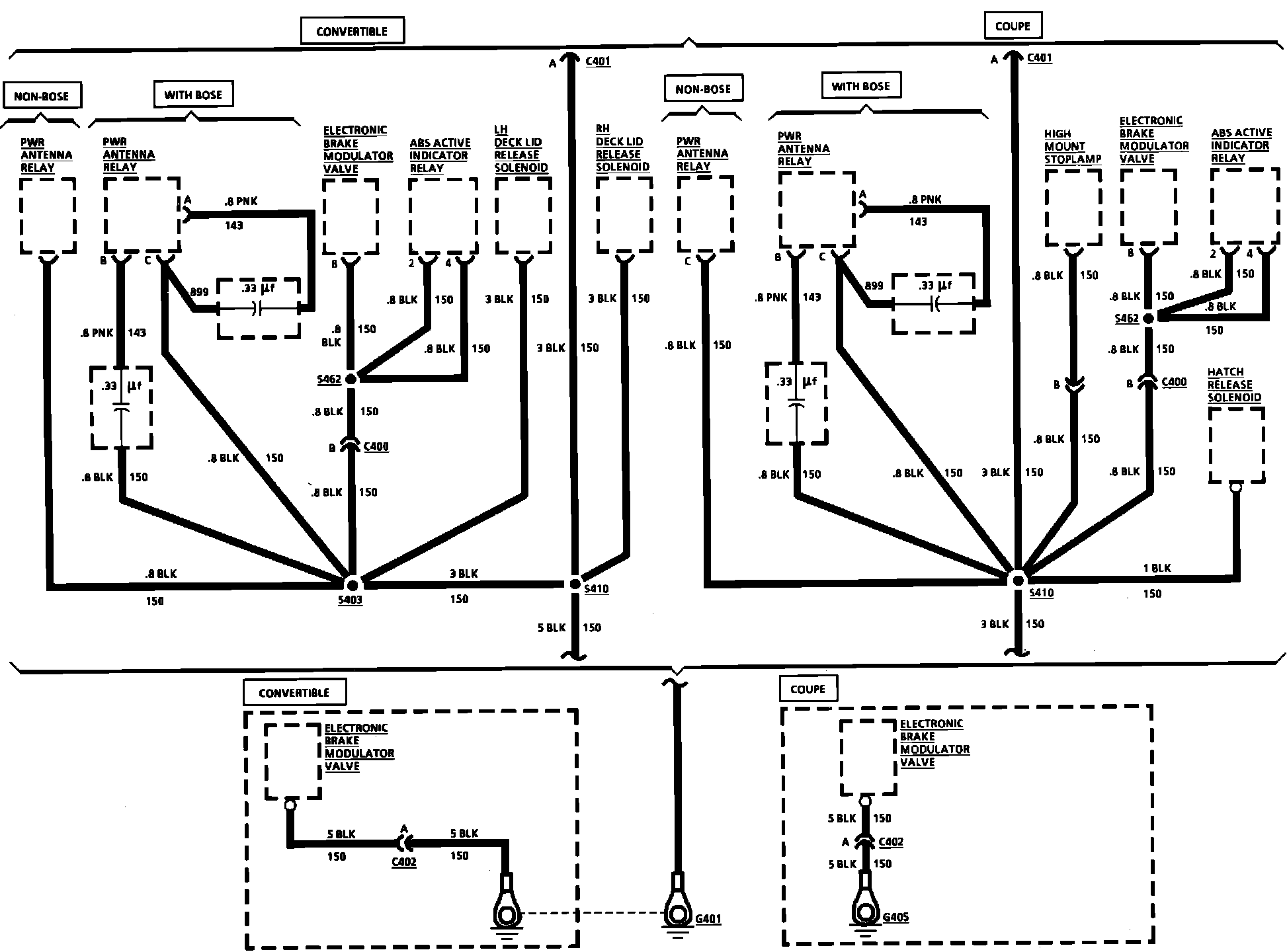

G401, G405
G401, G405

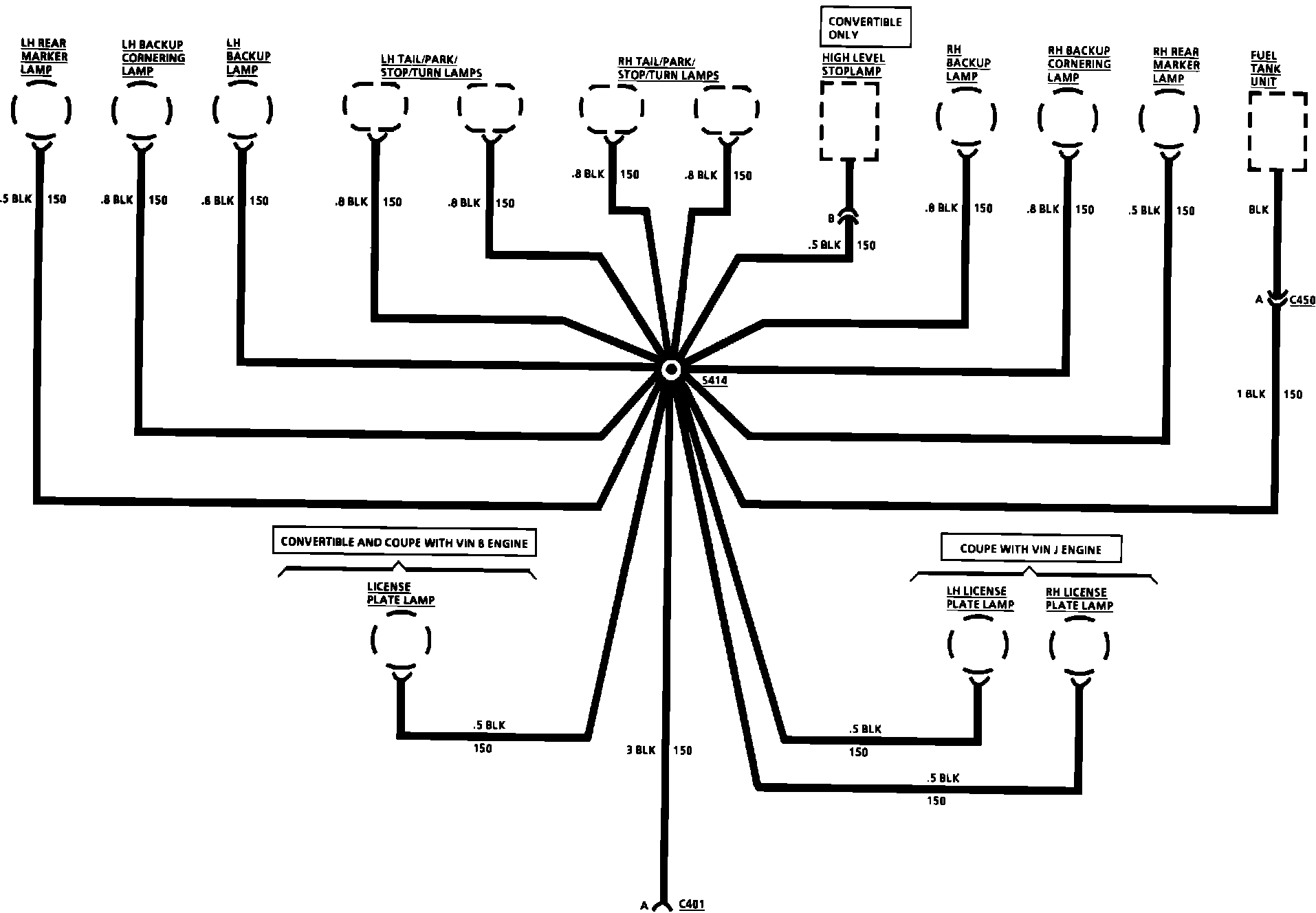

G401, G405 - Rear Lights:
G401, G405 - Rear Lights:
