Chevrolet
>>
1991
>>
Corvette V8-350 5.7L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G201 and G202
G201 and G202

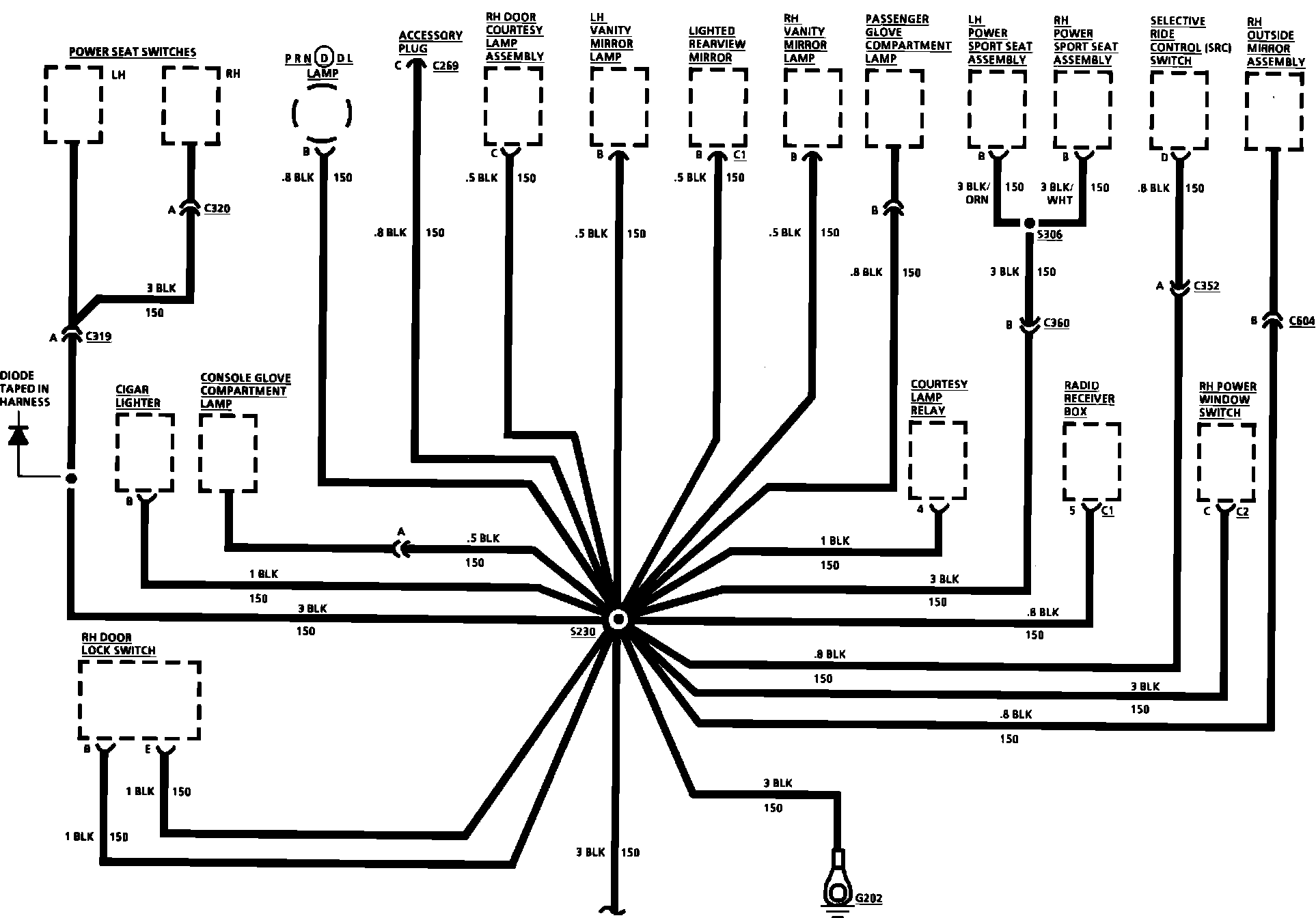

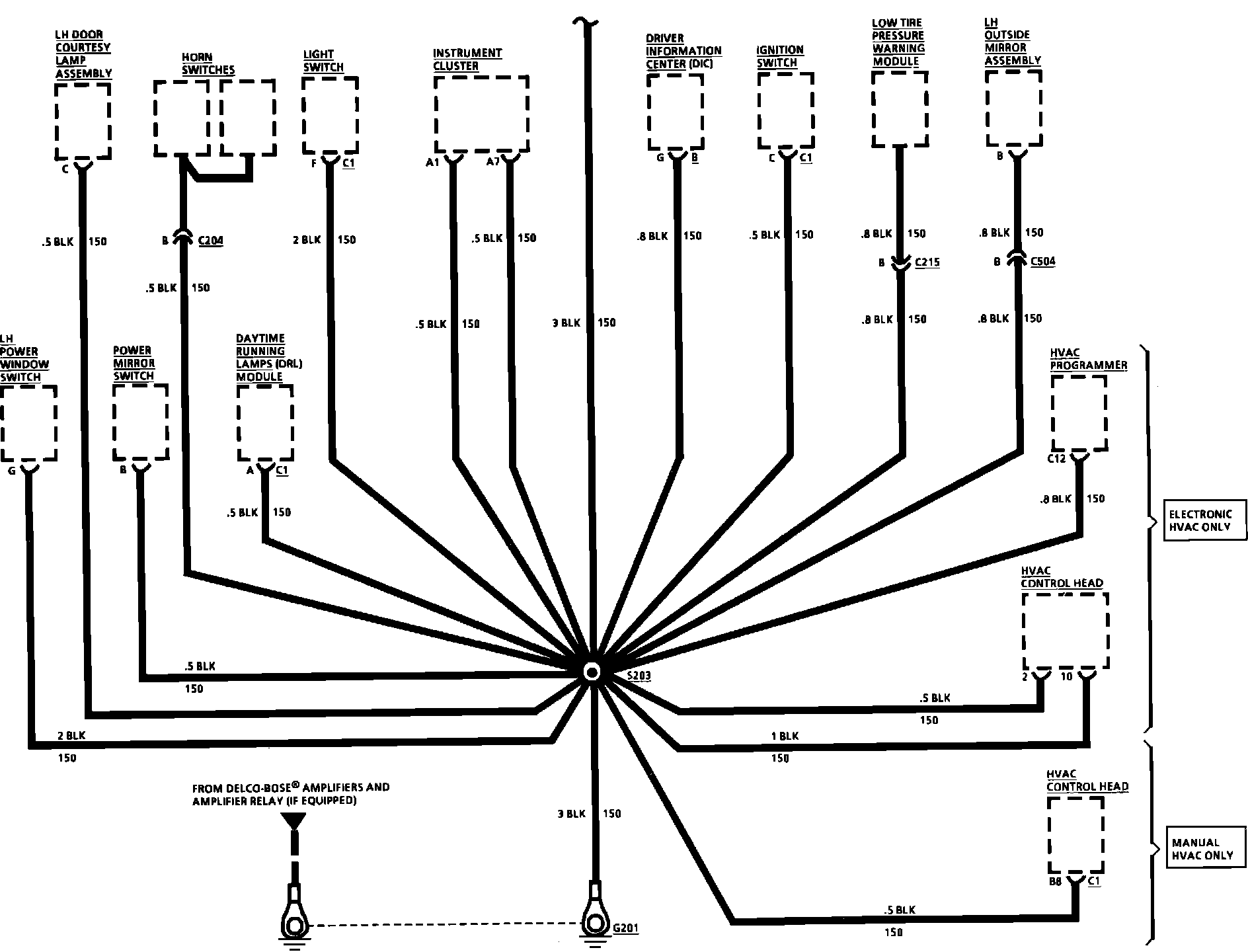

G201, G202:
G201, G202:
