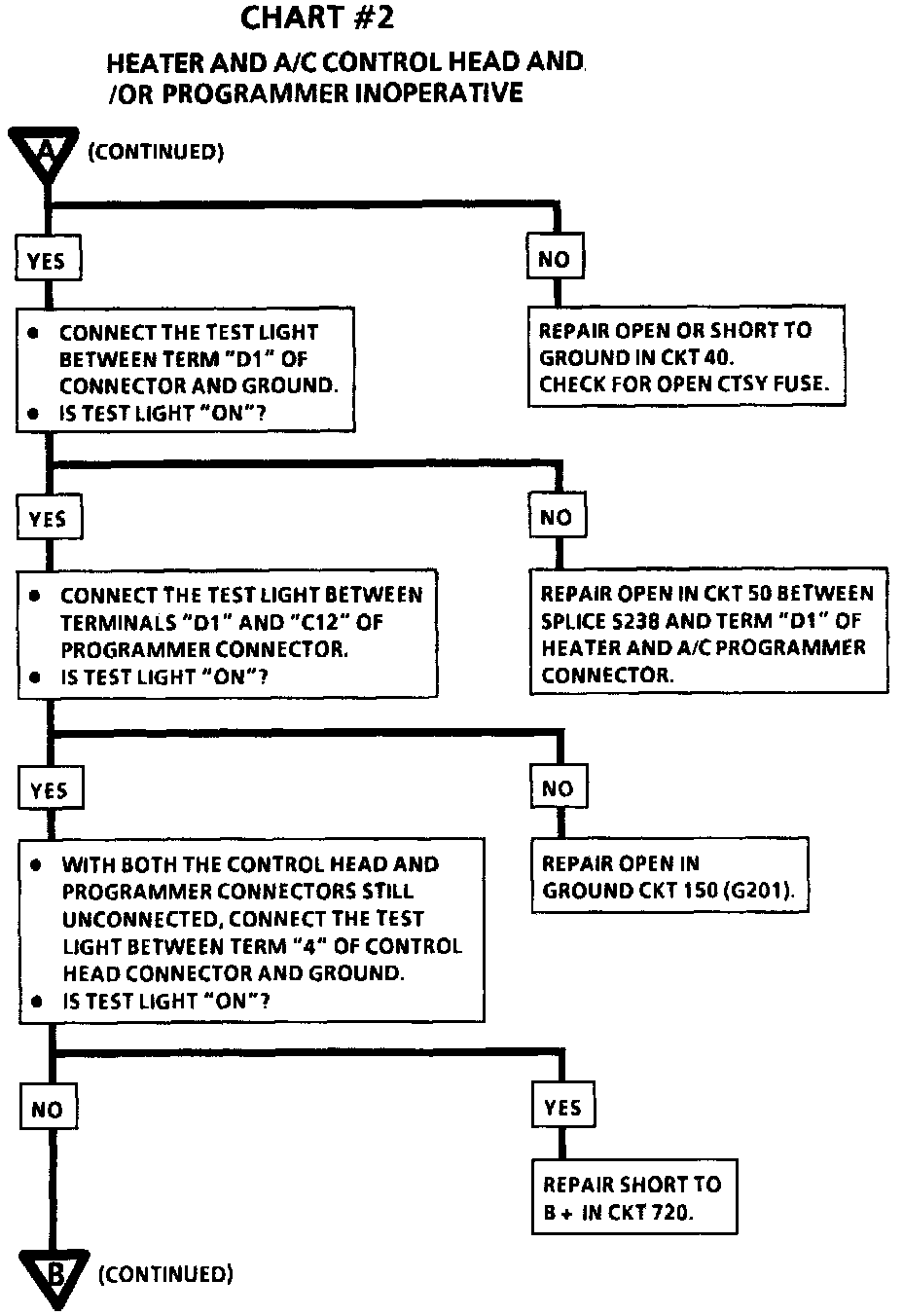

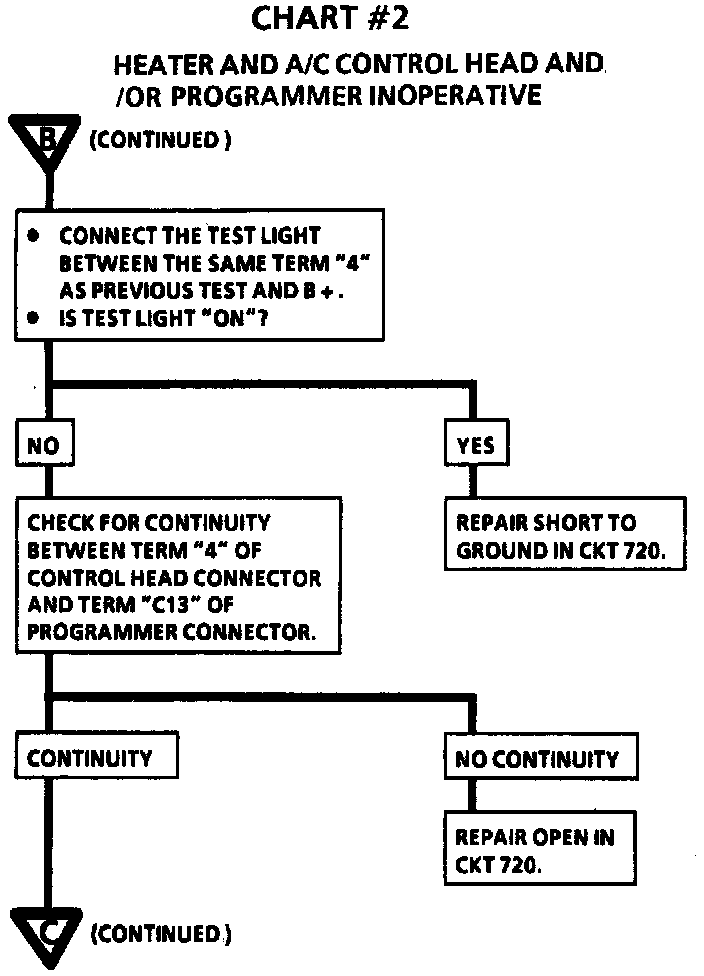

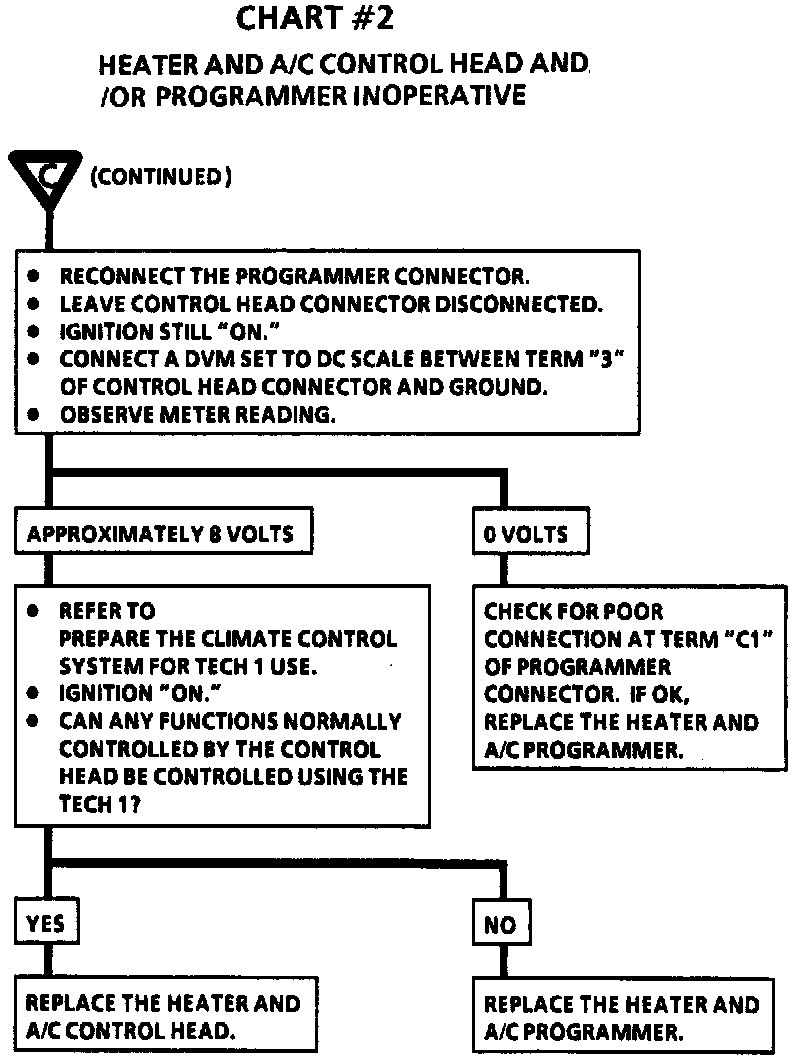

Chart 2 Heater & A/C Control Head &/or Programmer Inoperative

1 Of 4:

2 Of 4:

3 Of 4:

4 Of 4:

Important:
^ Disconnect the negative battery cable for 15 seconds before performing Chart # 2 as this may correct the problem.
