Home
>>
Chevrolet
>>
1991
>>
Corvette V8-350 5.7L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
Manual Air Conditioning
>>
Compressor Controls
Compressor Controls

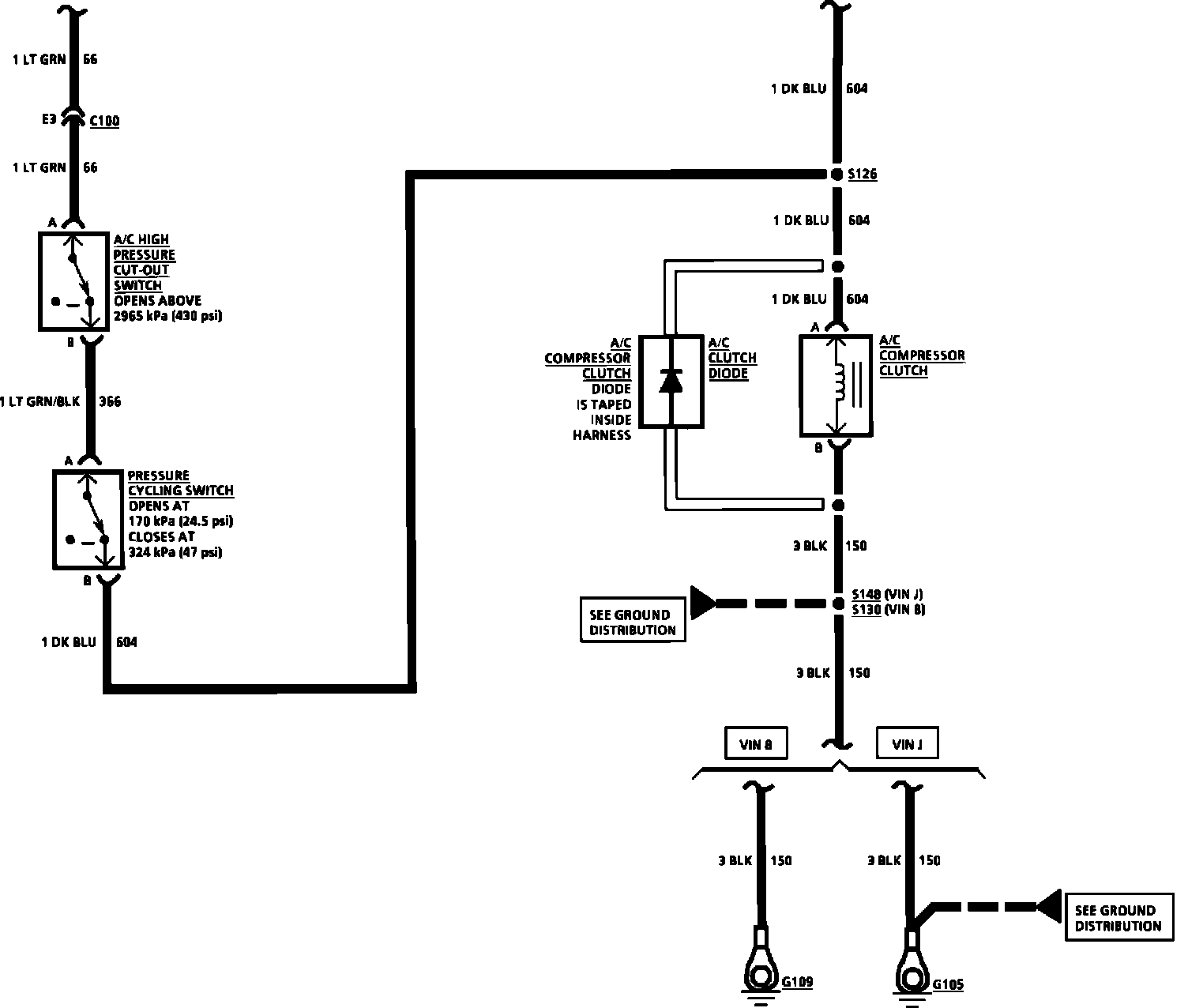

Compressor Controls - C60, Manual:
Compressor Controls - C60, Manual:
