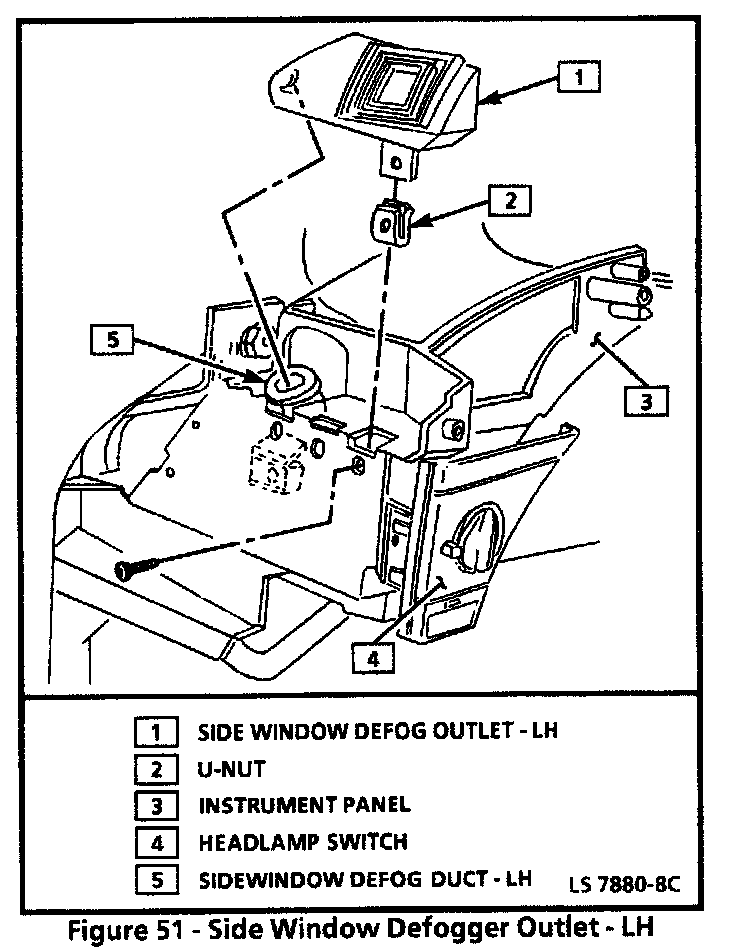

Side Window Defogger Outlet - LH

SIDE WINDOW DEFOGGER OUTLET - LH









Remove or Disconnect
1. Headlamp switch trim plate.
2. Upper trim pad.
3. Screw mounting outlet assembly to outlet duct and instrument panel.


Install or Connect
1. Defogger outlet to outlet duct and instrument panel.
2. Upper trim pad.
3. Switch trim plate.
