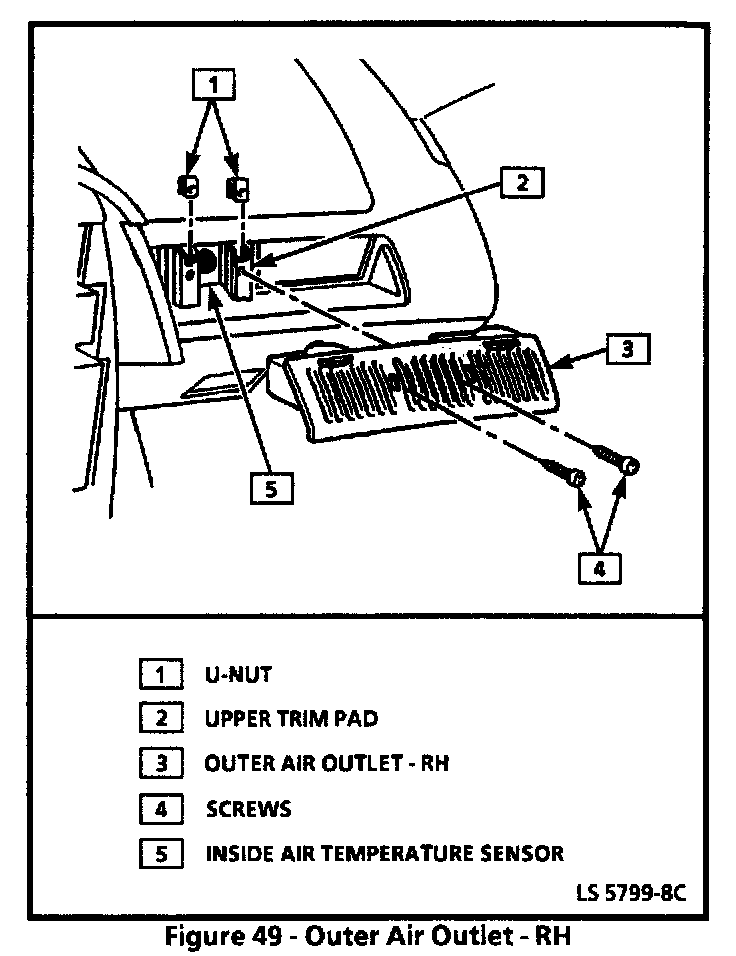

Outer Air Outlets - RH and LH

OUTER AIR OUTLETS - RH AND LH





Remove or Disconnect
1. Screws from grill of outlet to I/P.
2. Pull outlet straight out of I/P panel.

Install or Connect
1. Align air outlet to upper trim pad opening.
2. Screws to I/P.
Tighten Screws mounting outer air outlet 3.3 Nm (29 in. lb.)
