Corvette V8-350 5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Trunk Lamp
>>
Coupe
Coupe

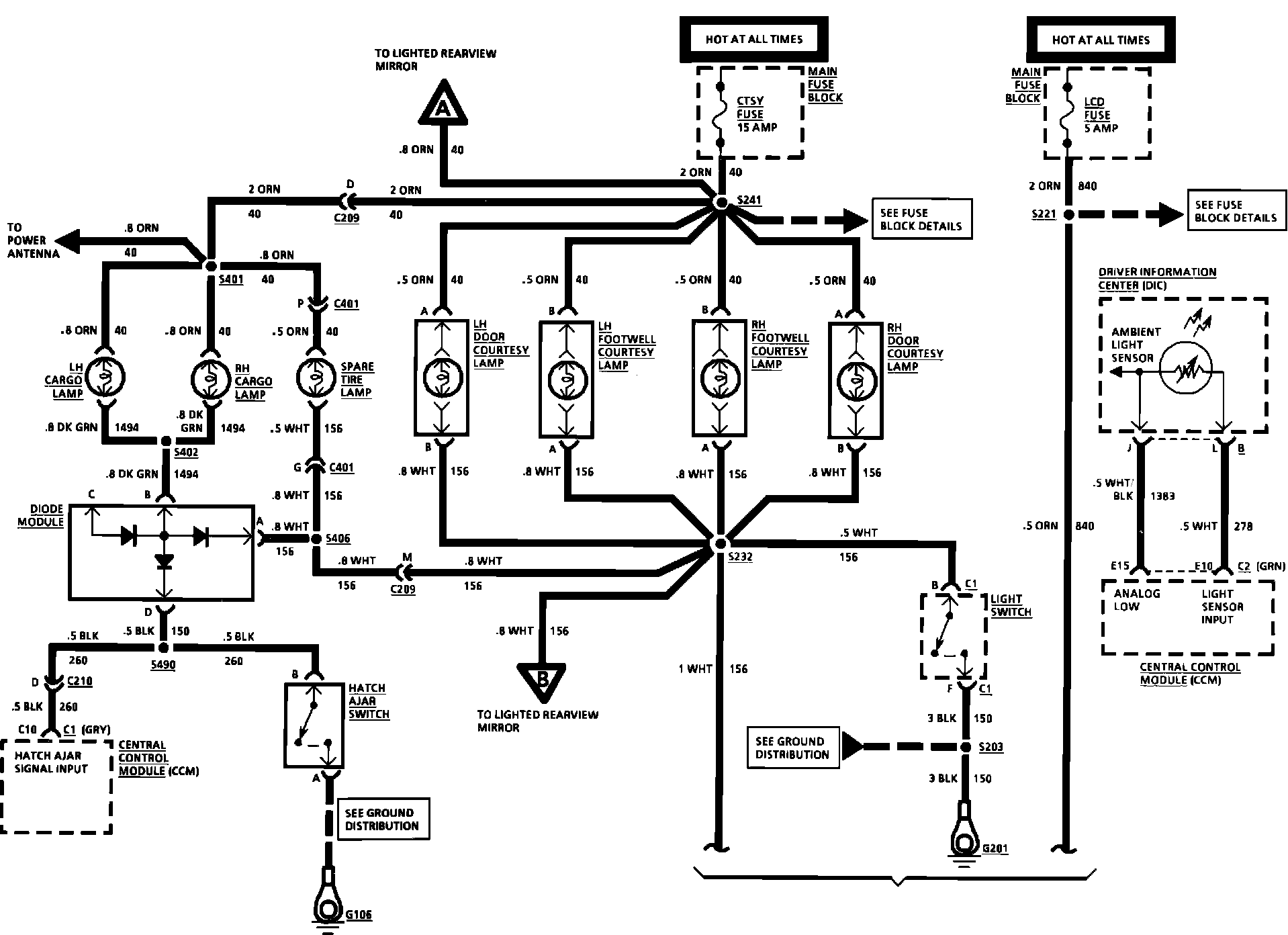

Courtesy/Spare Tire/Cargo - Coupe:
