Home
>>
Chevrolet
>>
1991
>>
Corvette V8-350 5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seats
>>
Reclining
>>
RH Seat
RH Seat

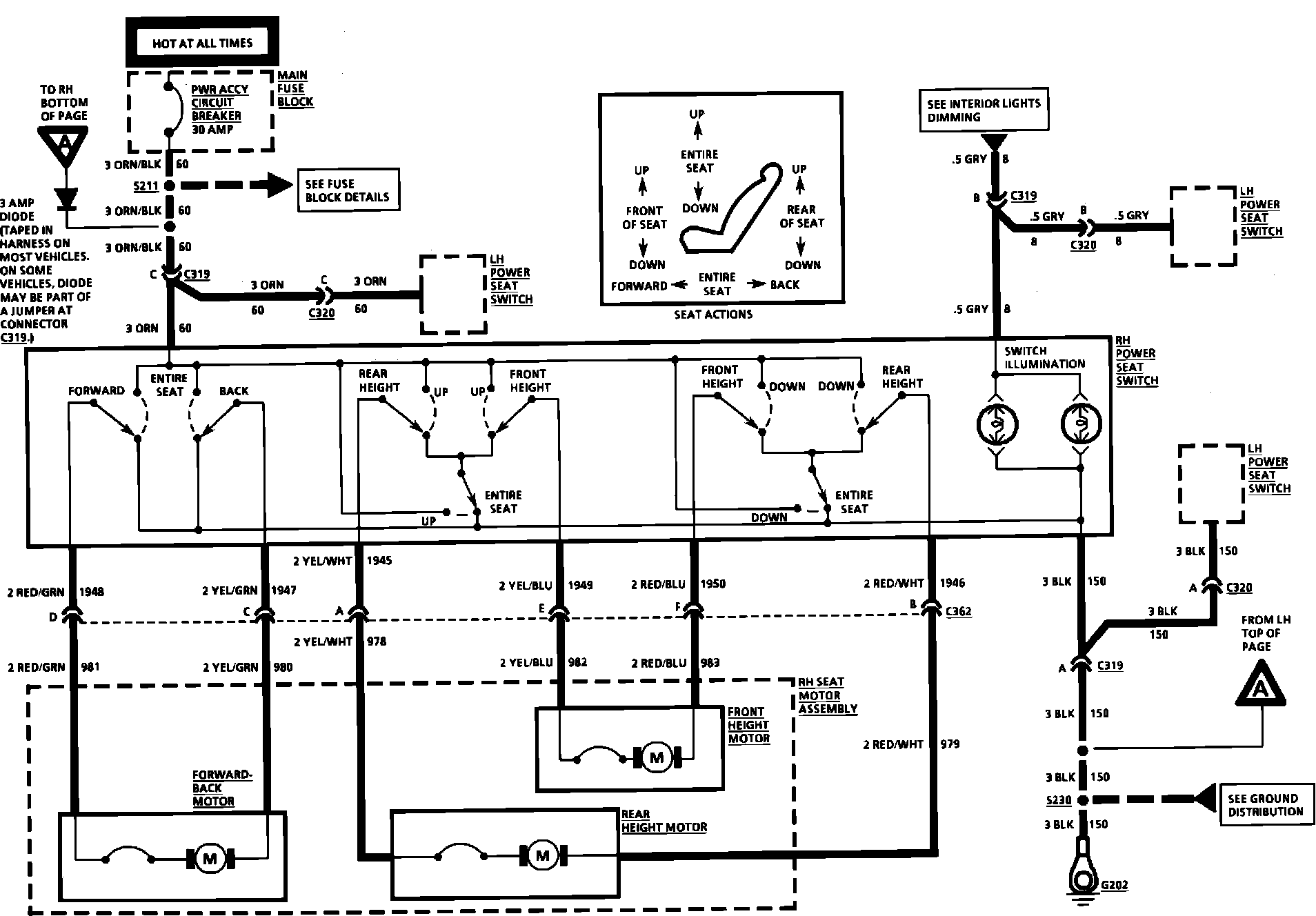

6-Way: RH Seat:
