Chevrolet
>>
1991
>>
Corvette V8-350 5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seats
>>
Lumbar Support
>>
Right Hand
Right Hand

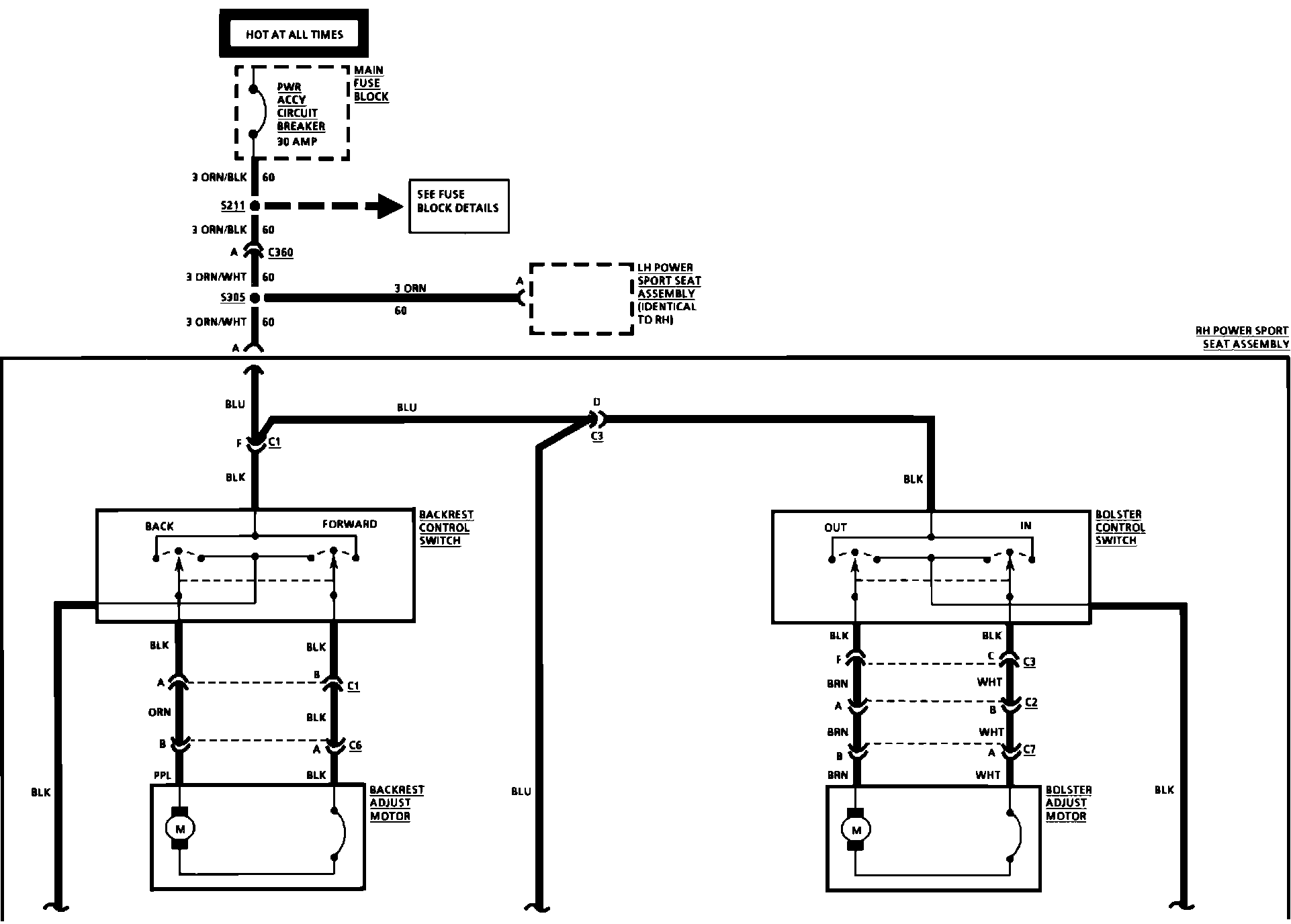

Lumbar Support (Righthand):

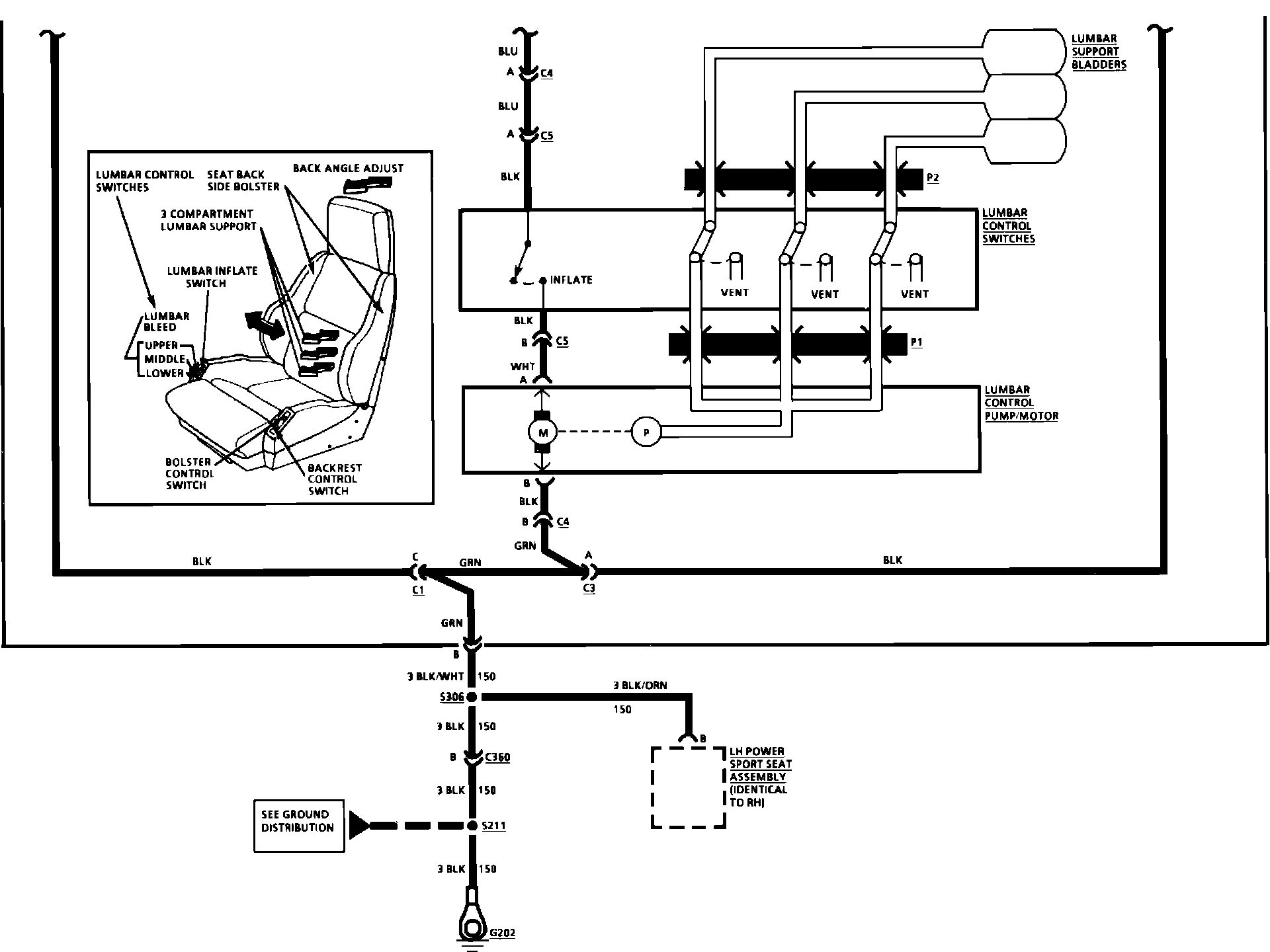

Lumbar Support (Righthand):

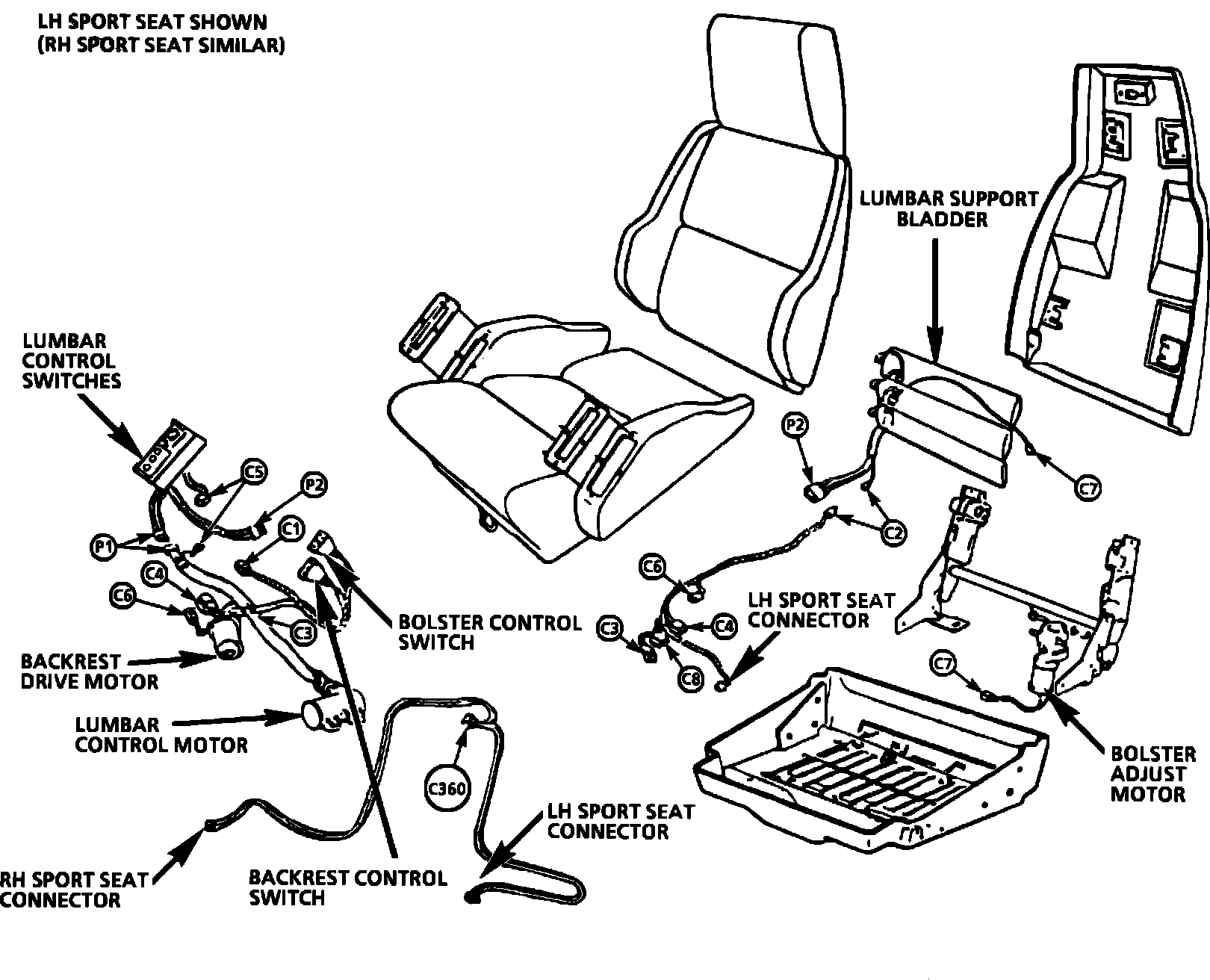

Lumbar Support - Left And Right:
