Chevrolet
>>
1991
>>
Corvette V8-350 5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Manual Transmission/Transaxle Controls
>>
Sequential Fuel Injection
Sequential Fuel Injection

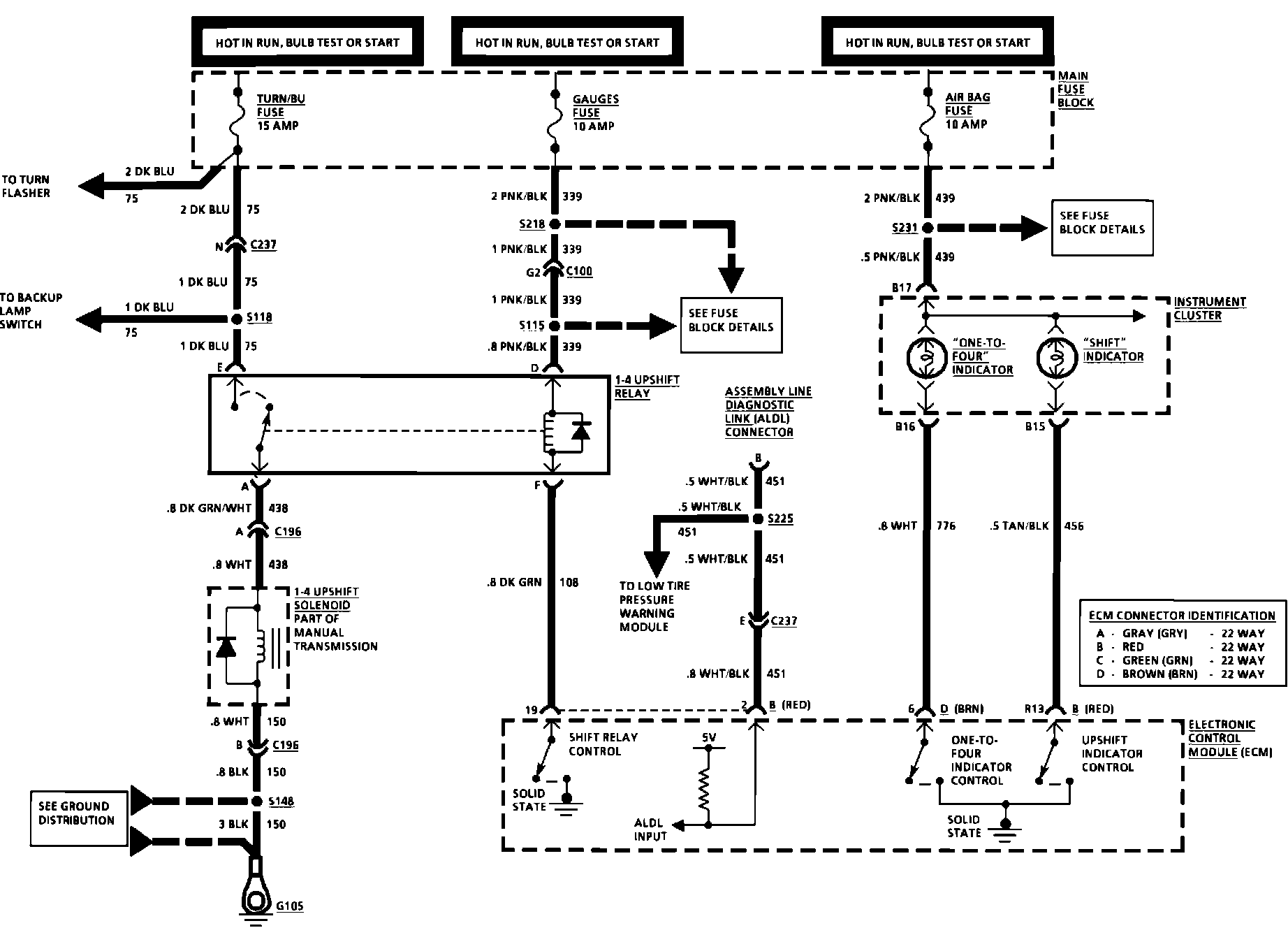

1-4 Upshift Solenoid, Manual Transmission:
