Ignition, Detonation & "Service Engine Soon" Indicator
Ignition, Detonation & "Service Engine Soon" Indicator

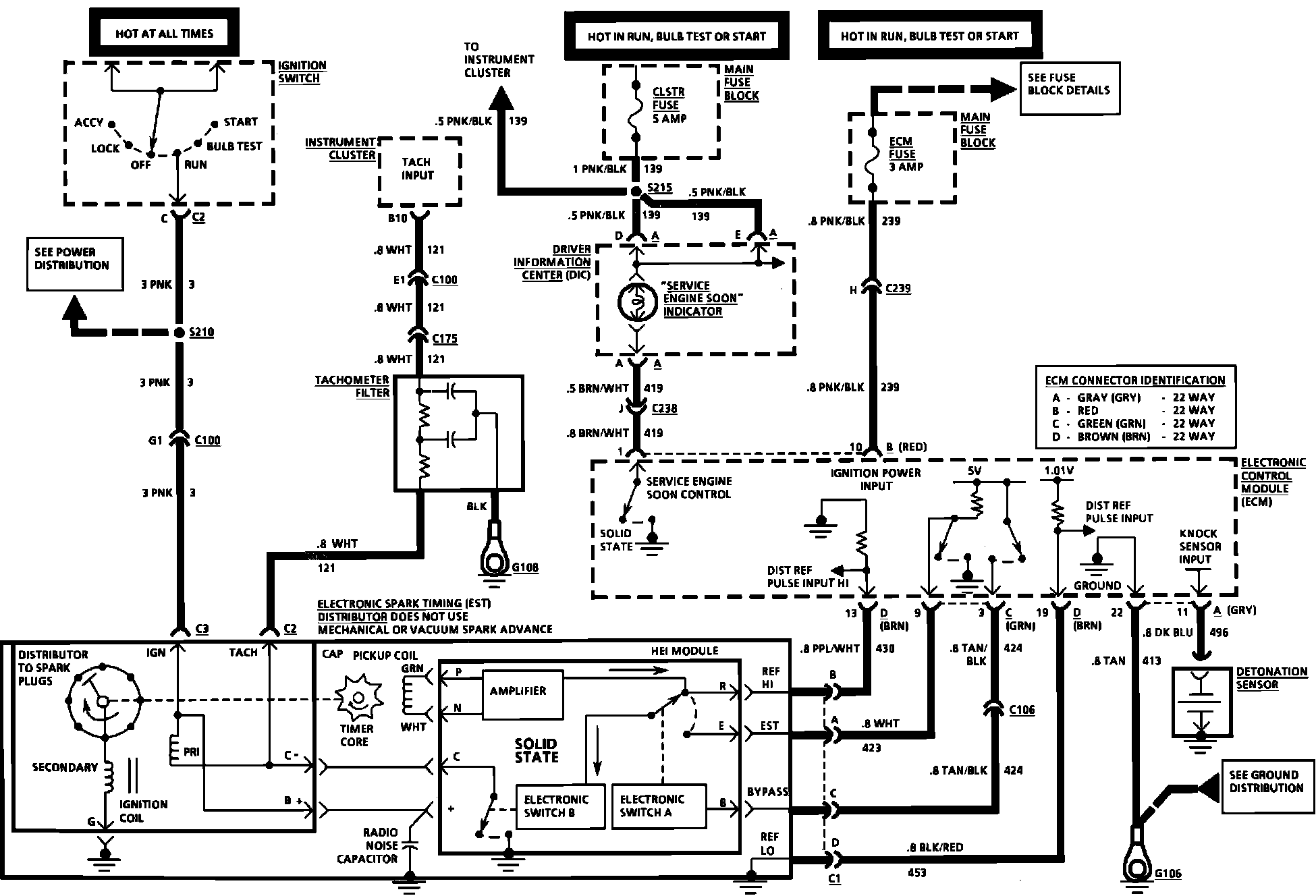

Ignition, Detonation Sensor And "Service Engine Soon" Indicator:
