Home
>>
Chevrolet
>>
1991
>>
Corvette V8-350 5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
Manual Air Conditioning
>>
Air Delivery and Temperature Controls
Air Delivery and Temperature Controls

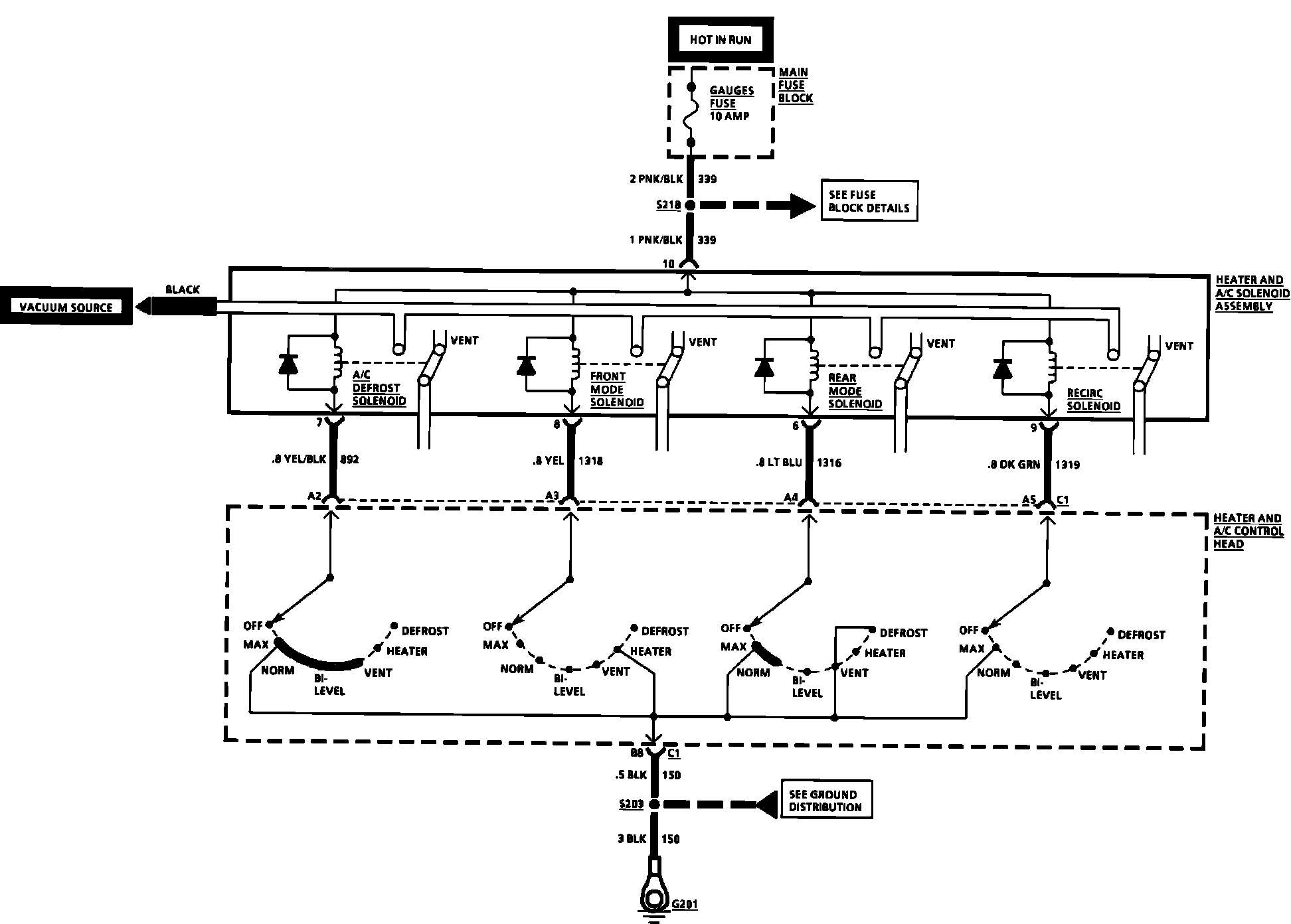

Air Delivery And Temperature Control - C60, Manual:

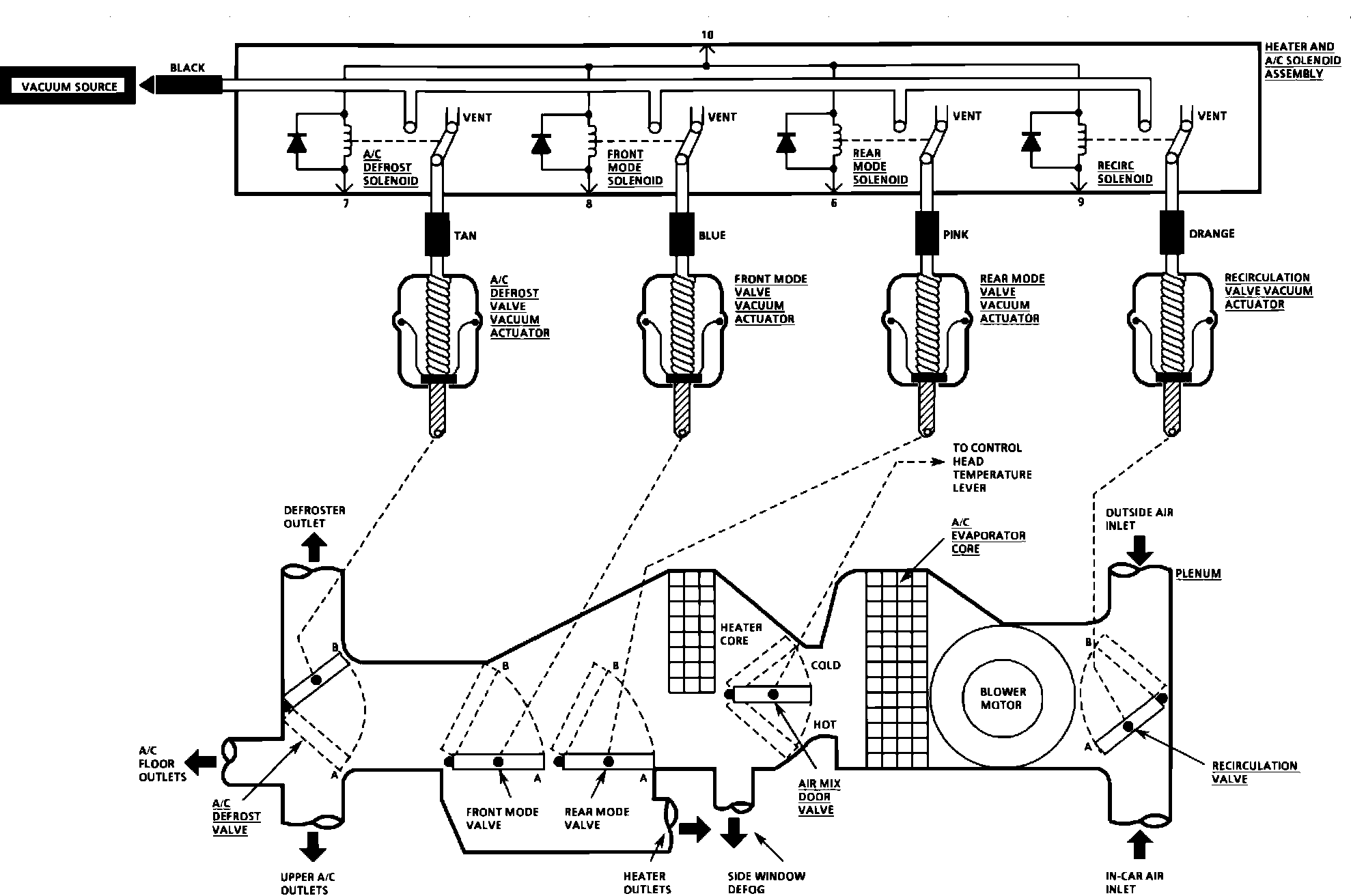

Air Conditioning, Air Delivery (Manual):
