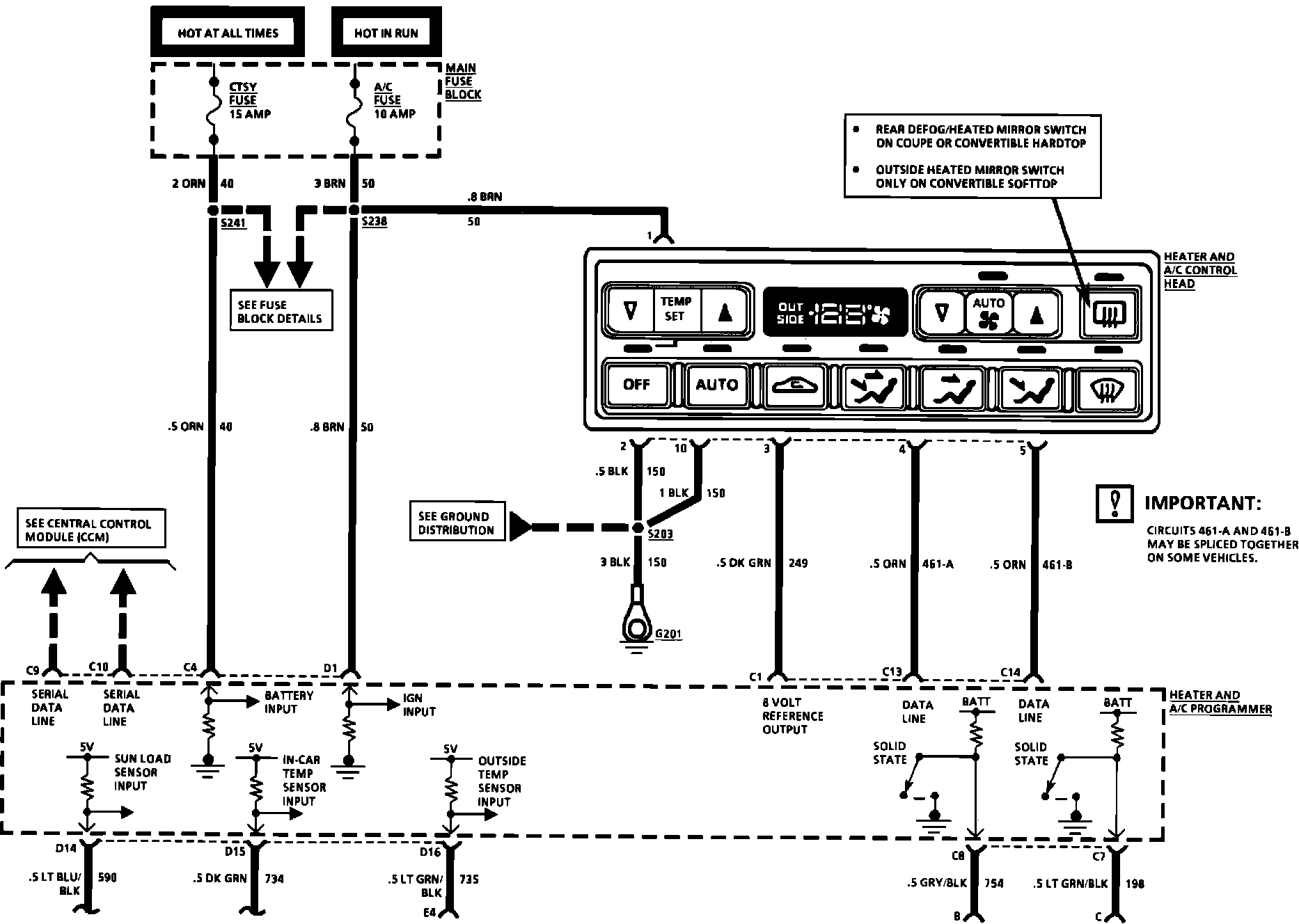

Air Delivery And Temperature Controls - C68, Electronic:

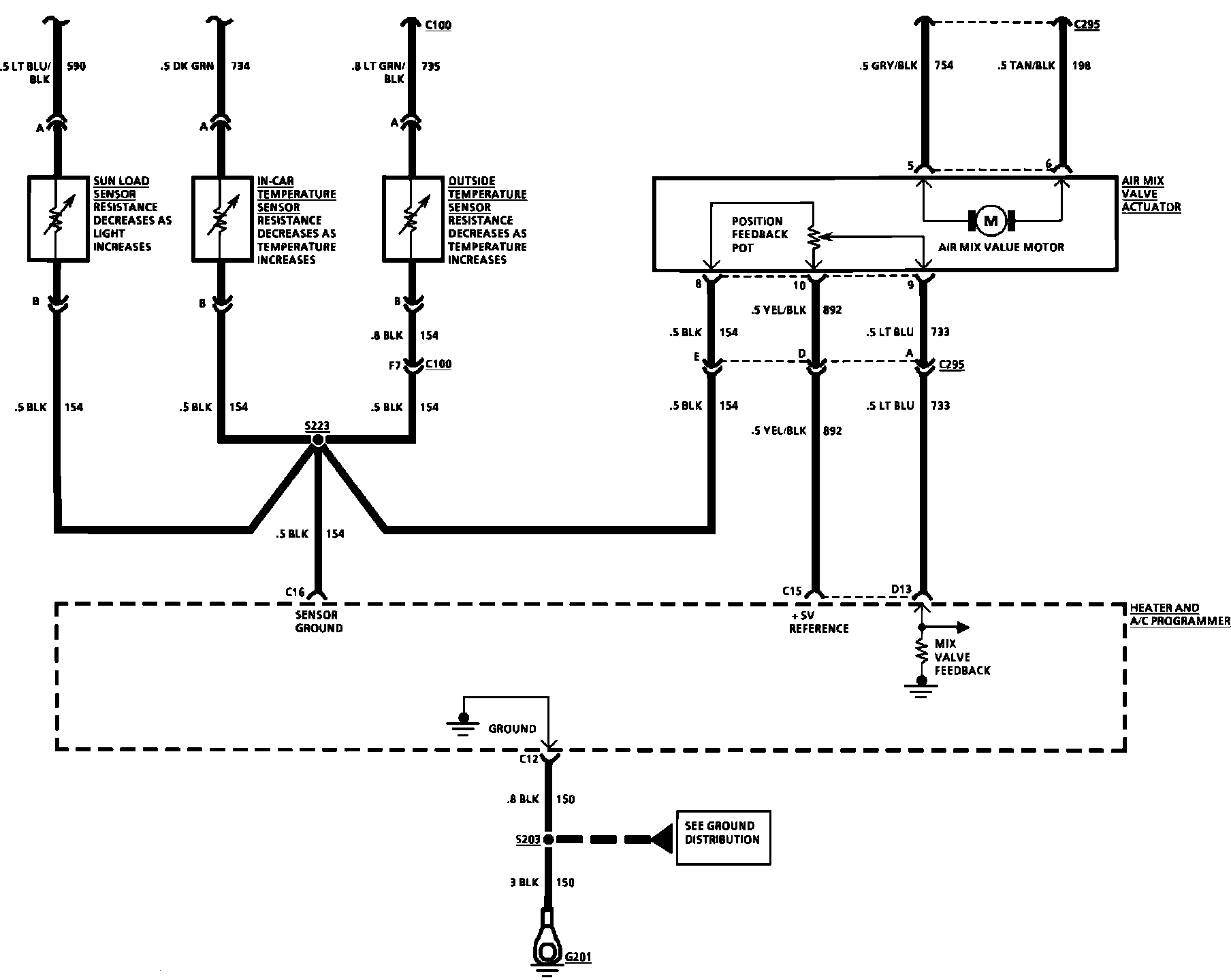

Air Delivery And Temperature Controls - C68, Electronic:

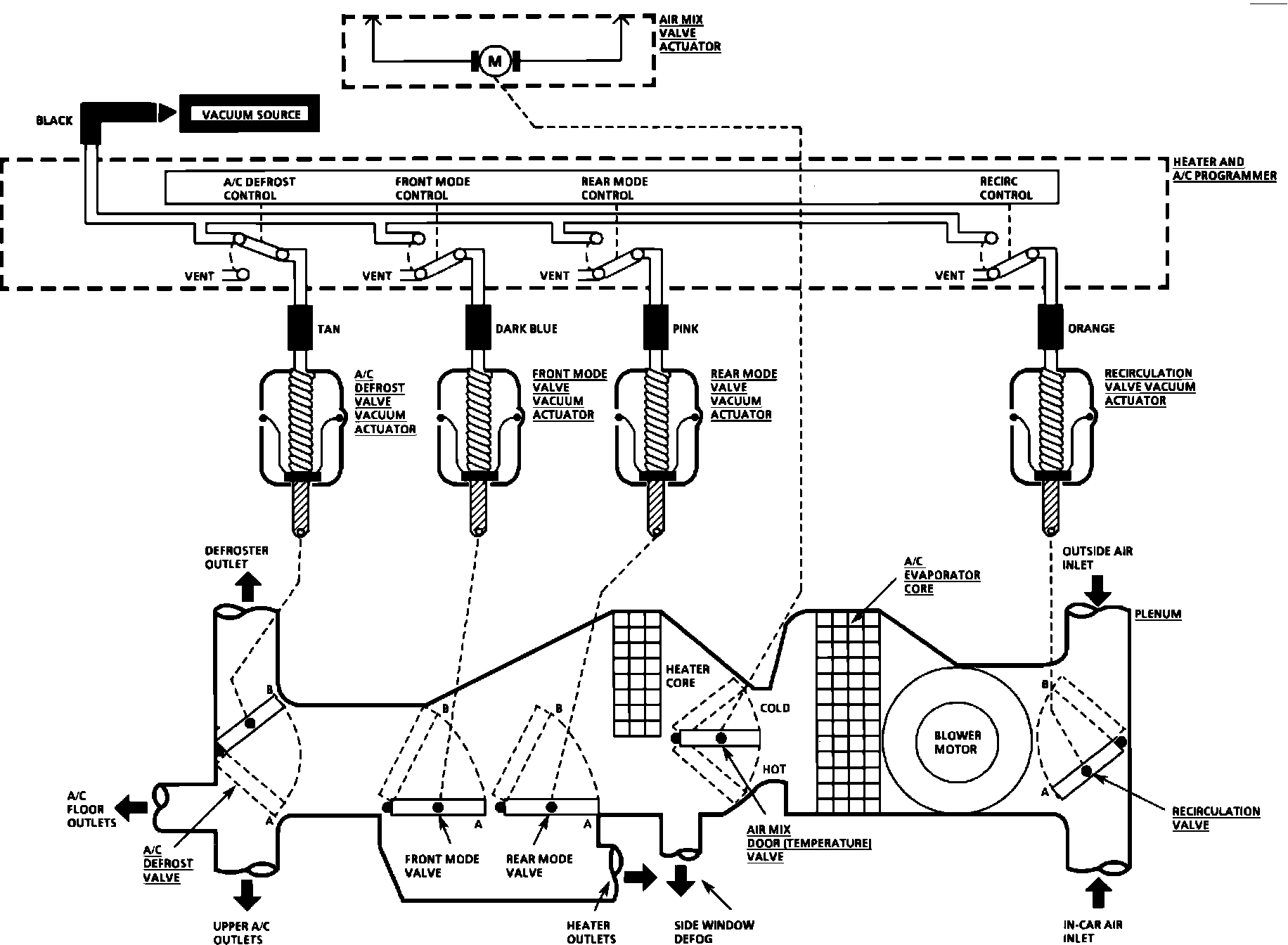

Air conditioning, Air Delivery (Electronic):
