Corvette V8-350 5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>

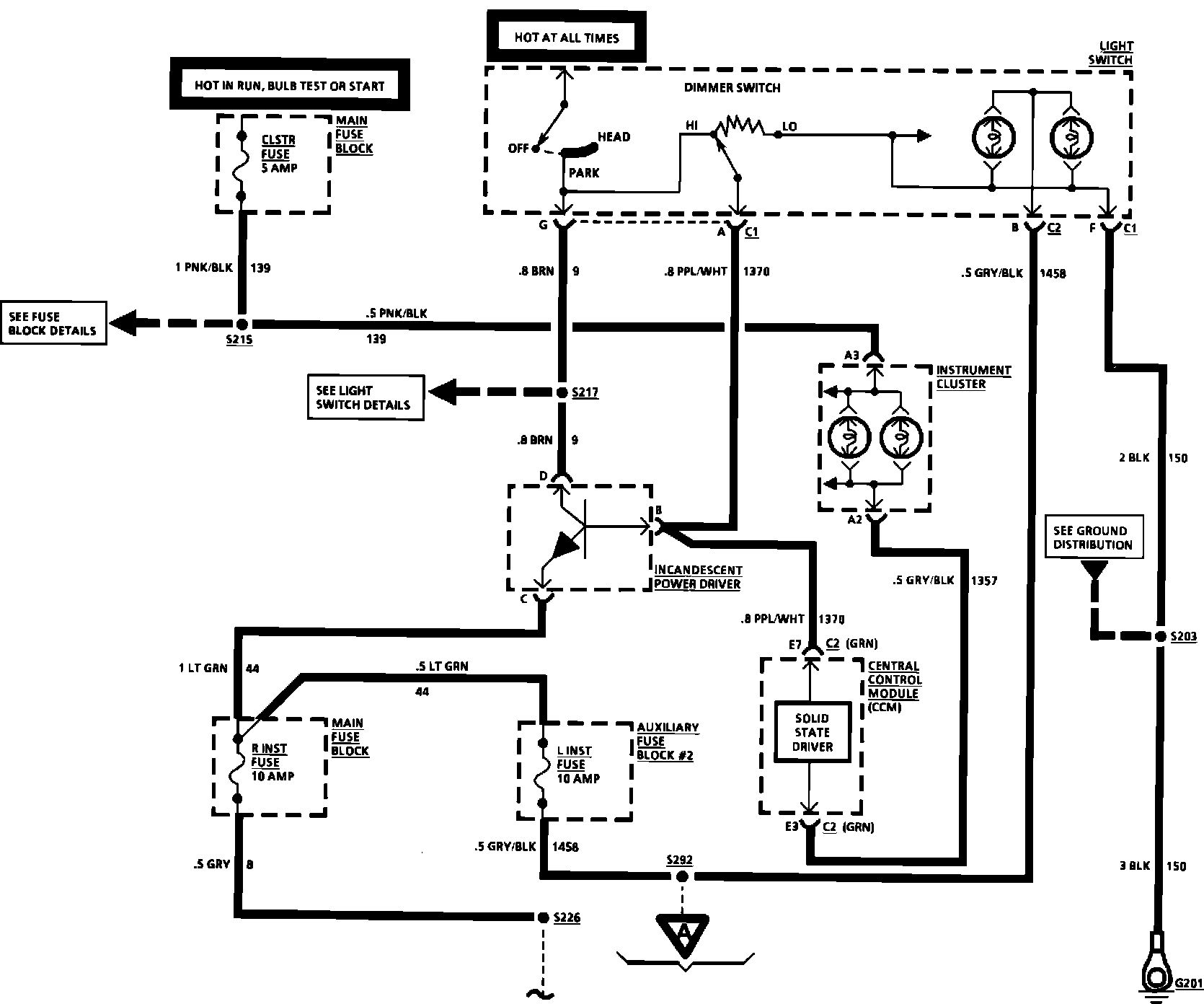

Dimmer Switch
>>

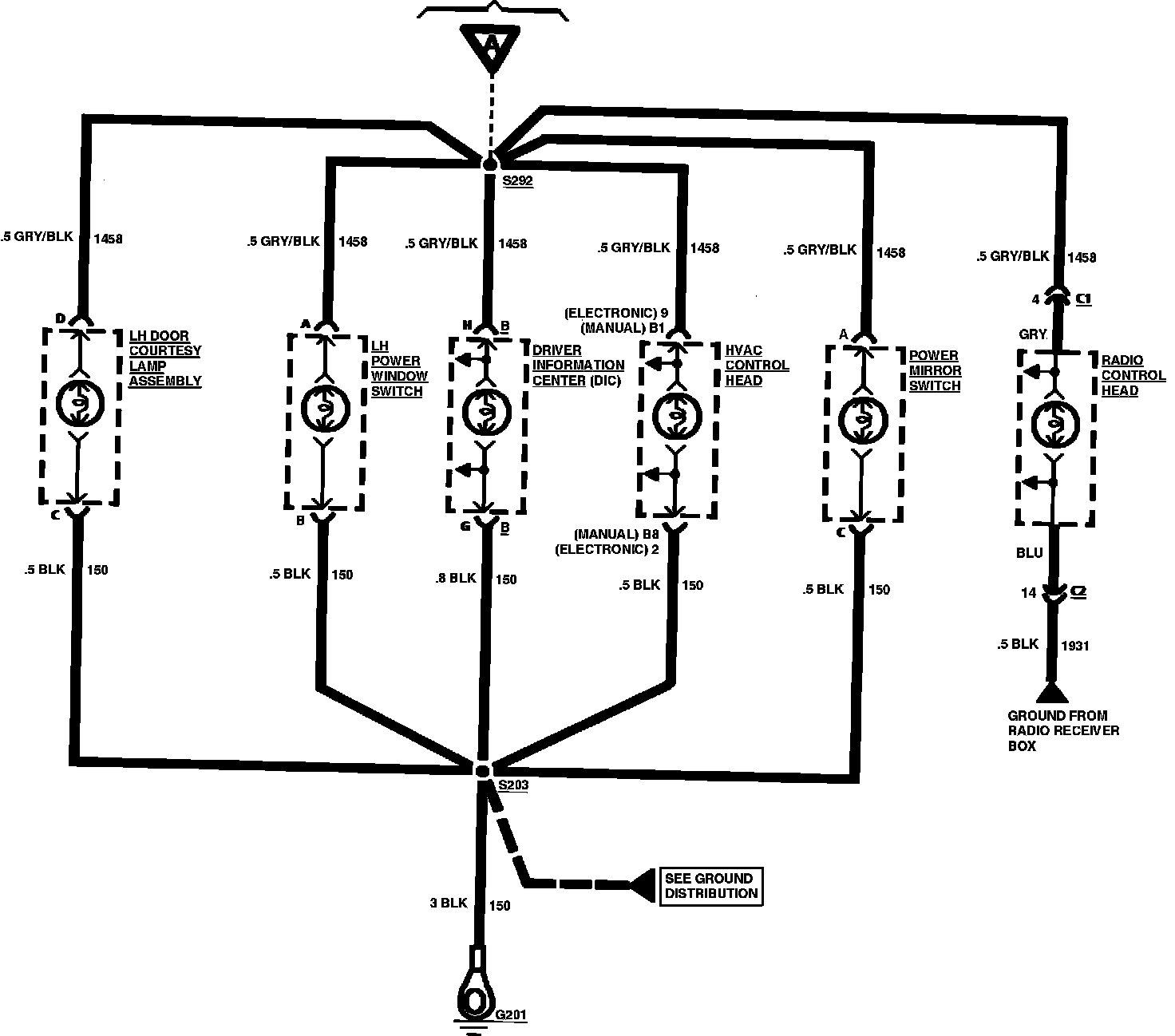

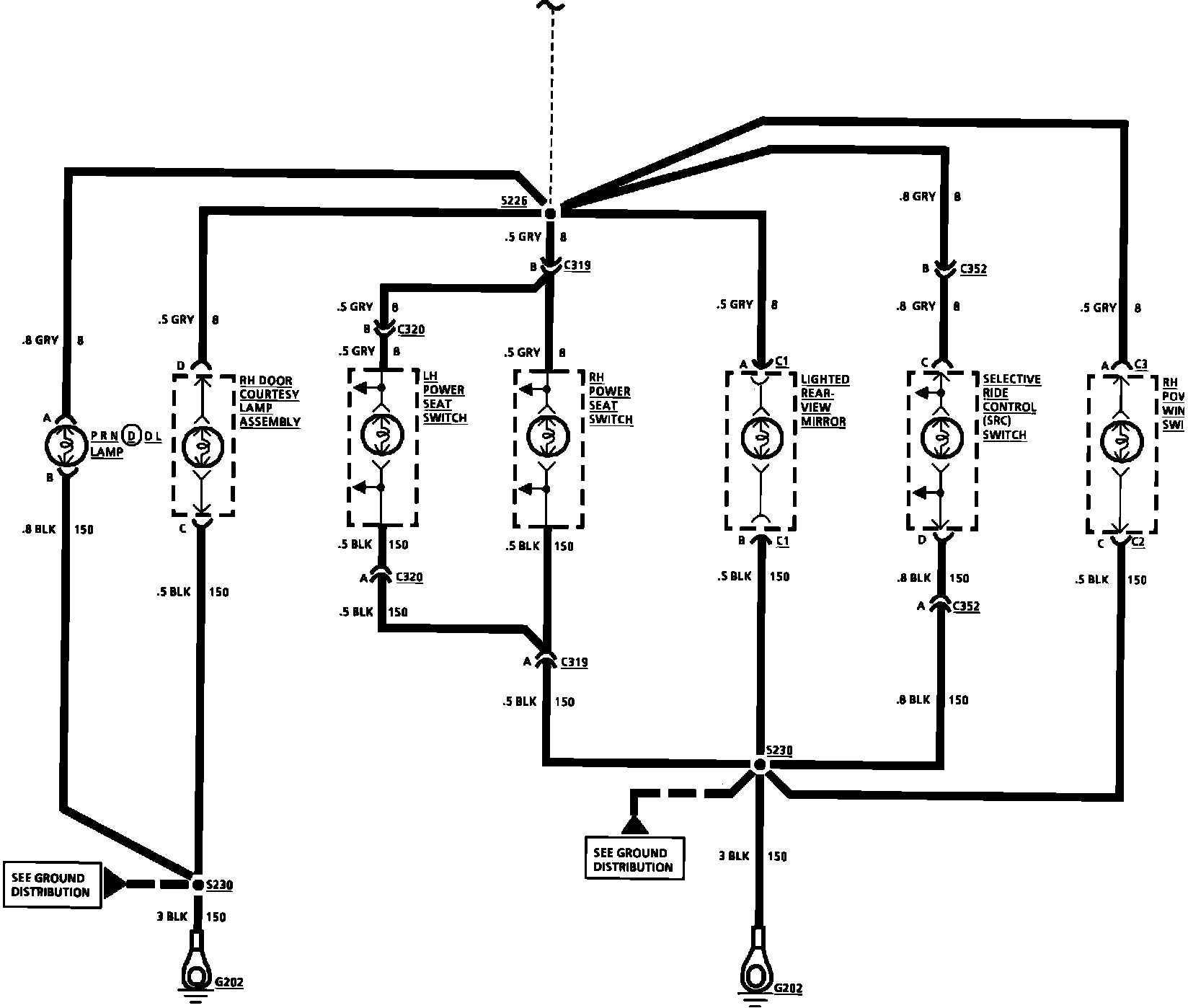

Incandescent (Panel Lamps)
Incandescent (Panel Lamps)
Incandescent - Panel Lamps:
��Incandescent - Panel Lamps:
Incandescent - Panel Lamps:
