System Diagram

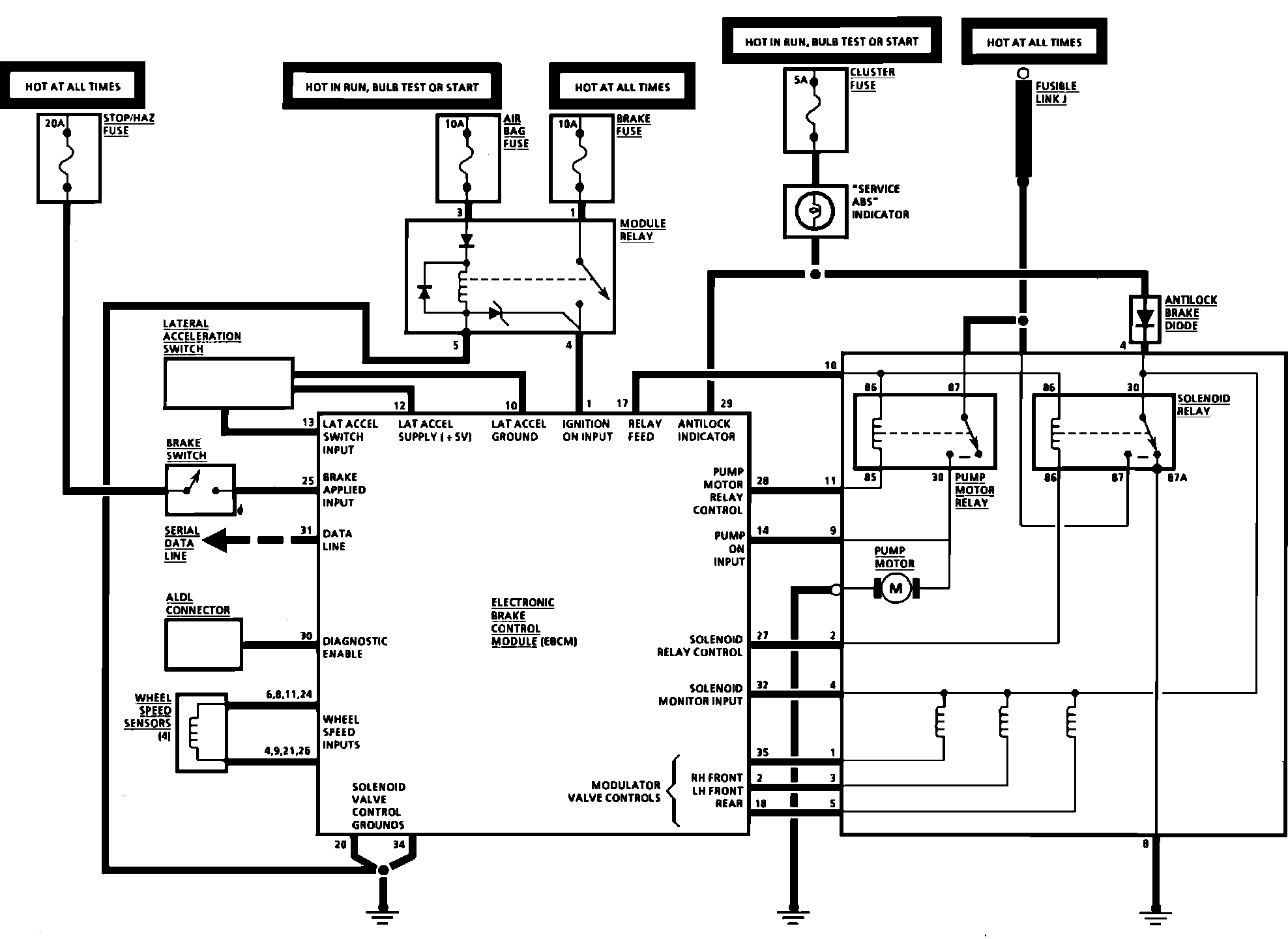

Fig. 18 Anti-lock Brake System Functional Diagram. 1990:



Fig. 19 Anti-lock Brake System Functional Diagram. 1991:

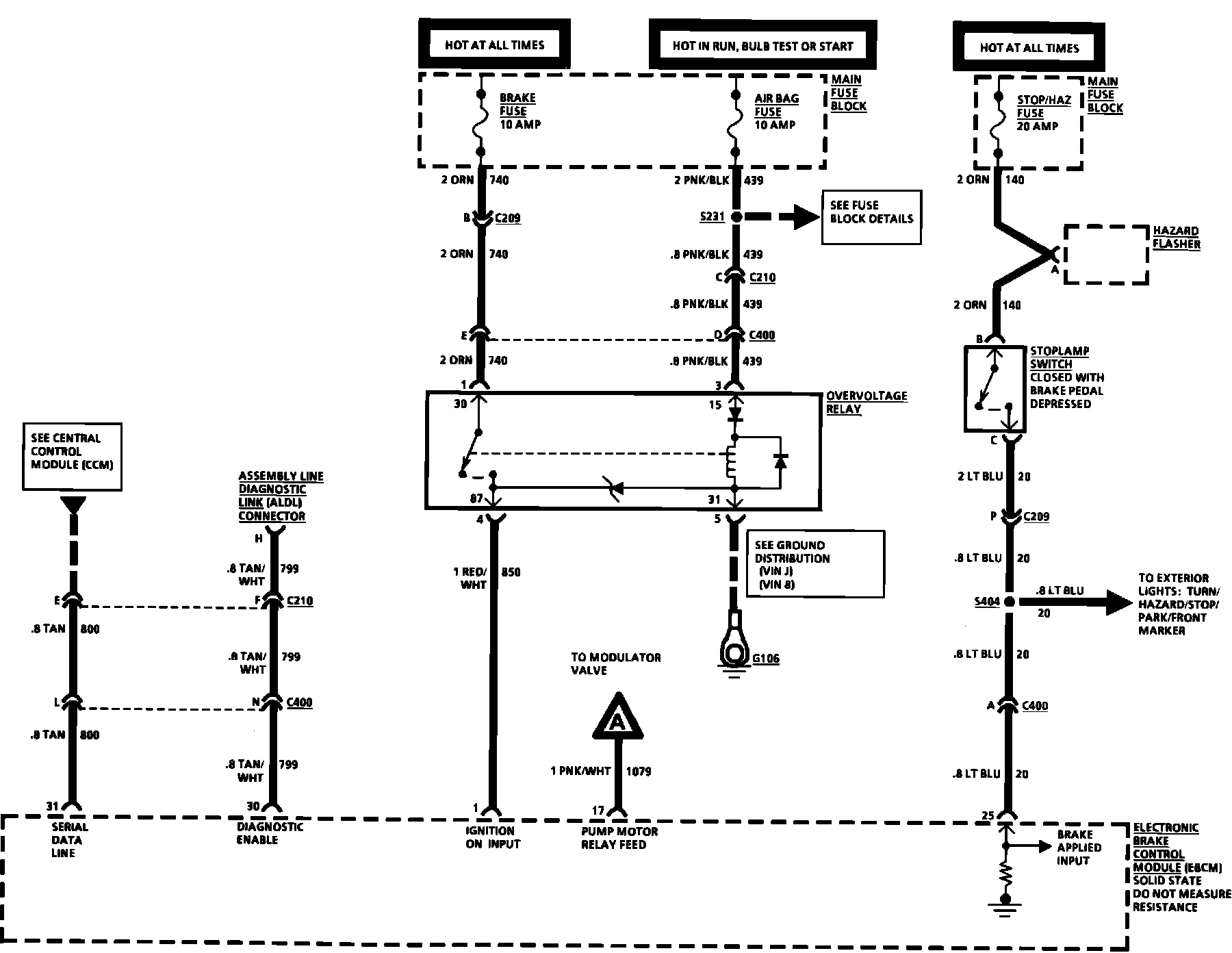

Anti-Lock Brake System:

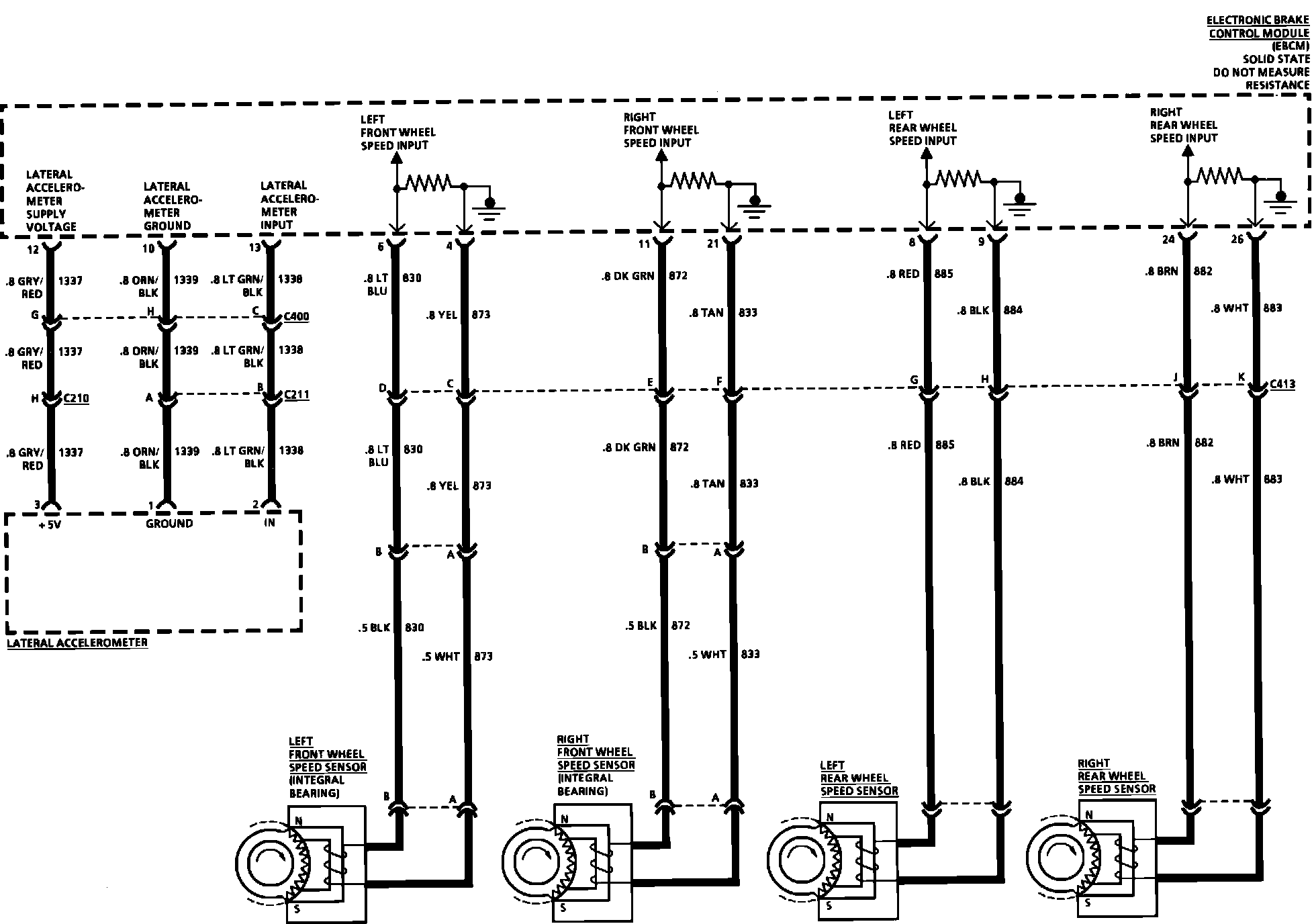

Anti-Lock Brake System:

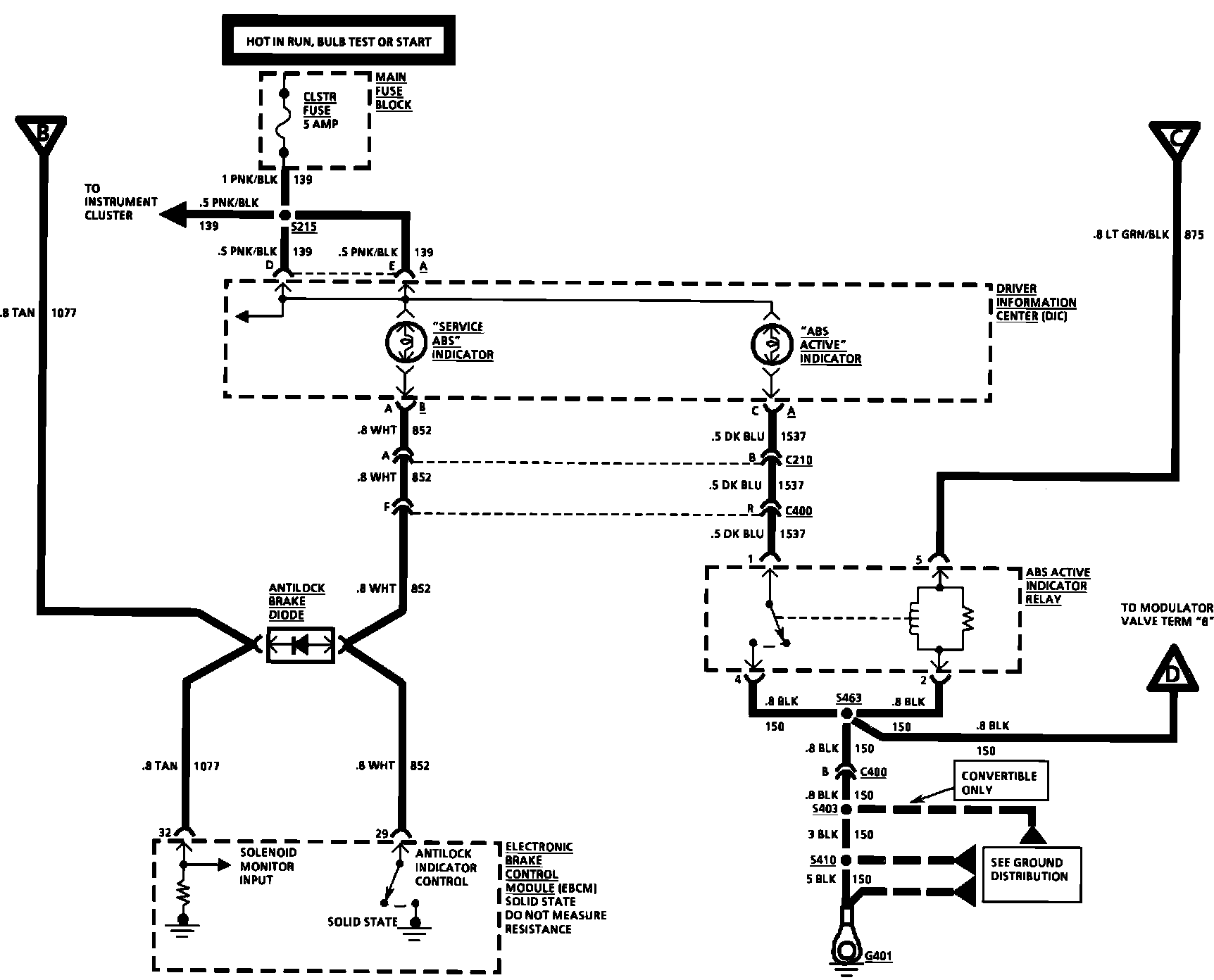

Anti-Lock Brake System:

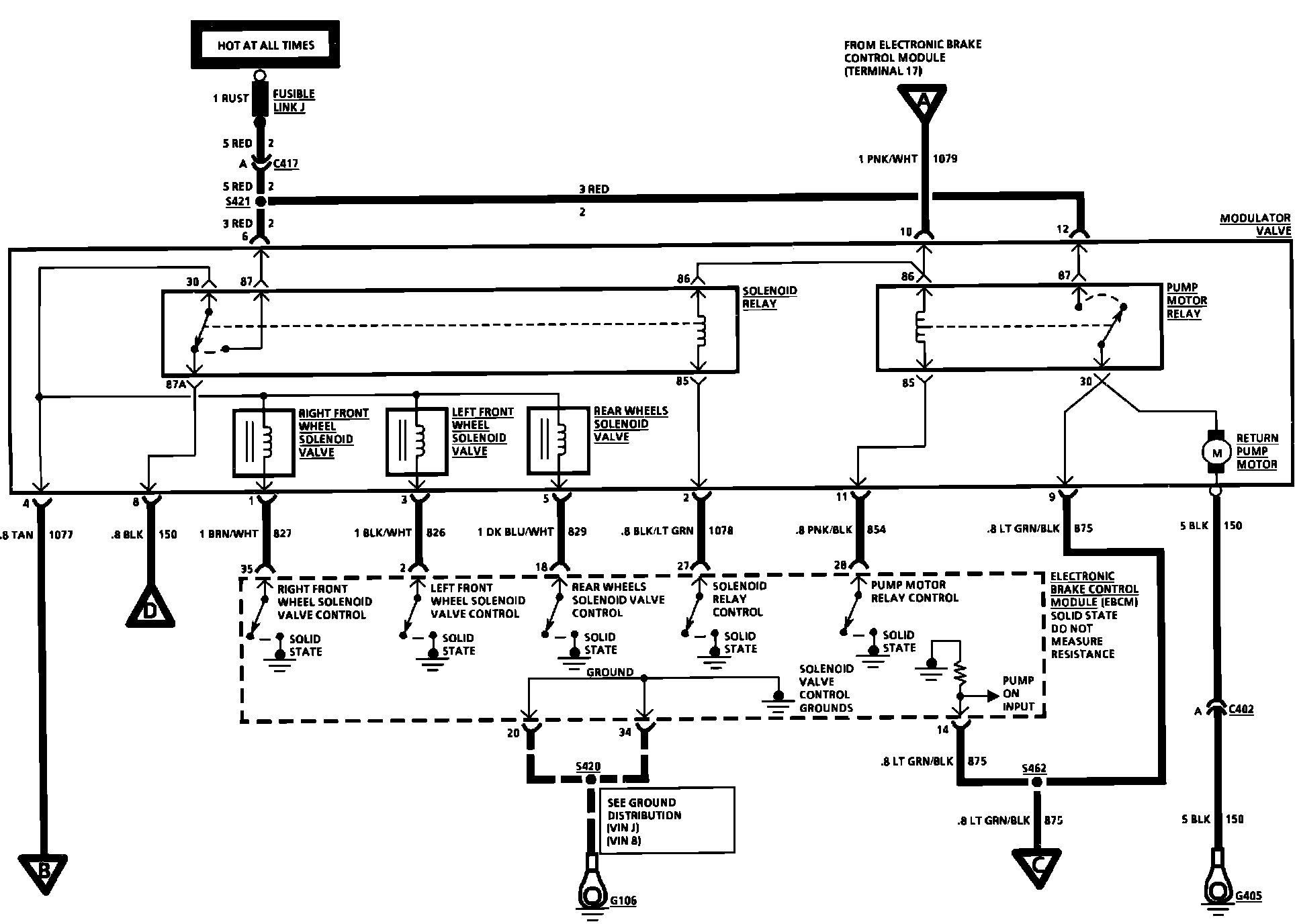

Anti-Lock Brake System:
