Home
>>
Chevrolet
>>
1991
>>
Corvette V8-350 5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>

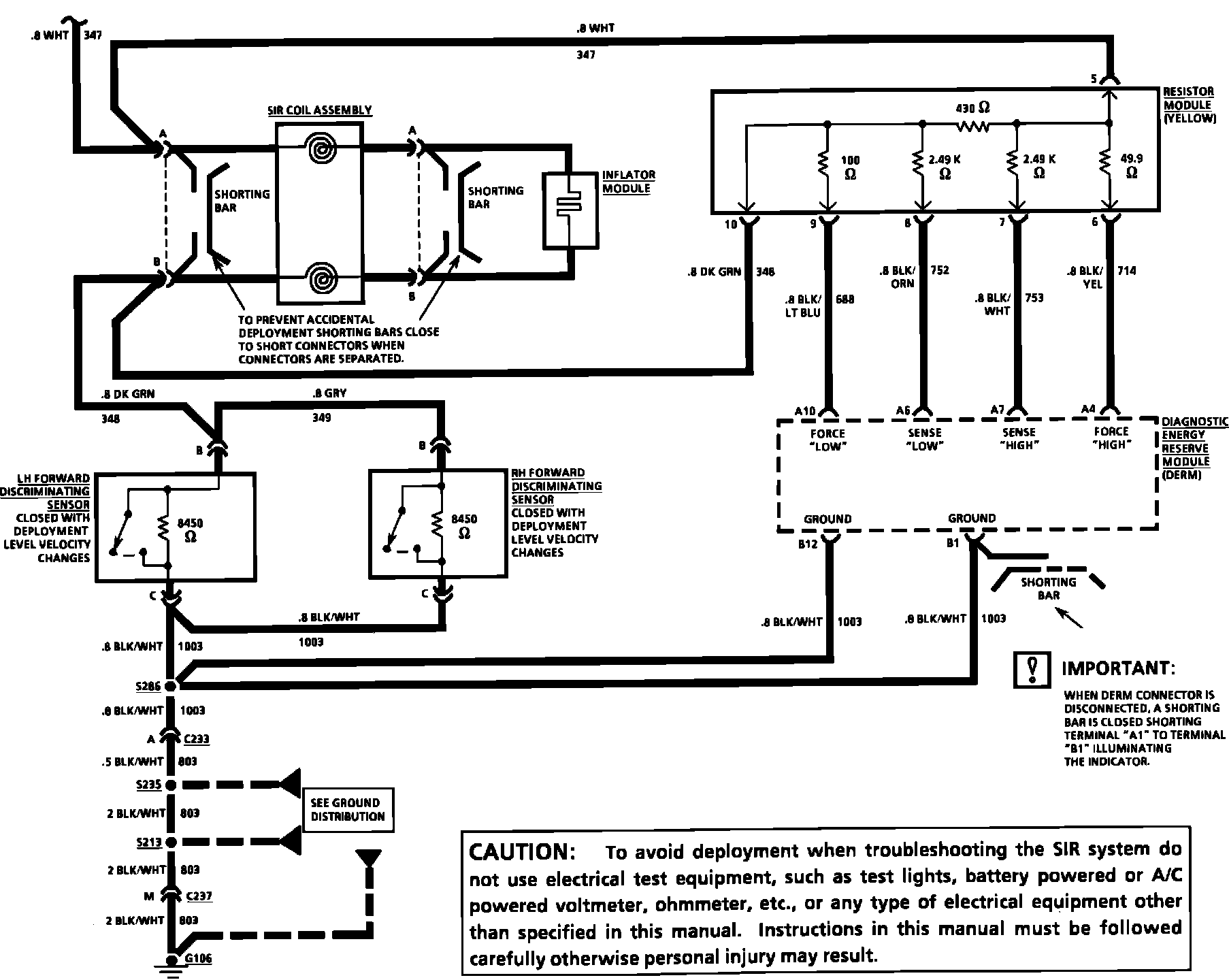

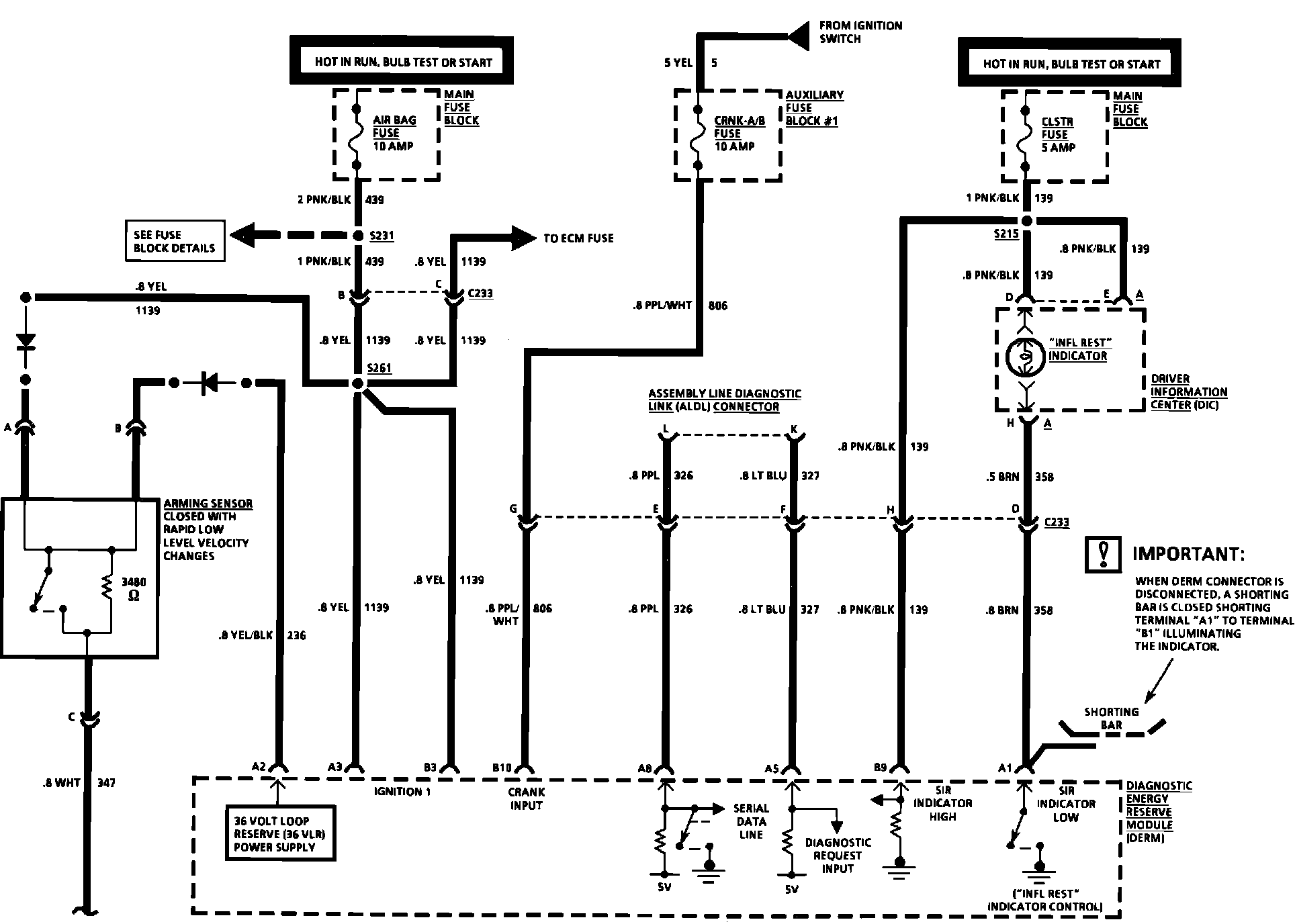

Air Bag Systems
Air Bag Systems
Delco System:
Delco System:
