Anti-Lock Brake System - Active Indicator Diagnosis

Number: 91-513-5

Section: 5

Date: SEPT. 1992

Corporate Bulletin No.: 215007

ASE No: A5

Subject:
ANTI-LOCK BRAKE SYSTEM (ABS) ACTIVE INDICATOR DIAGNOSIS

Model and Year:
1991 CORVETTE

SERVICE UPDATE

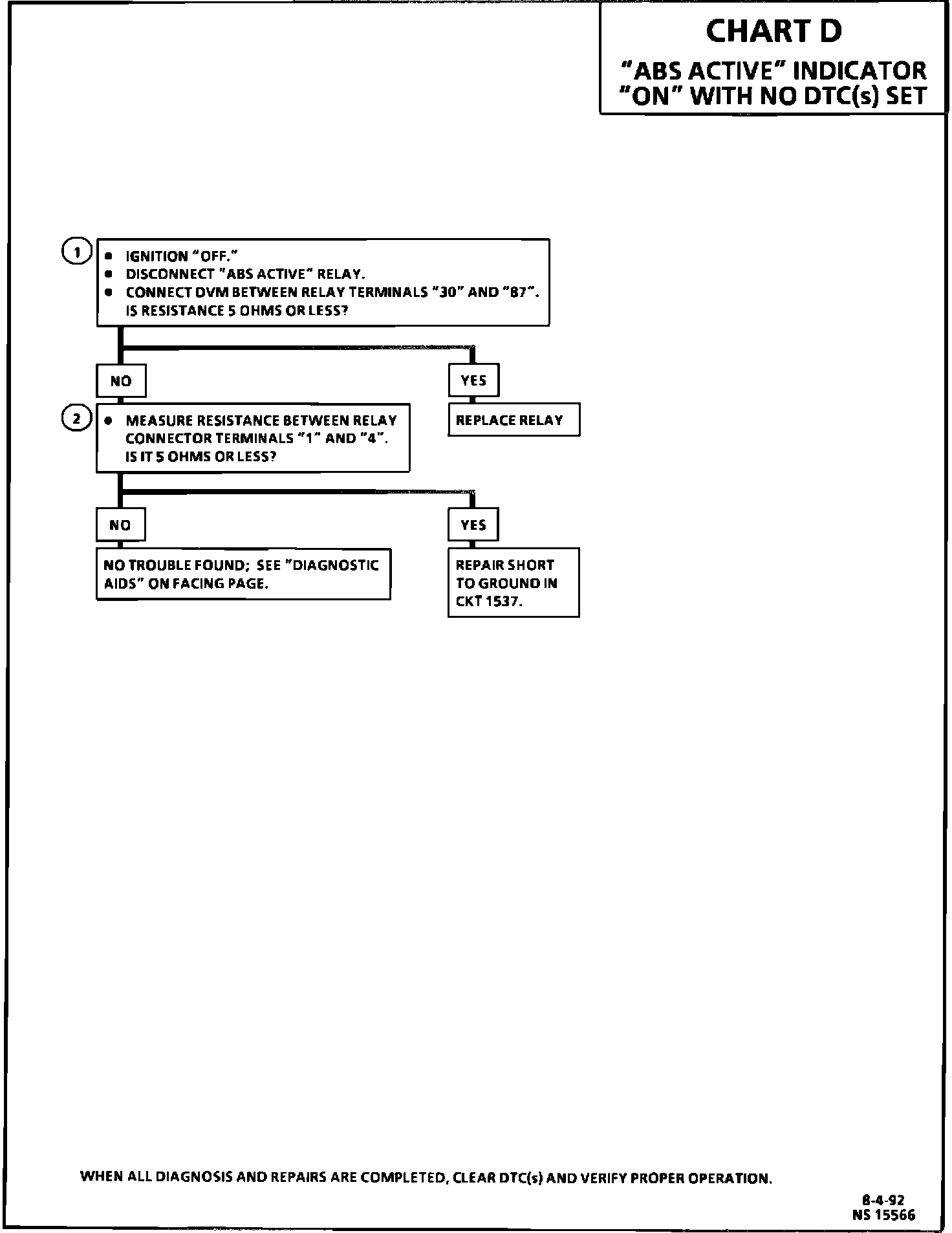

This Bulletin adds the diagnosis of "ABS ACTIVE" indicator "ON" with no Diagnostic Trouble Codes (DTCS) set to the ABS diagnostic information in the 1991 Corvette Service Manual Section 5E1, "Antilock Brake System Diagnosis."

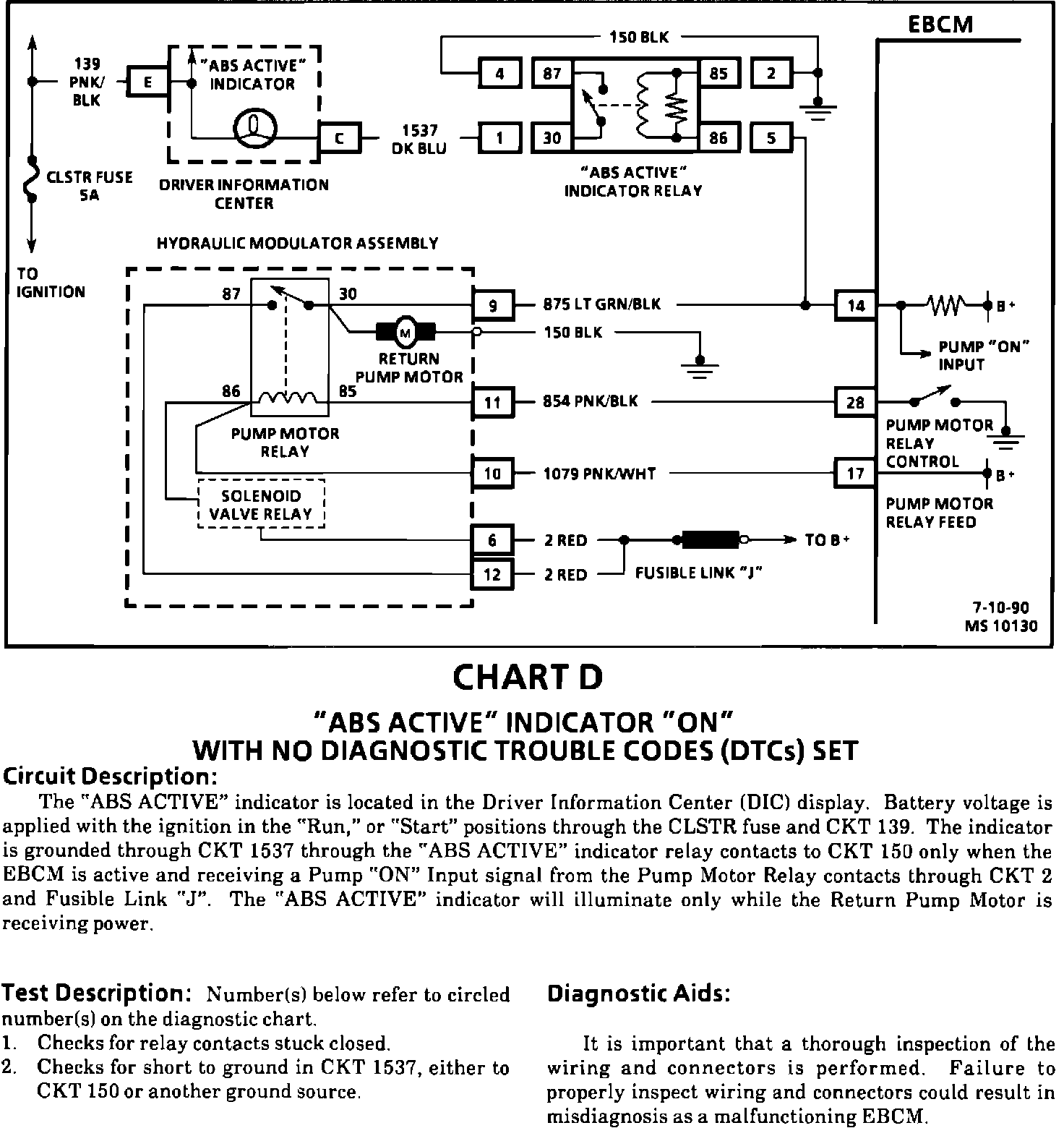

Manual Update Antilock Brake System Page 5E1-8

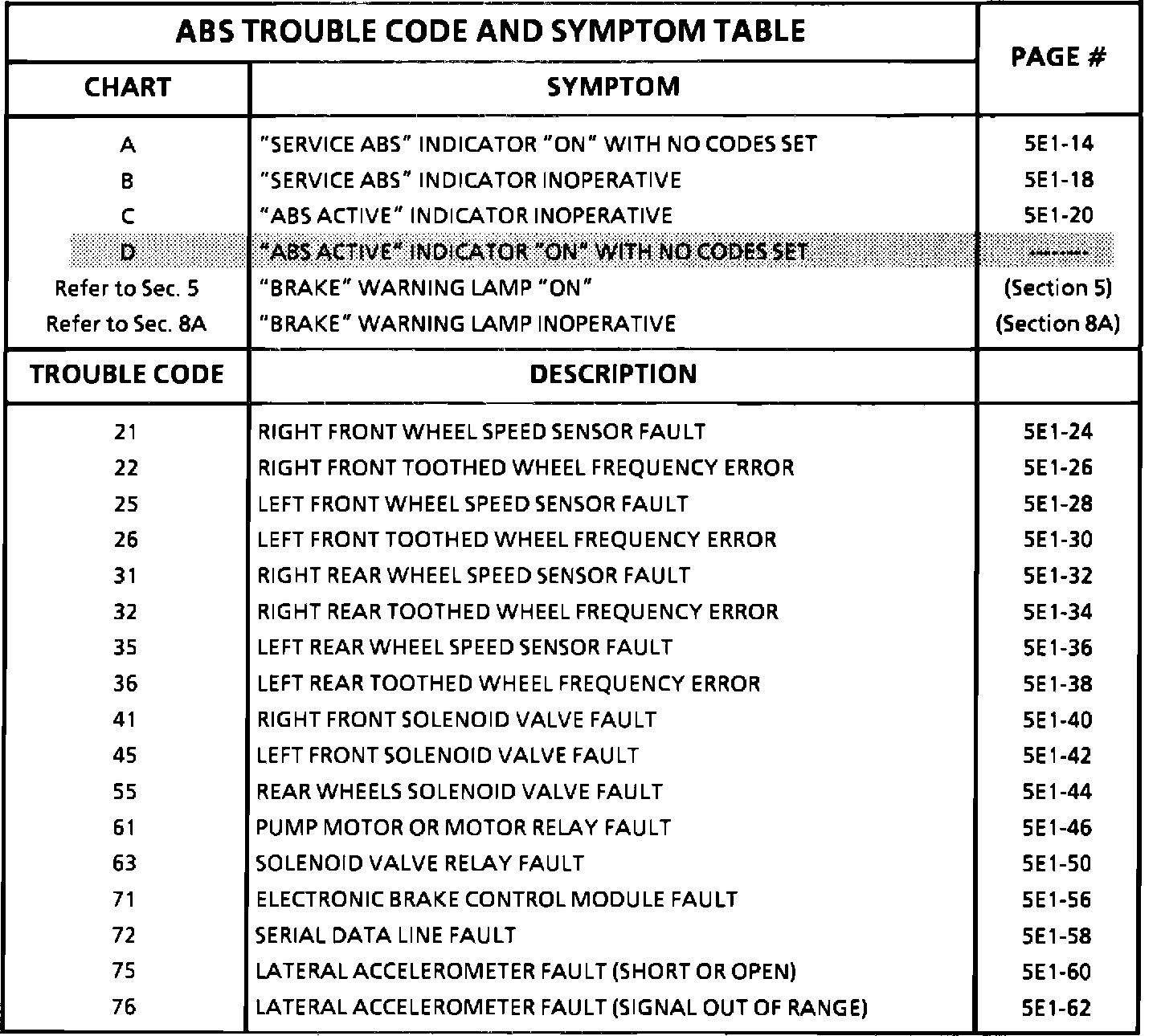

Manual Update Antilock Brake System Page 5E1
