Chart C, ``ABS Active'' Indicator Inoperative
Chart C, ``ABS Active'' Indicator Inoperative

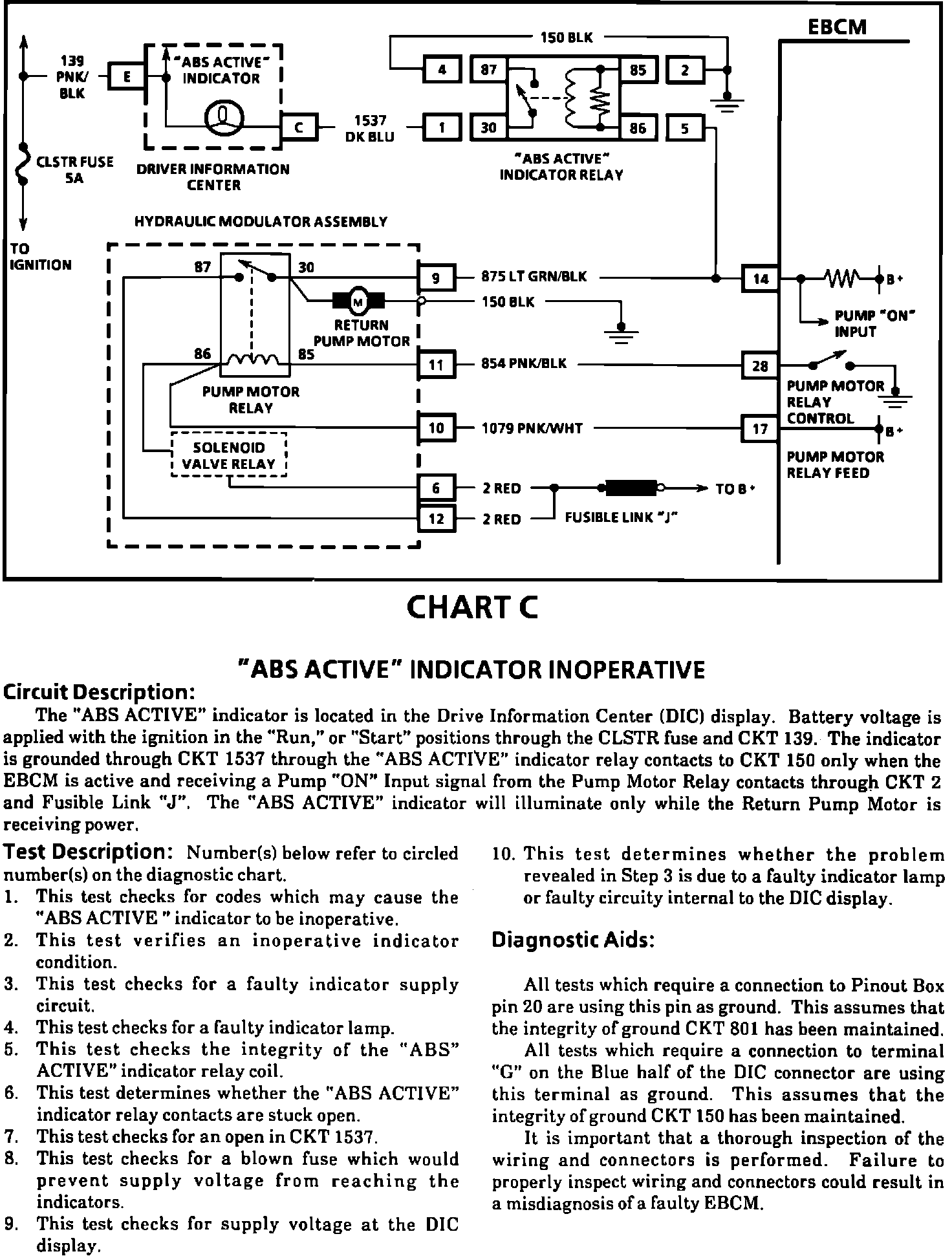

Fig. 40 Chart C, ``ABS Active'' Indicator Inoperative (Part 1 Of 4). 1991:

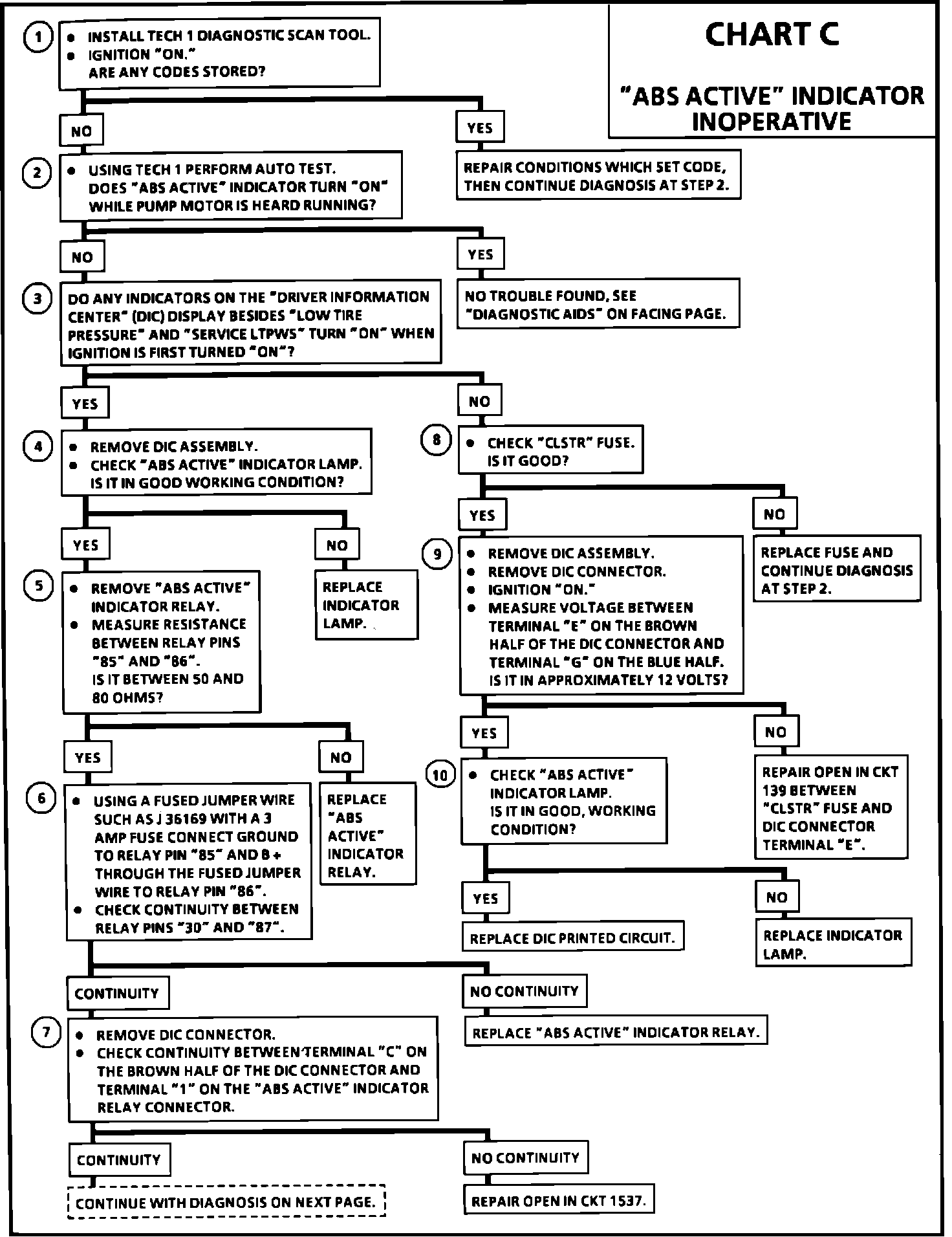

Fig. 40 Chart C, ``ABS Active'' Indicator Inoperative (Part 2 Of 4). 1991:
