Chart B ``Service ABS'' Indicator Inoperative

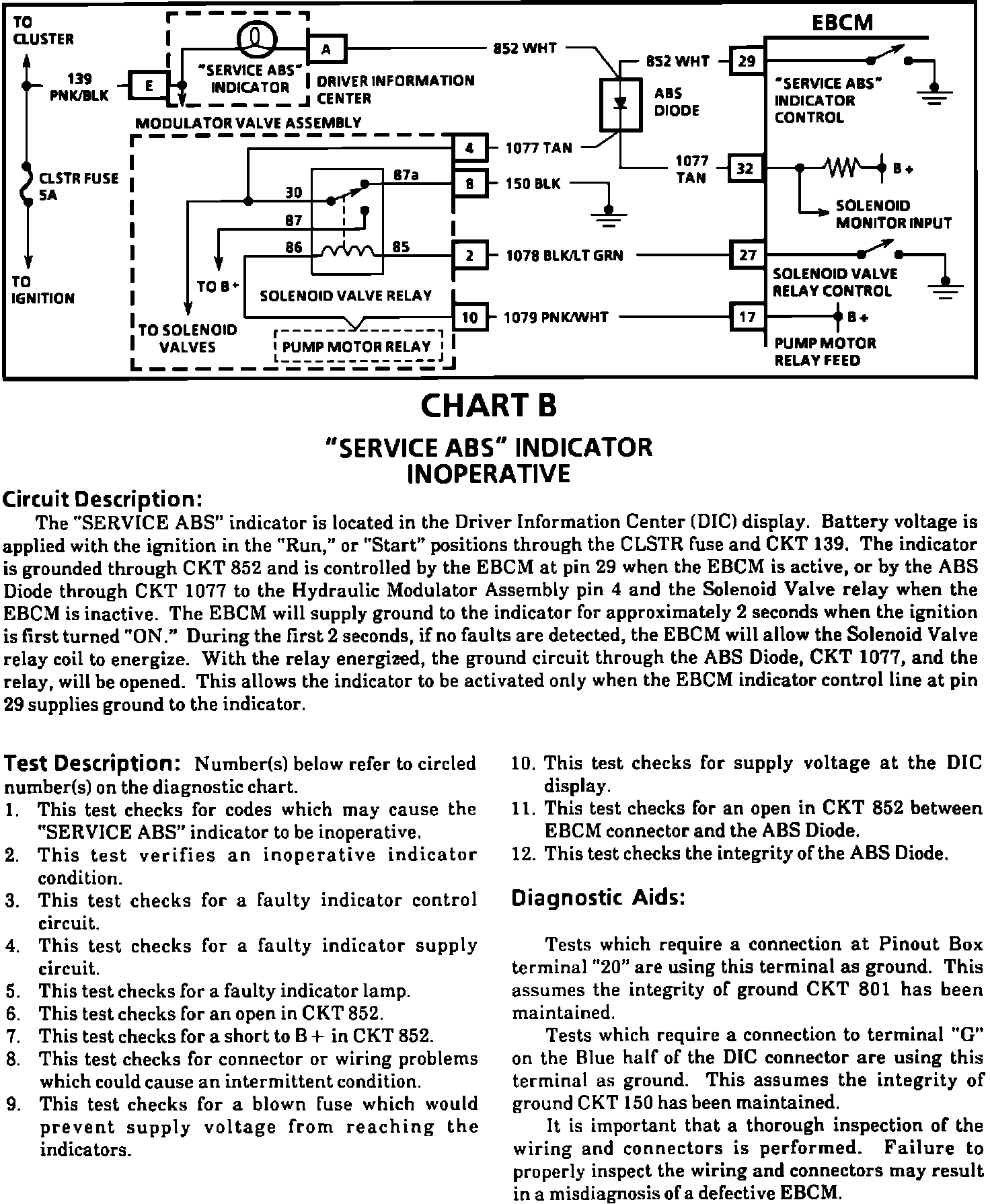

Fig. 39 Chart B, ``Service ABS'' Indicator Inoperative. 1991. (Part 1 of 2).:

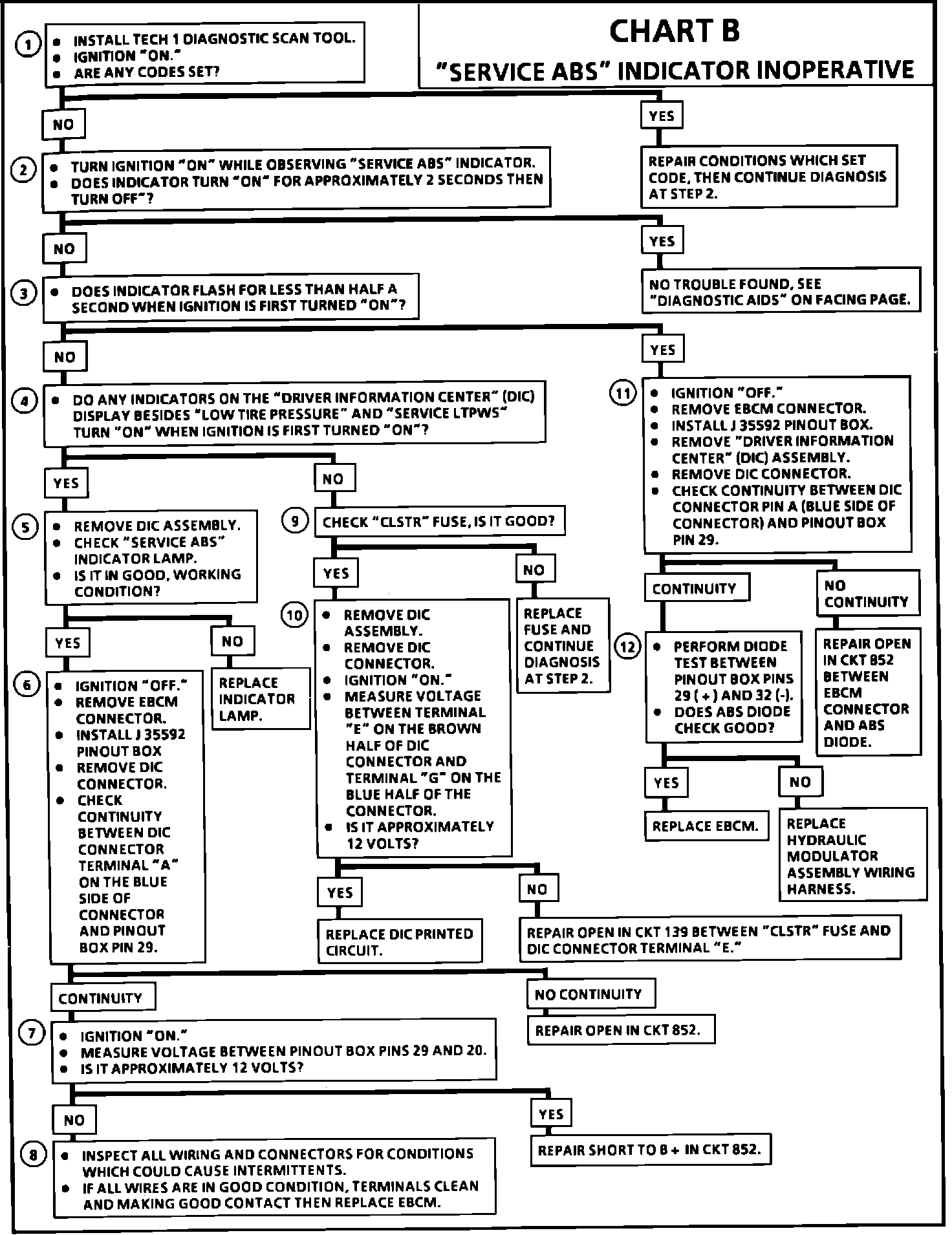

Fig. 39 Chart B, ``Service ABS'' Indicator Inoperative. 1991. (Part 2 of 2).:
