Chart A "Service ABS" Indicator "on" With No DTCs Set

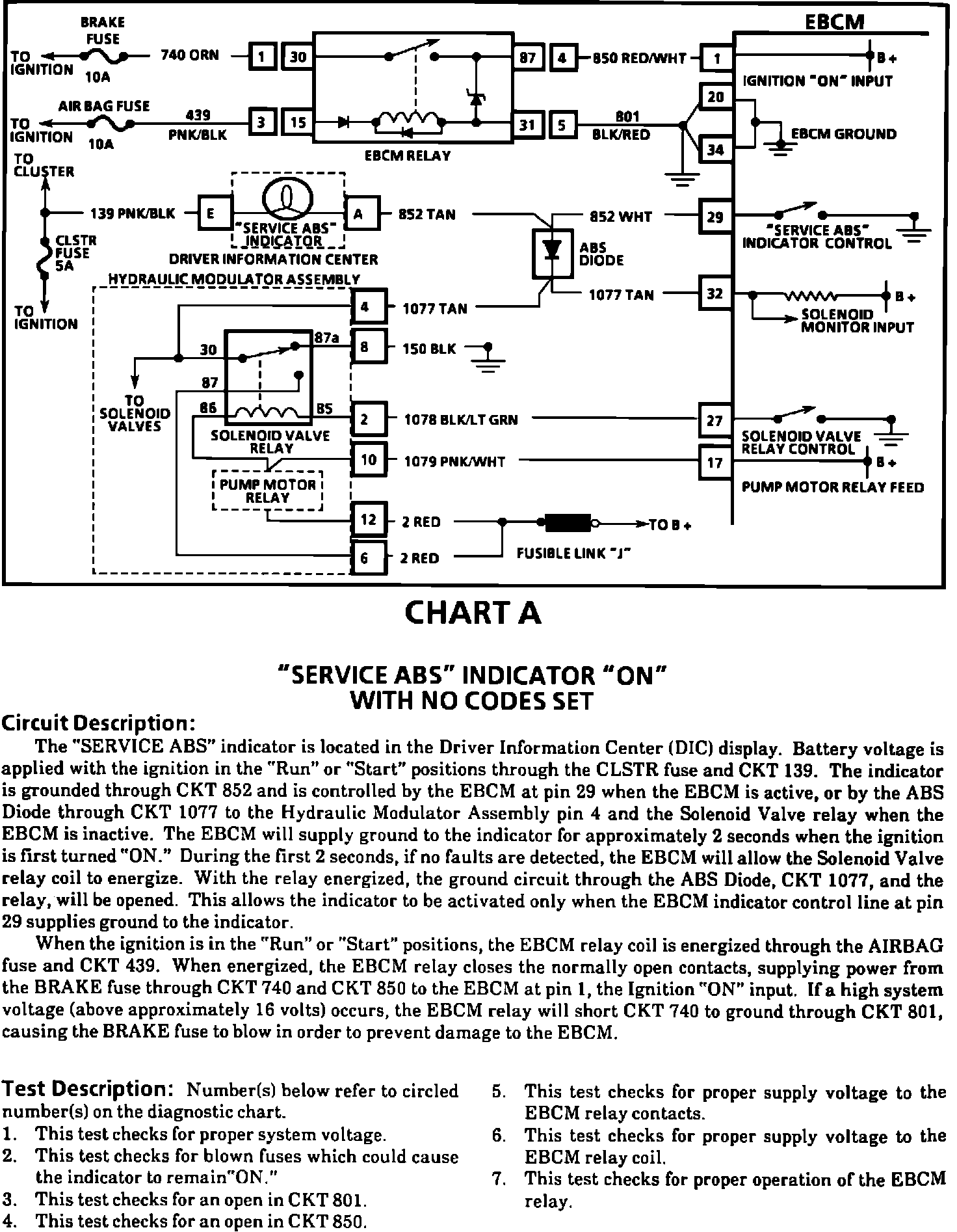

Fig. 38 Chart A, ``Service ABS'' Indicator ON No Codes Set (Part 1 Of 4). 1991:

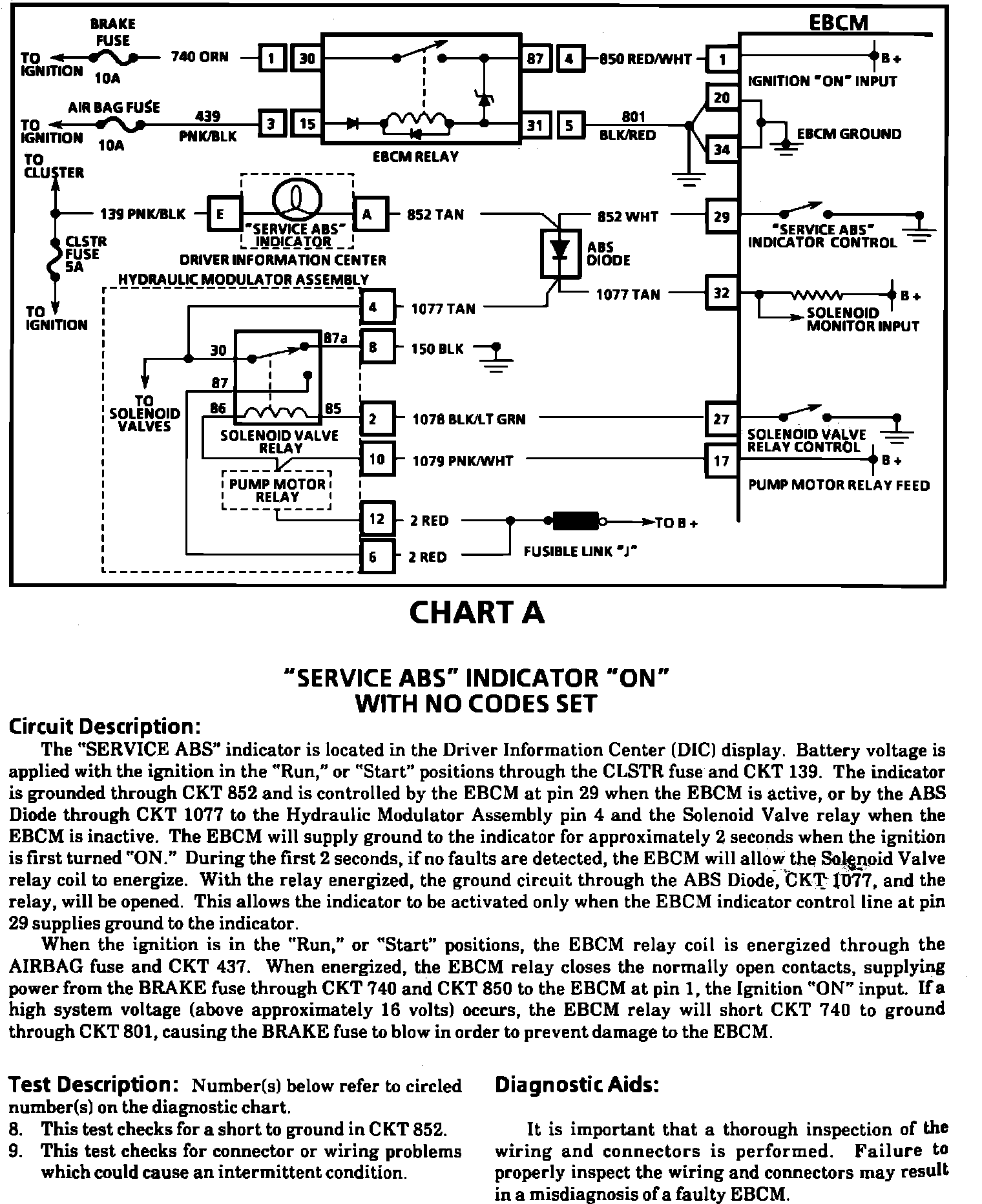

Fig. 38 Chart A, ``Service ABS'' Indicator ON No Codes Set (Part 2 Of 4). 1991:

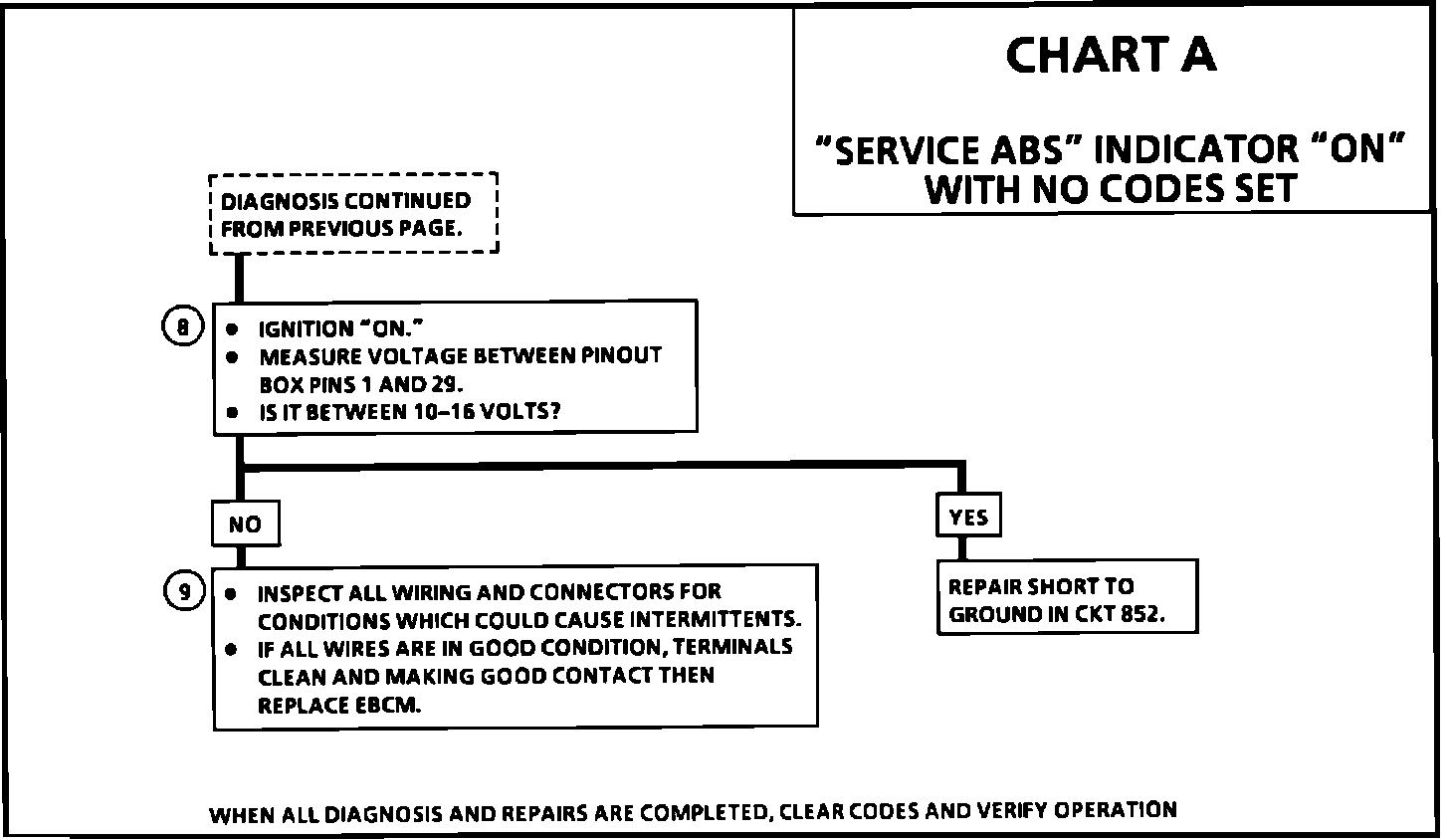

Fig. 38 Chart A, ``Service ABS'' Indicator ON No Codes Set (Part 3 Of 4). 1991:

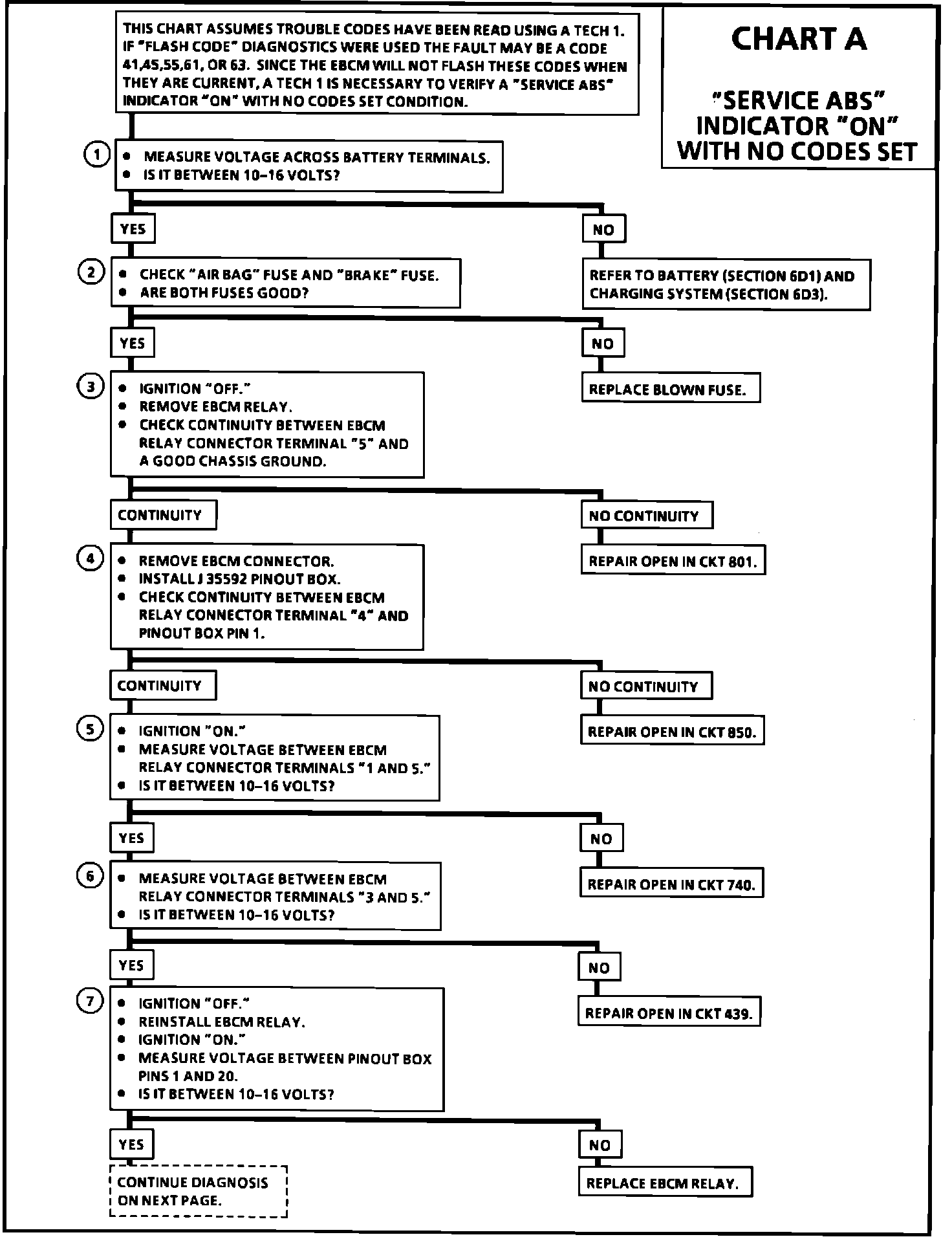

Fig. 38 Chart A, ``Service ABS'' Indicator ON No Codes Set (Part 4 Of 4). 1991:
