Lumbar Support
>>
Left Hand
Left Hand

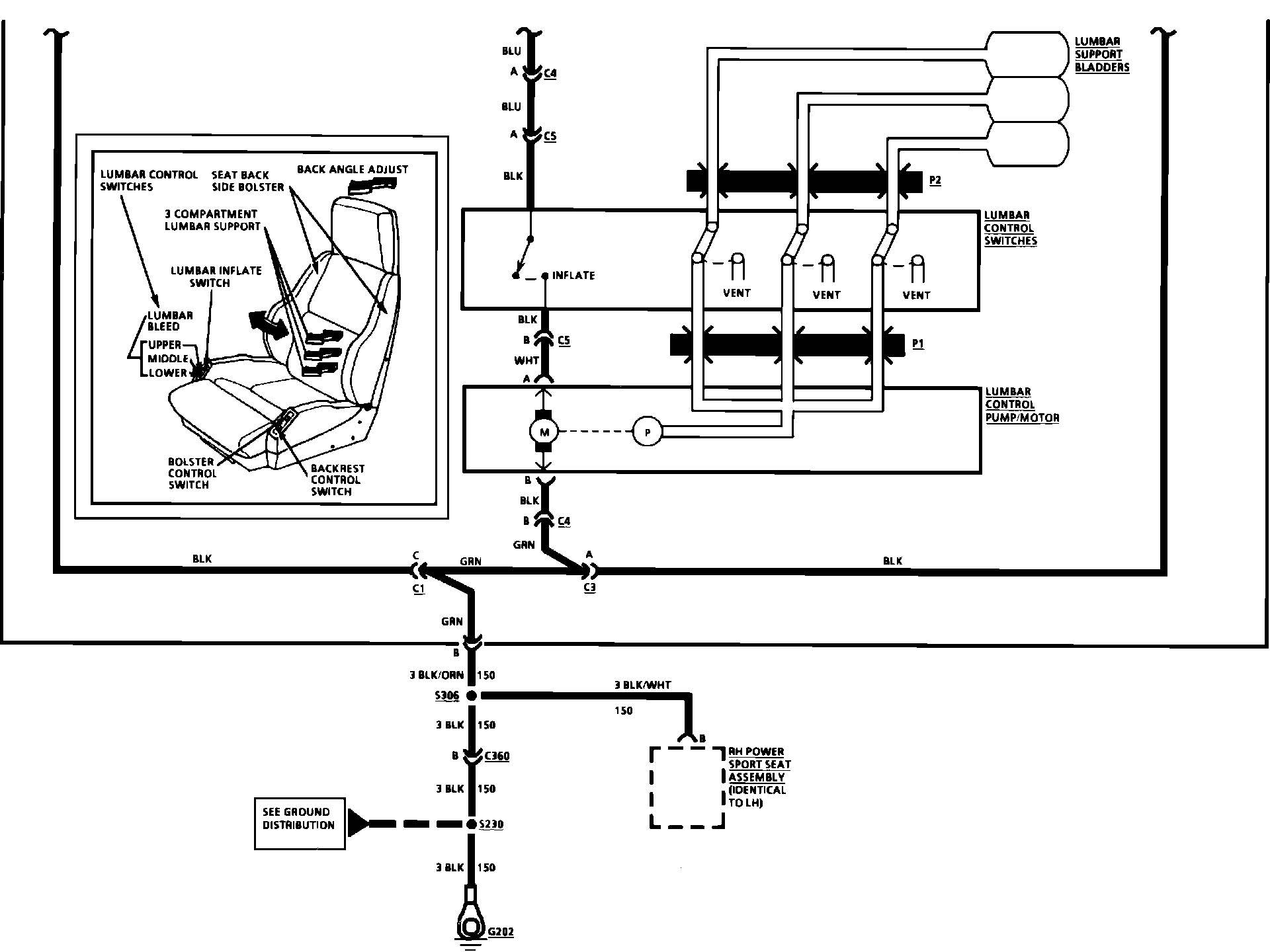

Lumbar Support (Lefthand):
Lumbar Support (Lefthand):

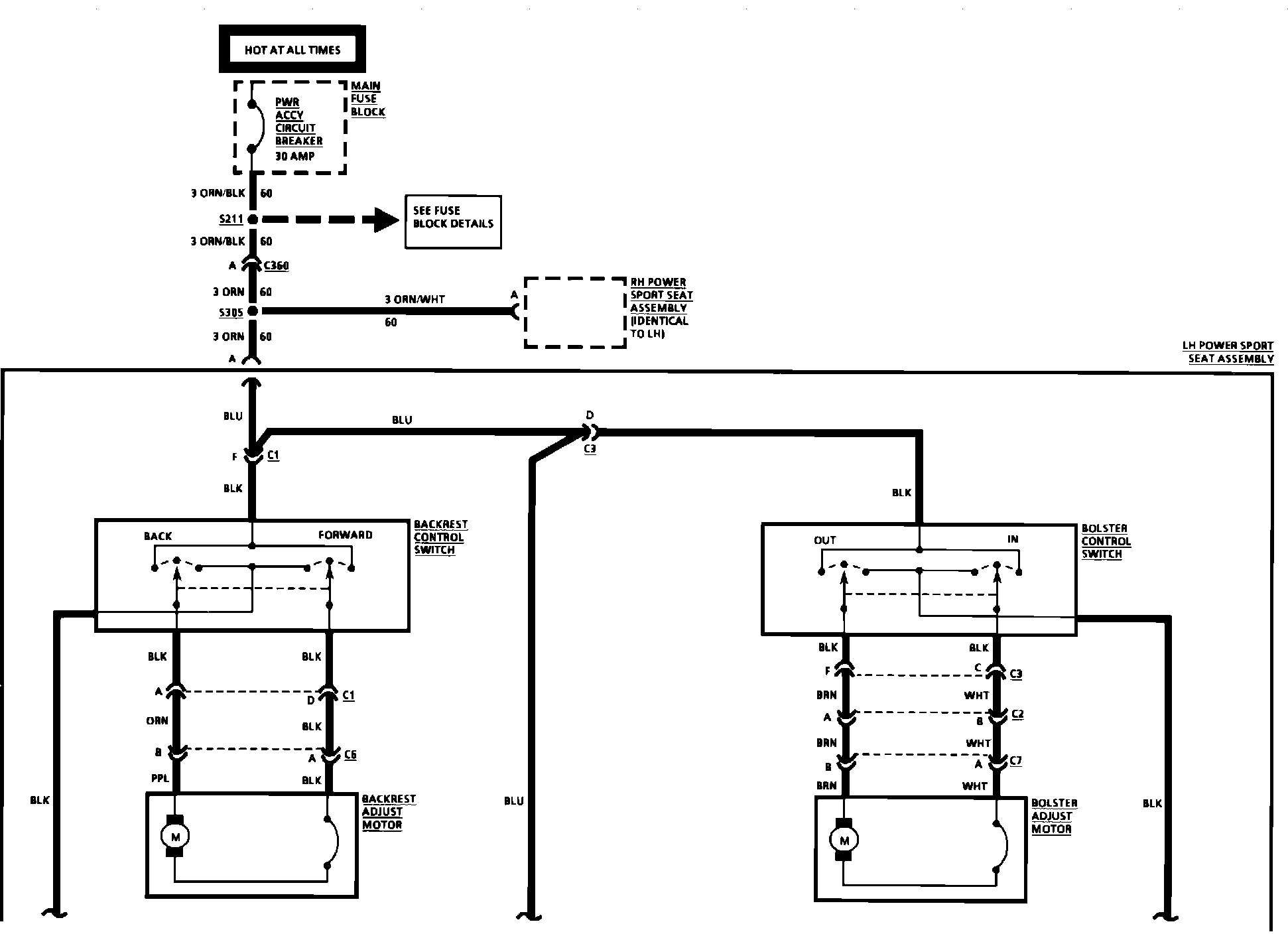

Lumbar Support - Left And Right:
