Home >> Chevrolet >> 1991 >> Corvette V8-350 5.7L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Central Control Module >> Diagrams >> Electrical Diagrams

Electrical Diagrams

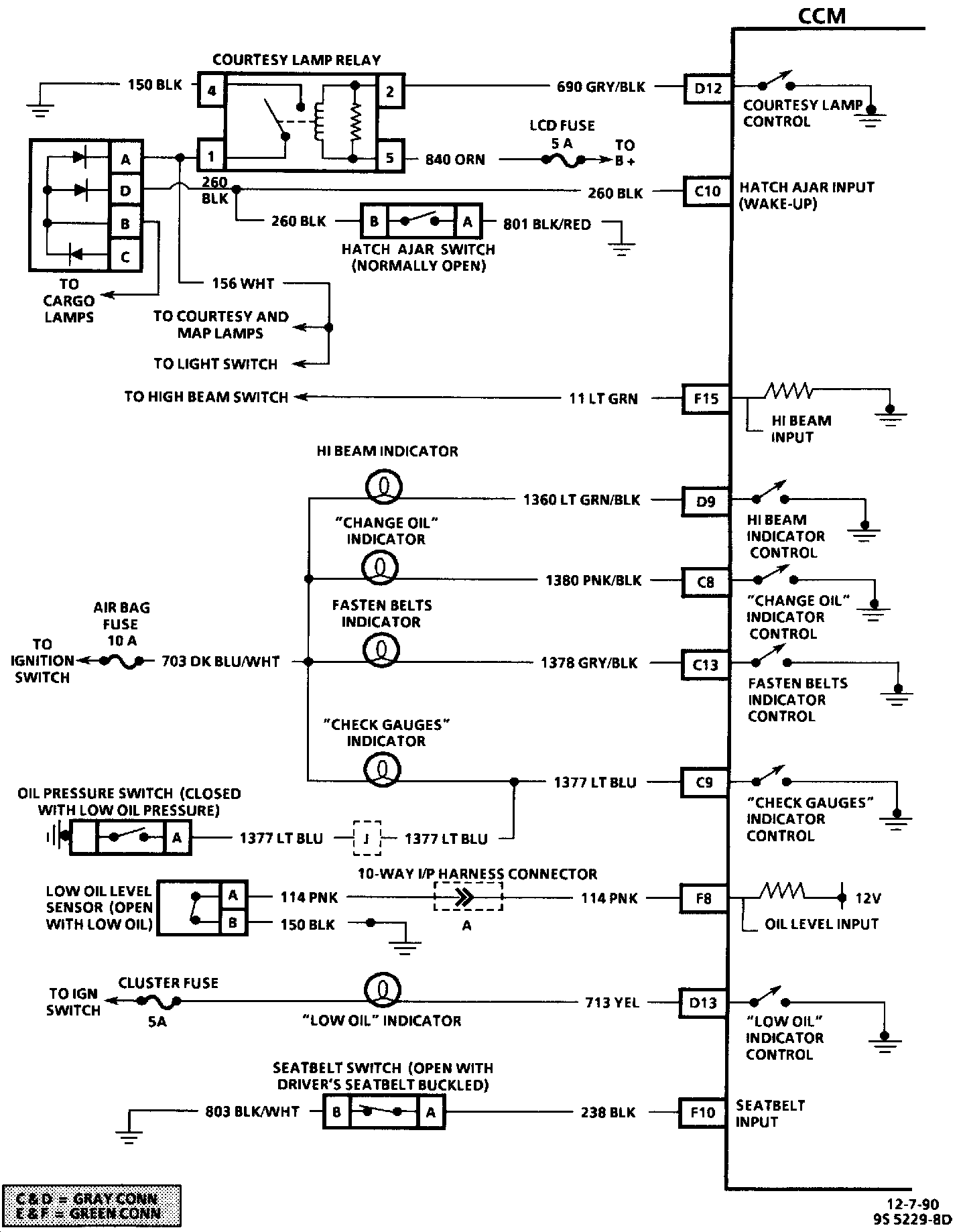

1 Of 5:

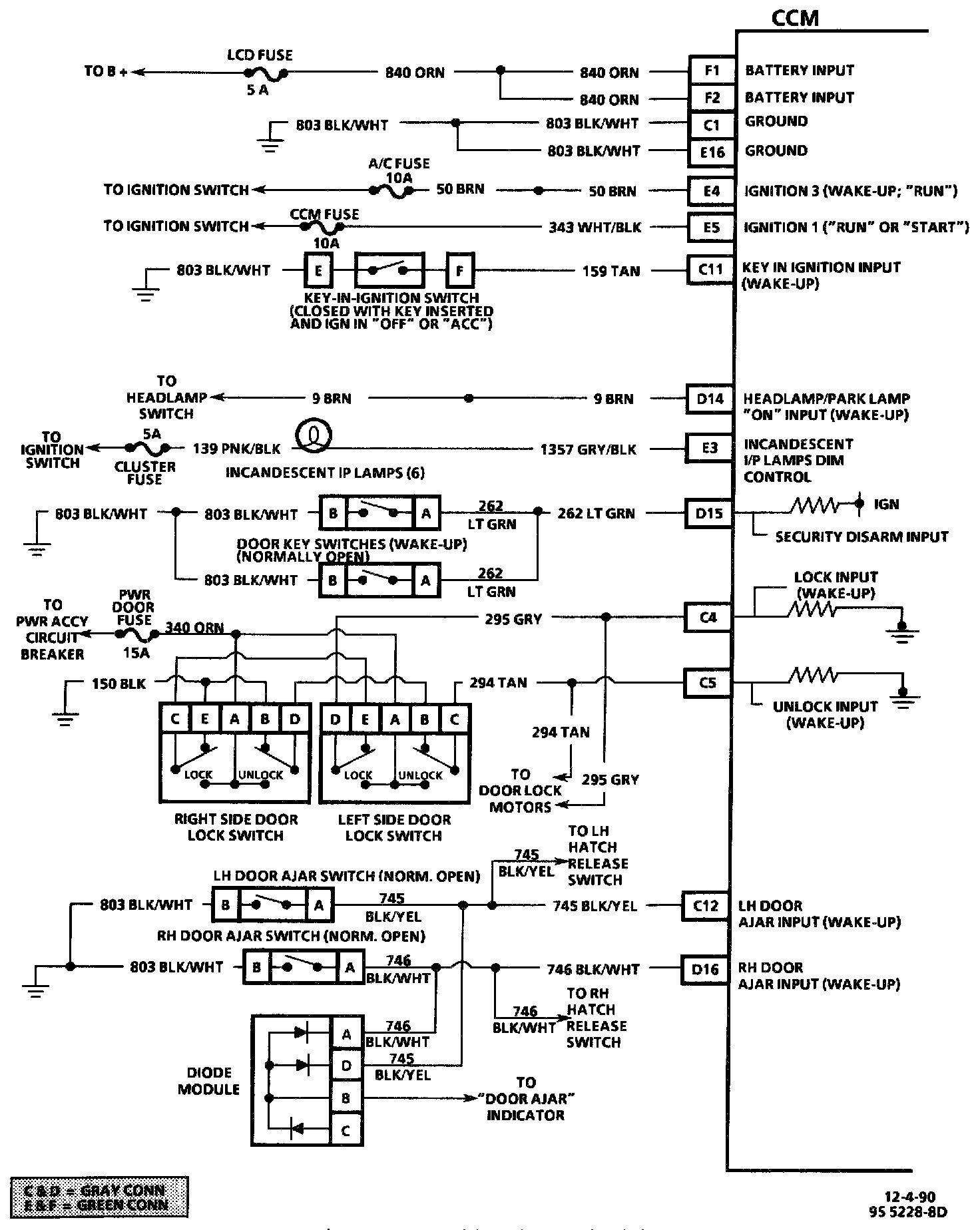

2 Of 5:

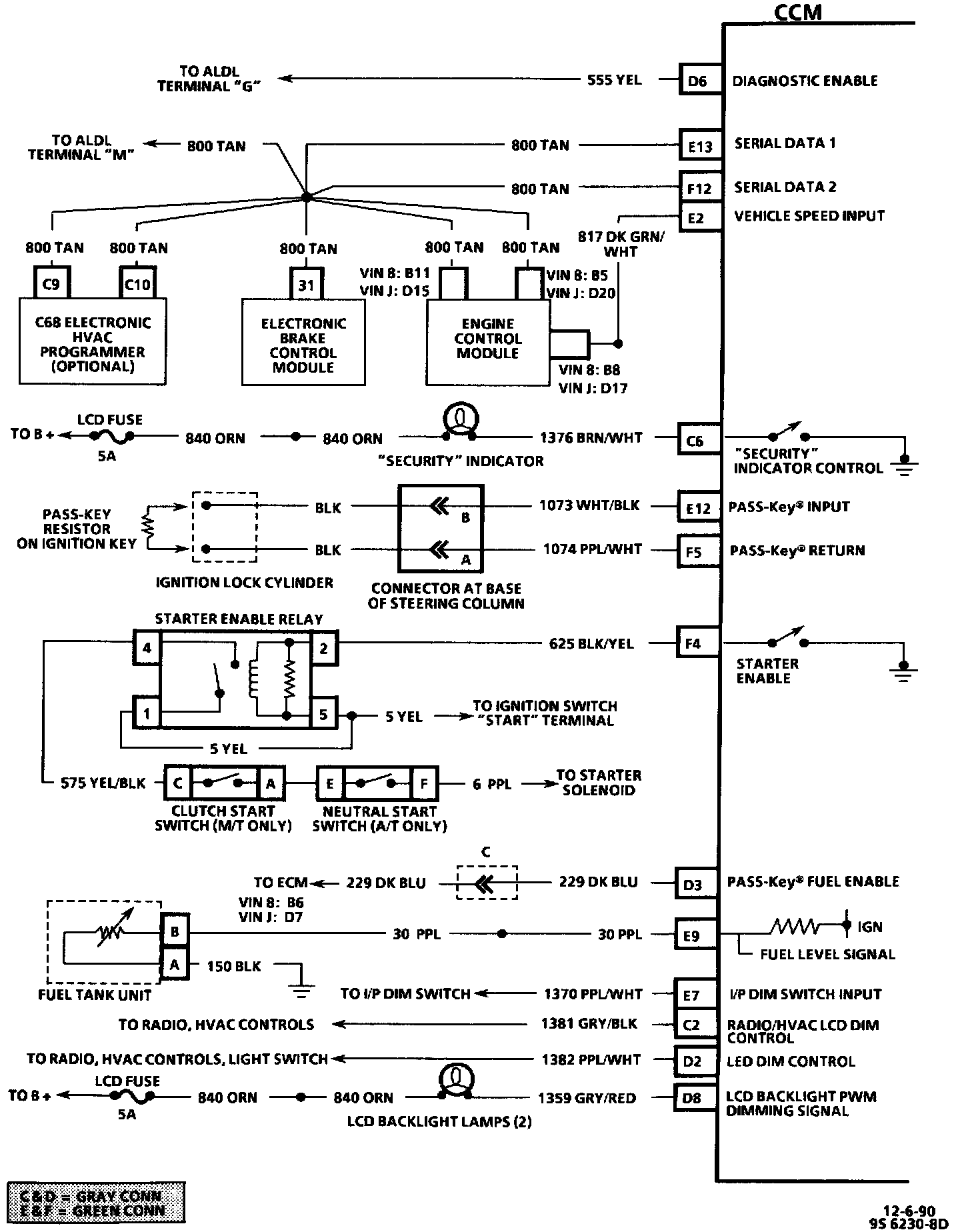

3 Of 5:

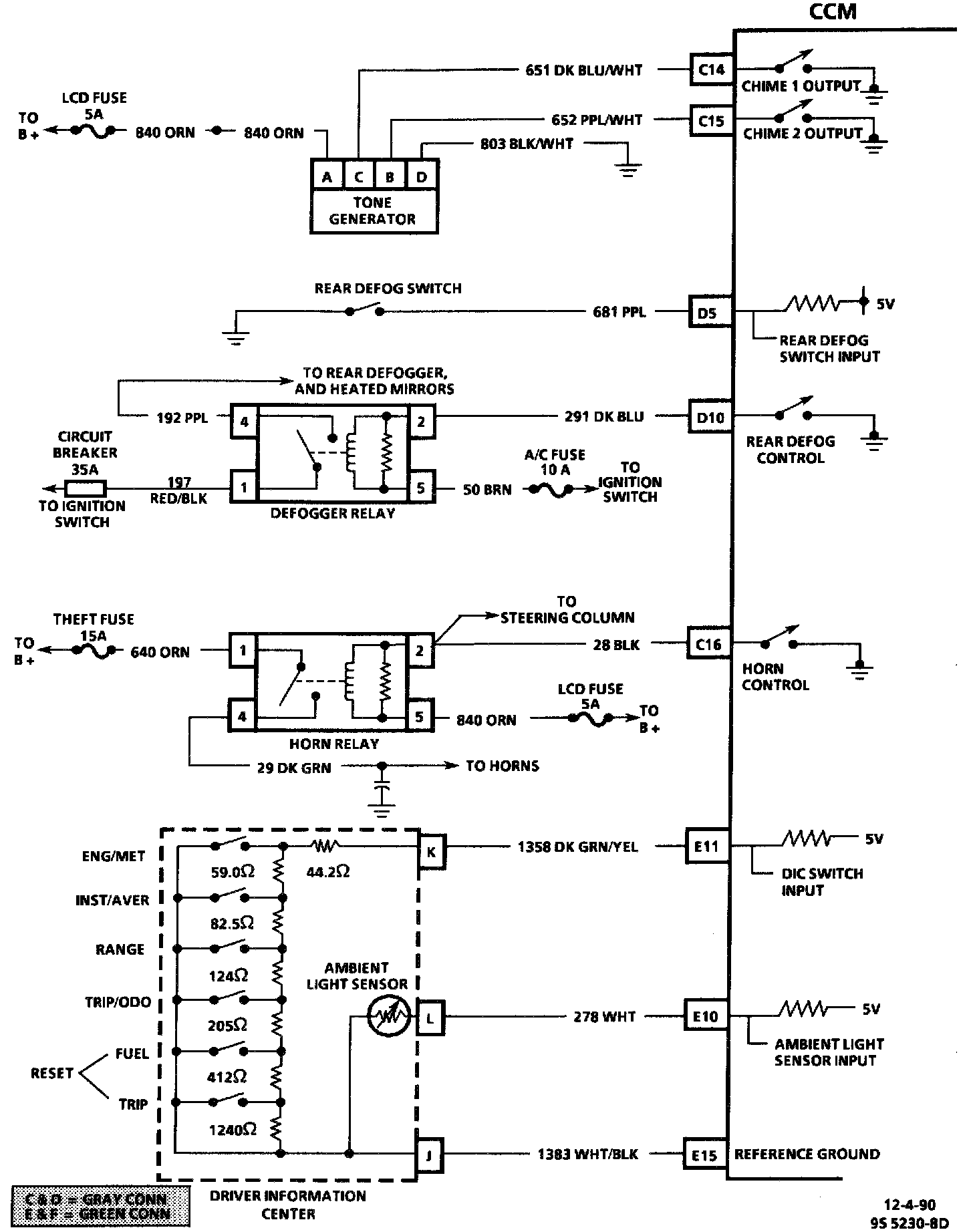

4 Of 5:



5 Of 5:
