DTC 75

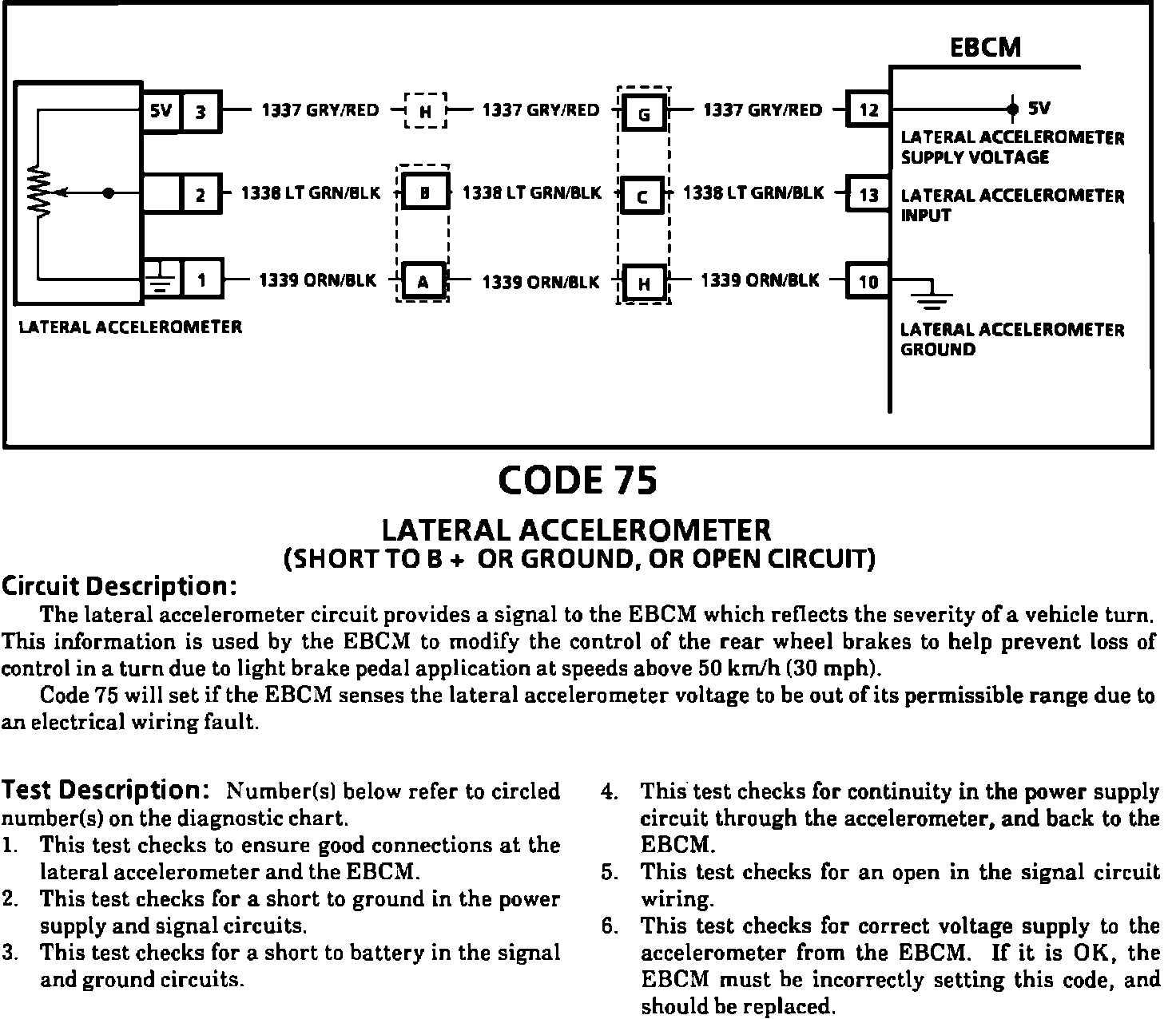

Fig. 56 Code 75, Lateral Accelerometer (Short To B+ Or Ground, Or Open Circuit). 1991. (Part 1 of 2).:

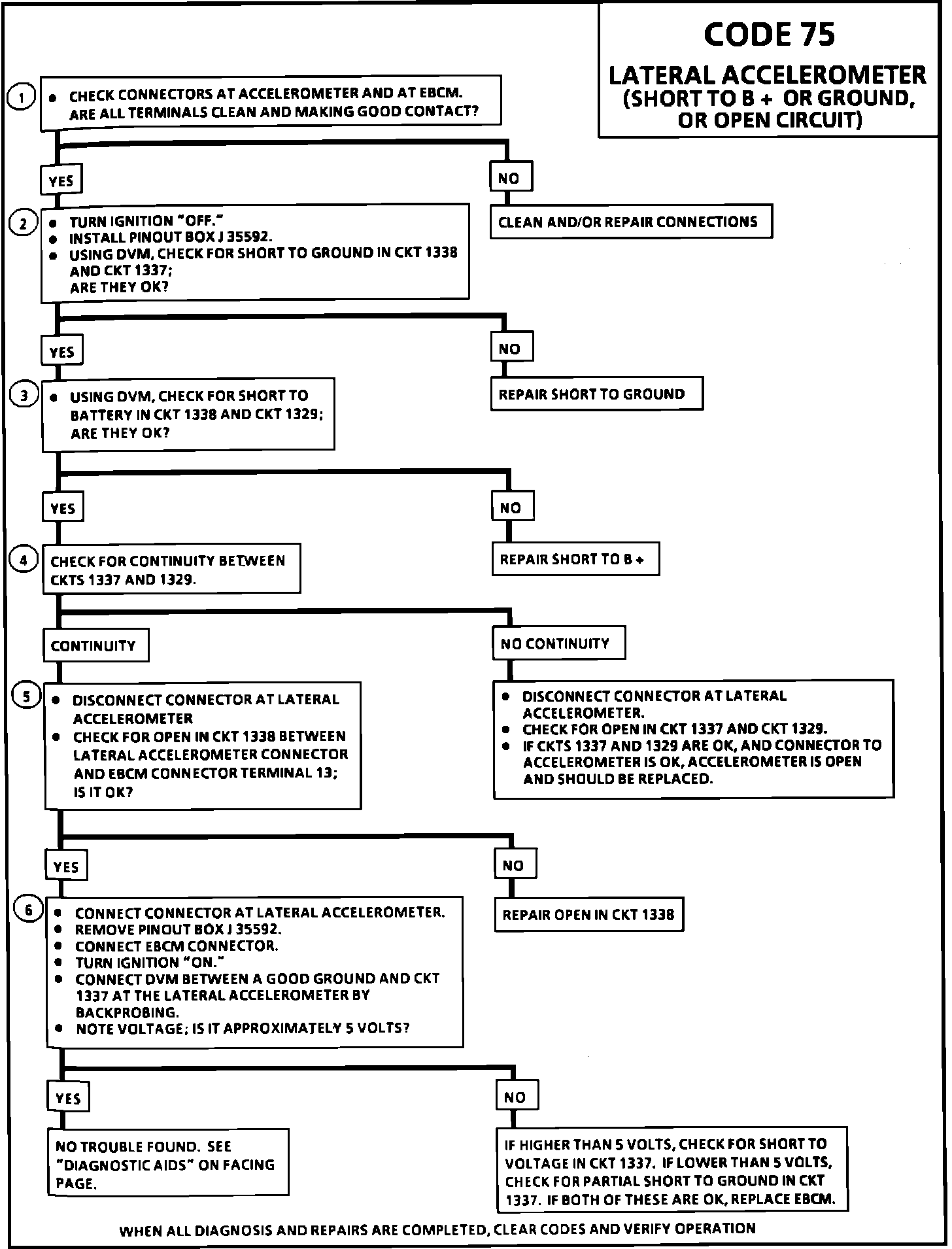

Fig. 56 Code 75, Lateral Accelerometer (Short To B+ Or Ground, Or Open Circuit). 1991. (Part 2 of 2).:
