Home
>>
Chevrolet
>>
1991
>>
Cavalier/Z24 V6-191 3.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>

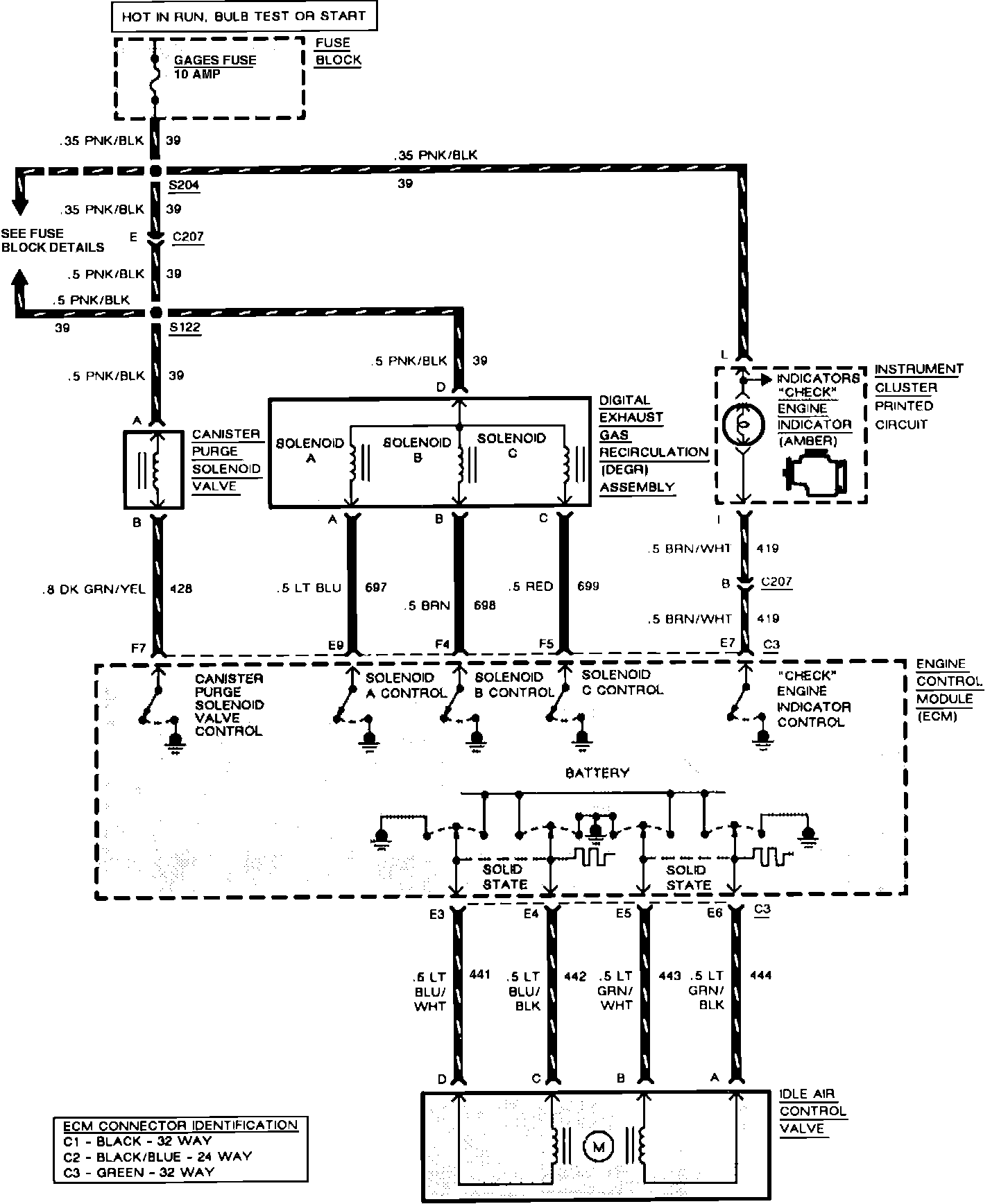

System Diagram
>>
Powertrain Controls
>>
Fuel Control
Fuel Control

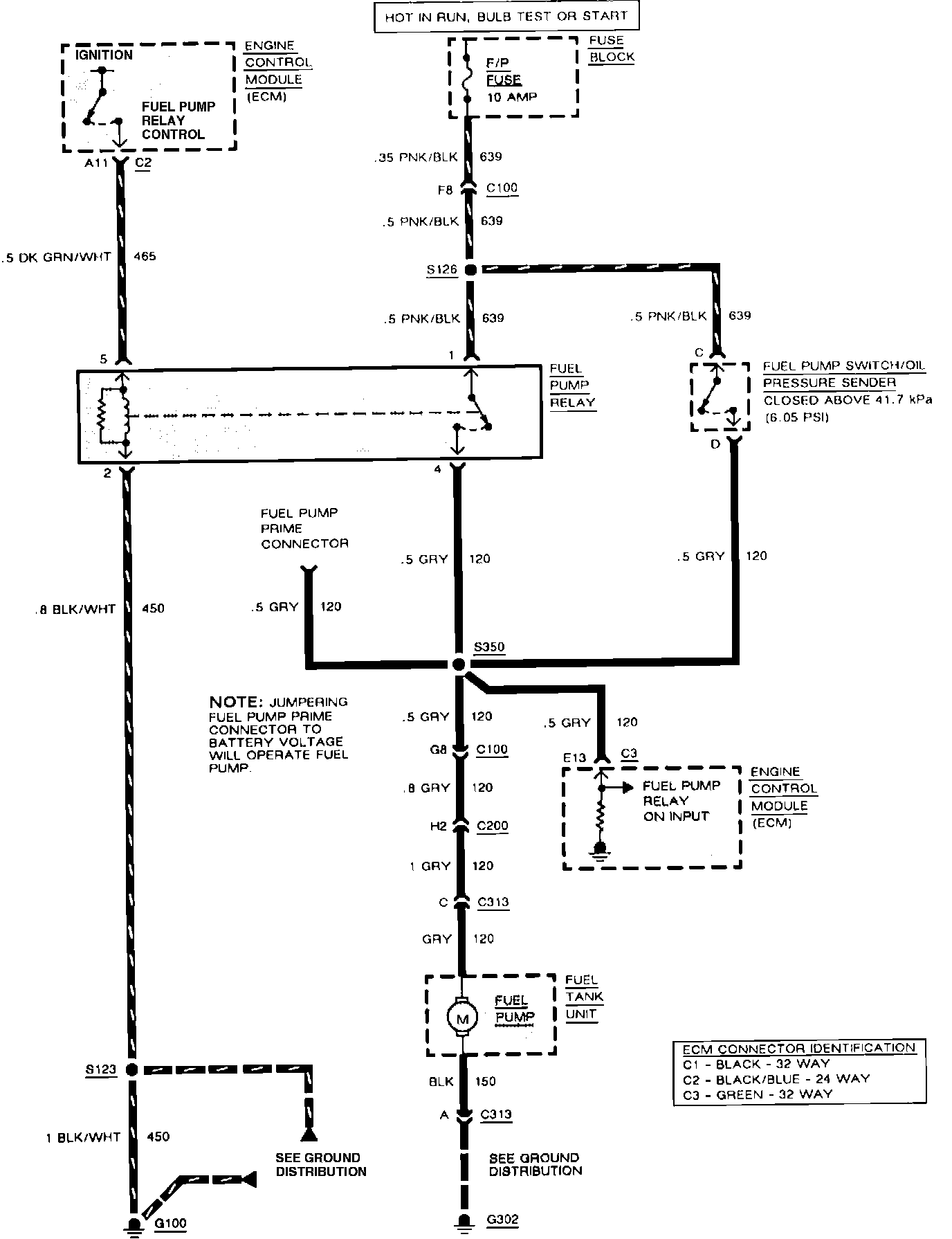

Multi-Port Fuel Injection:
Multi-Port Fuel Injection:
