Console - Park Brake Lever Brushes Loose

Number:
92-251-5

Section:
5

Date:
AUGUST 1992

Corporate Bulletin No.:
238302

ASE No.:
A5



Subject:
CONSOLE PARK BRAKE LEVER BRUSH LOOSE


Model and Year:
1991-92 CAVALIER



Condition:
Examination of returned parts on some Chevrolet Cavalier cars have revealed that replacement has been due to park brake brushes that become loose. Affected consoles can be repaired instead of replaced.

Correction:

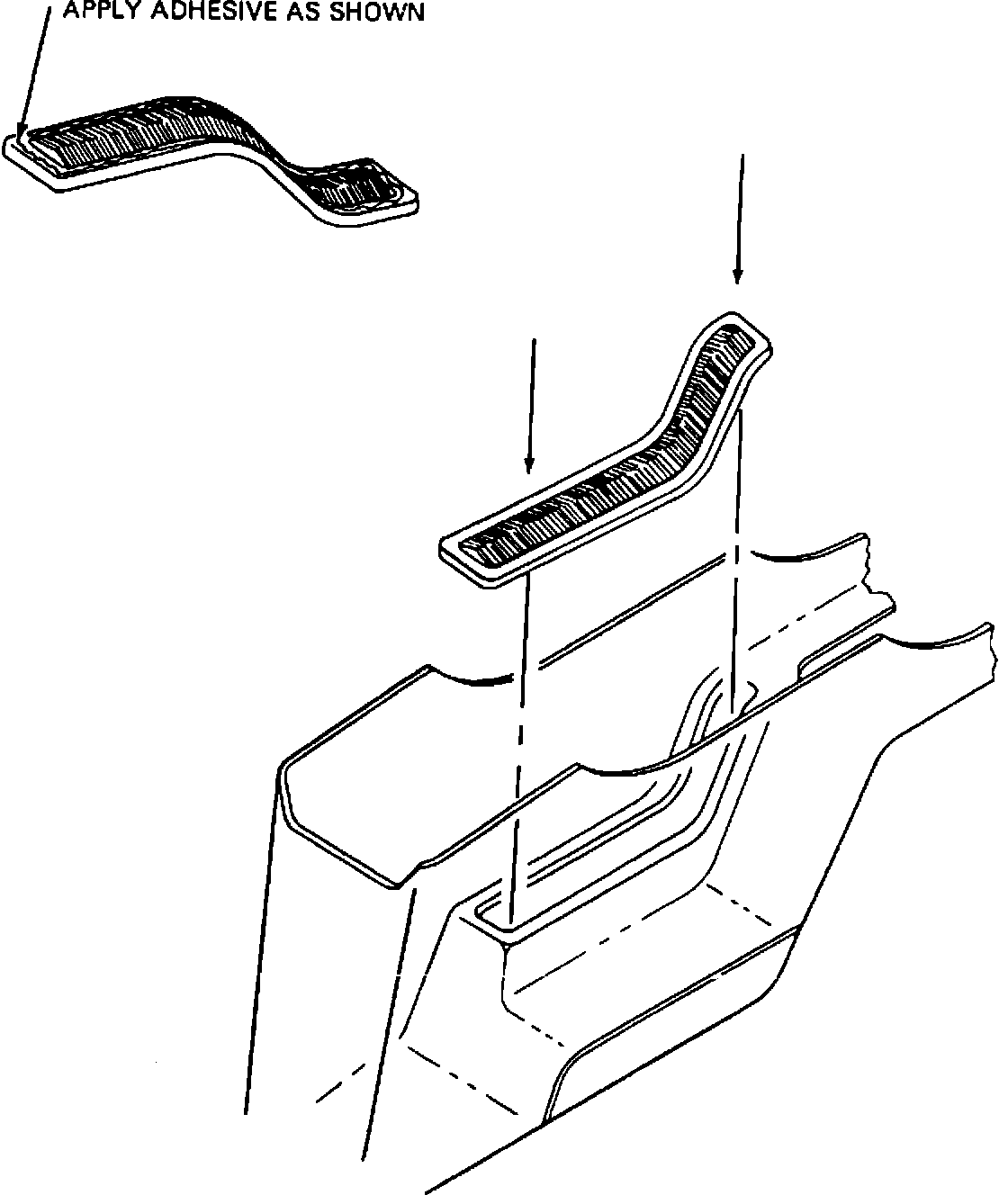

Remove console assembly, following the appropriate 1991 and 1992 "J" Car Service Manual procedure in Section 8C. Apply adhesive P/N 12345632, or equivalent, as shown and hold in place for approximately one minute.

Parts are currently available from GMSPO.

Labor Operation Number
C-2860

Use applicable labor time guide for labor hours.
