Seat Belt Reminder Lamp
>>
Testing and Inspection
>>
Test E: Indicator Short Test
Test E: Indicator Short Test

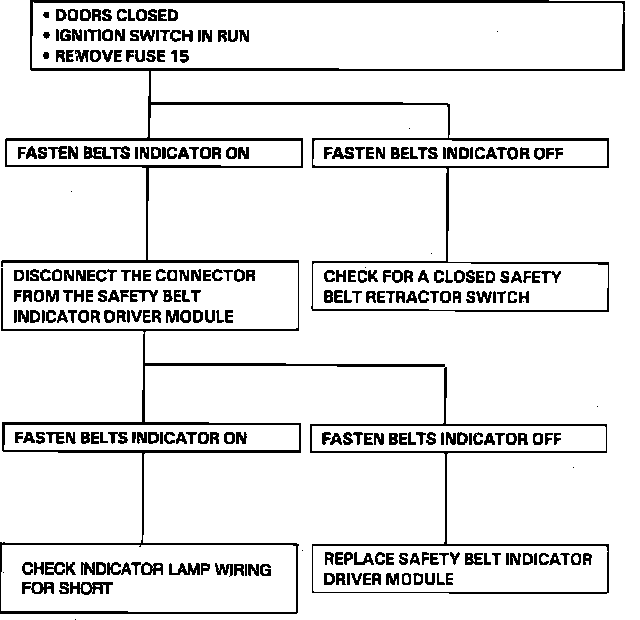

Fig. 18 Automatic Safety Belt Diagnosis, Indicator Short Test:
