Seat Belt Reminder Lamp
>>
Testing and Inspection
>>
Test D: Fasten Belts Indicator Test
Test D: Fasten Belts Indicator Test

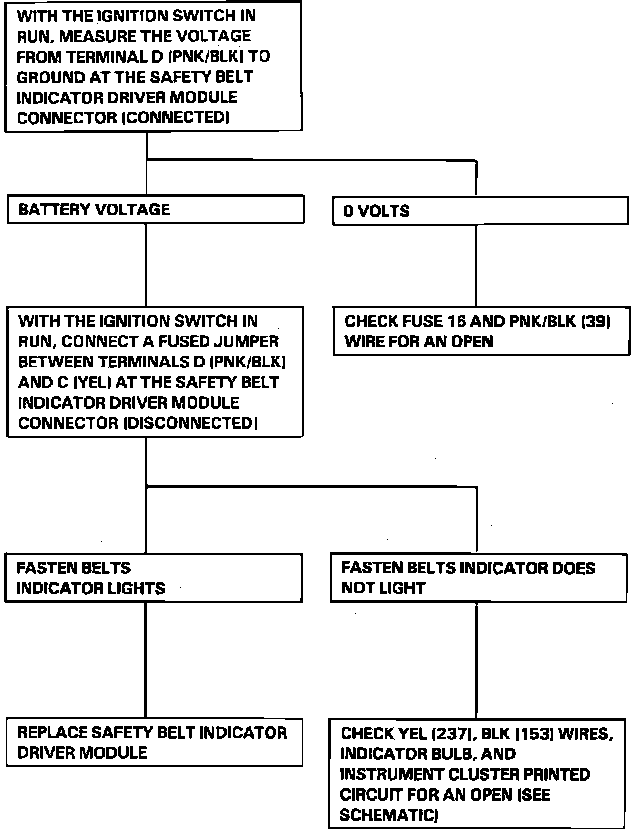

Fig. 17 Automatic Safety Belt Diagnosis, Fasten Belts Indicator Test:
