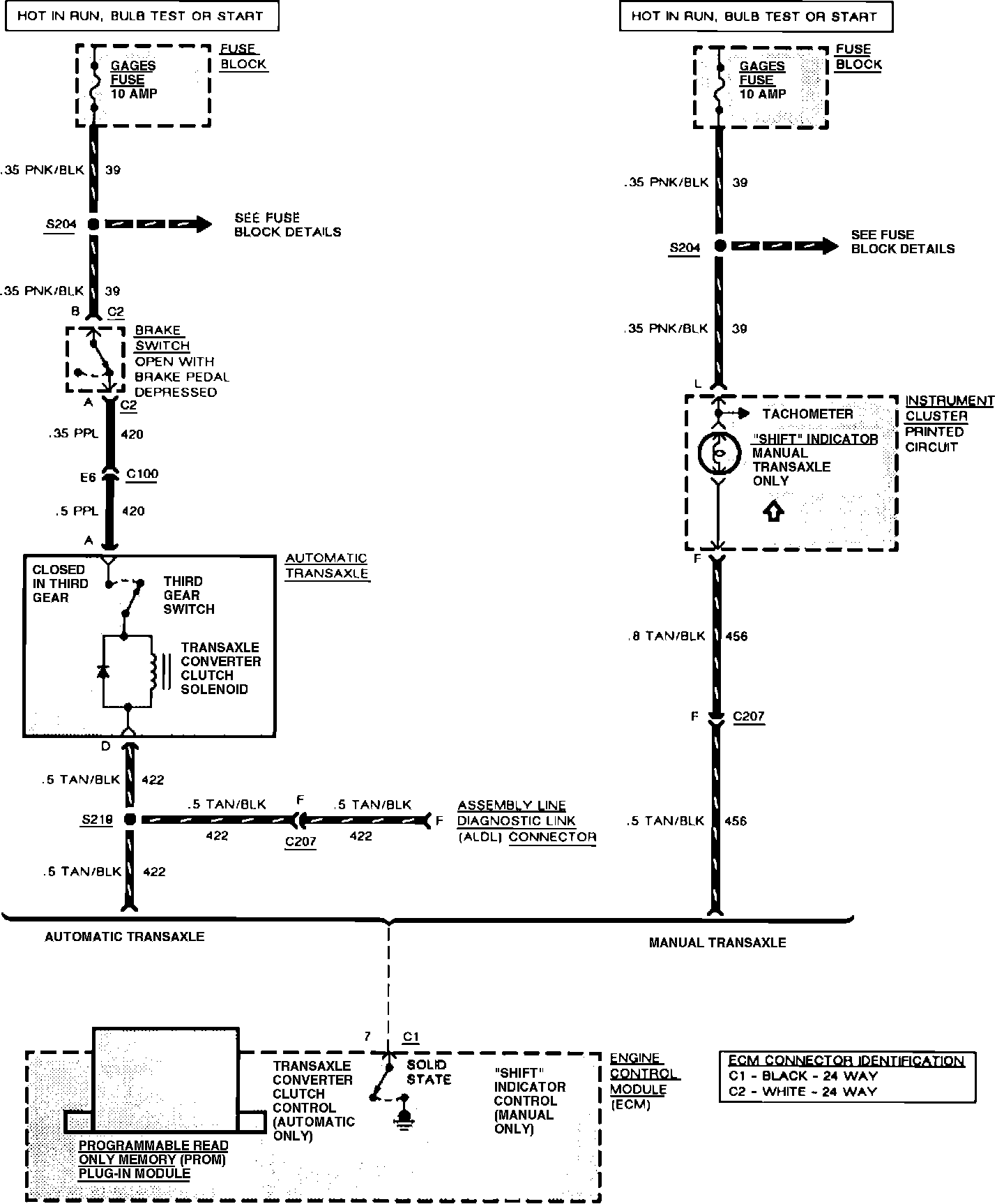

Torque Converter Clutch & Shift Indicator
Torque Converter Clutch & Shift Indicator
Engine Controls (ECM):
