Cavalier/Z24 L4-134 2.2L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Engine Data Sensors & Vehicle Data Sensors
>>

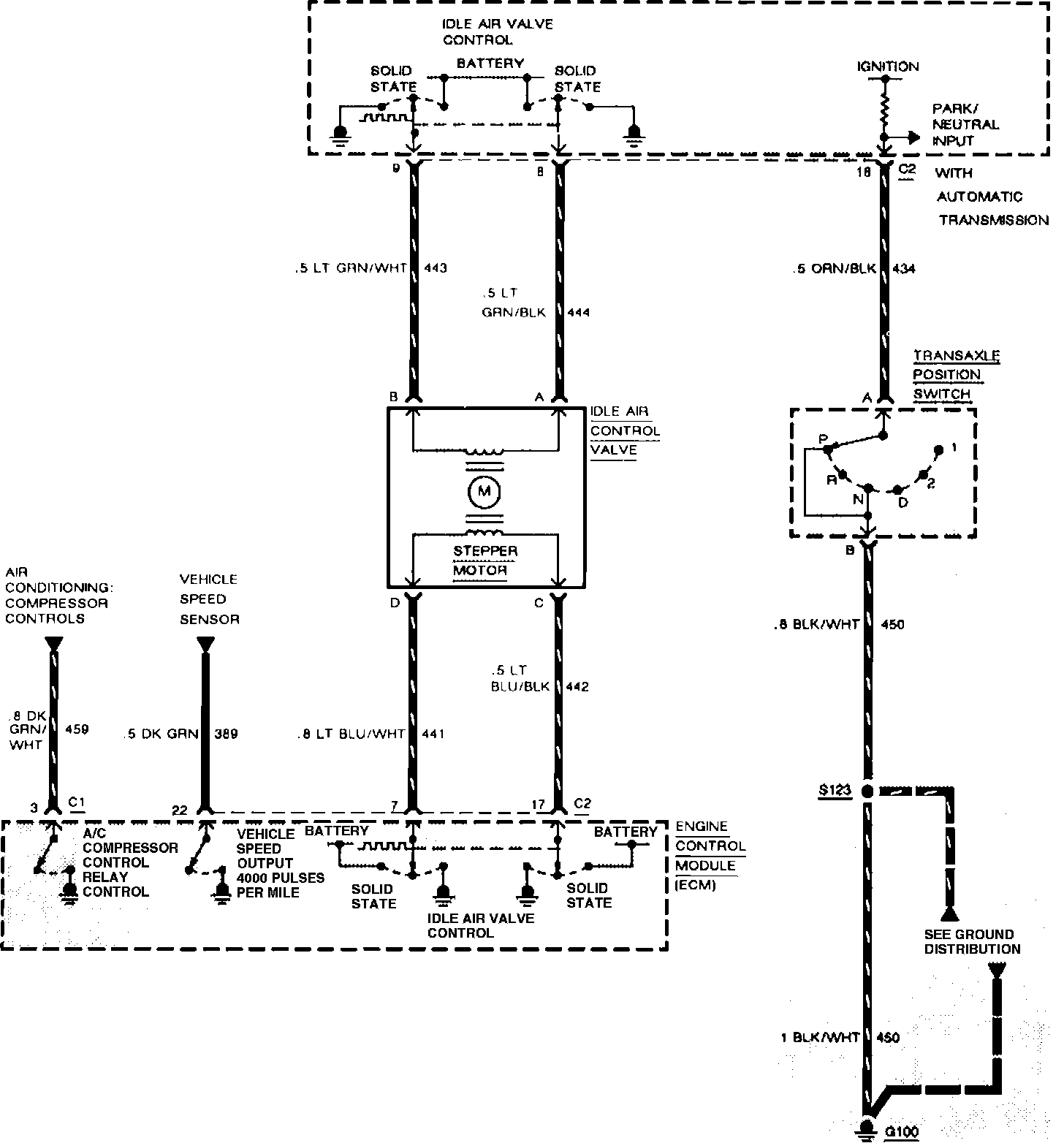

With Idle Air Control
With Idle Air Control
Engine Controls (ECM):
