Chevrolet
>>
1991
>>
Cavalier/Z24 L4-134 2.2L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Engine Data Sensors & Vehicle Data Sensors
>>
Less Idle Air Control
Less Idle Air Control

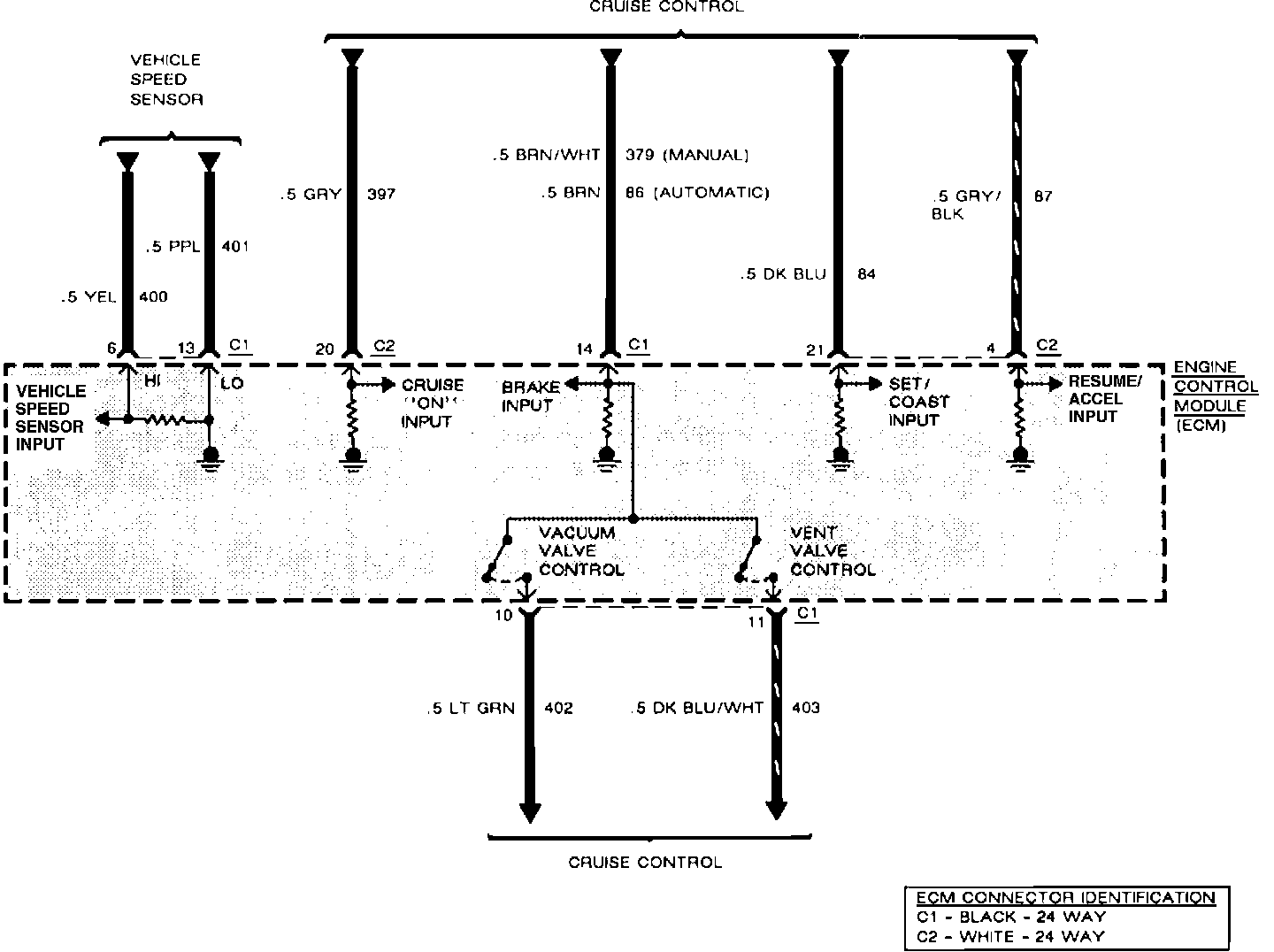

Engine Controls (ECM):
