Home
>>
Chevrolet
>>
1991
>>
Cavalier/Z24 L4-134 2.2L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>
RDO 2 Fuse
RDO 2 Fuse

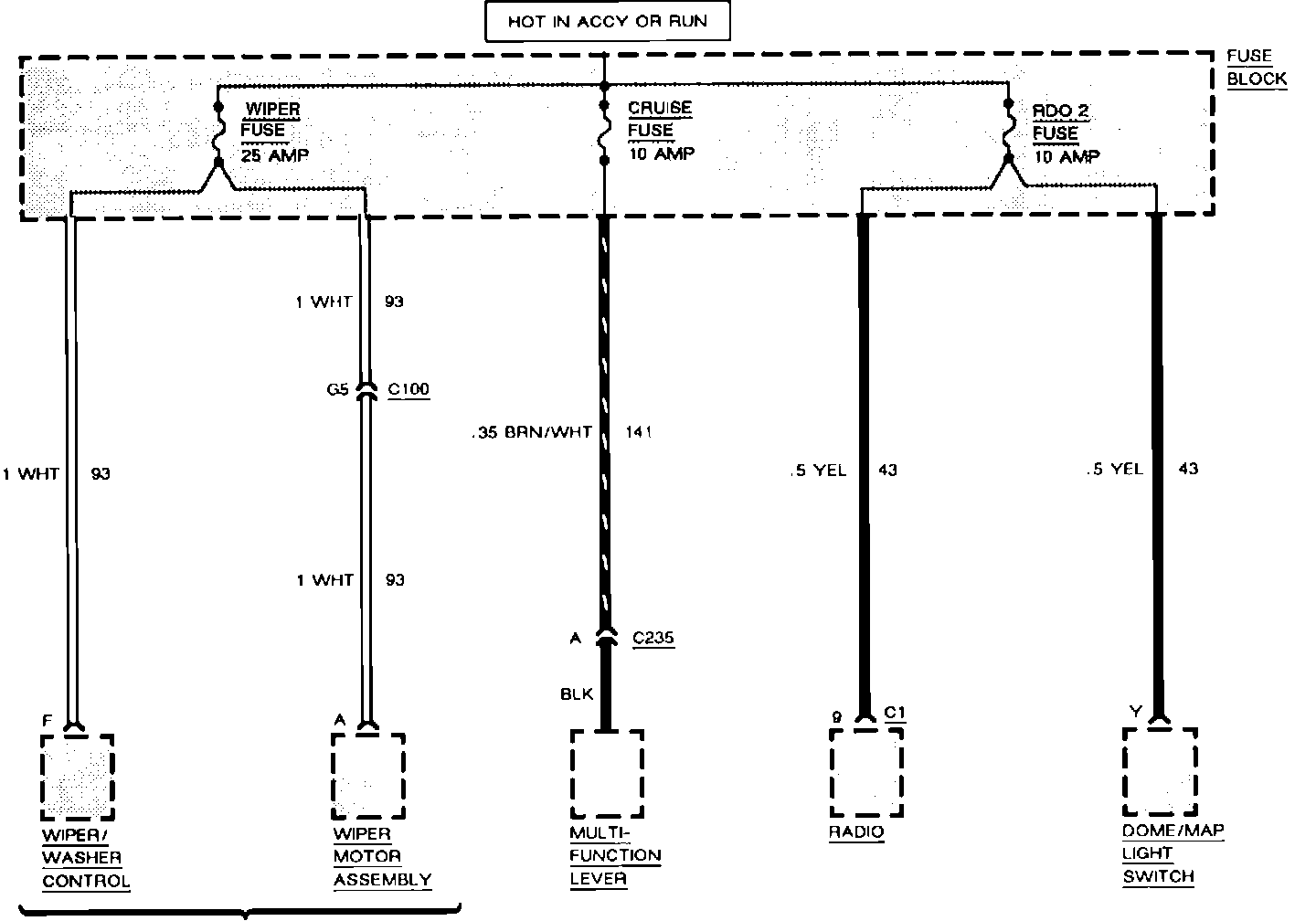

Fuse Block Details: Wiper Fuse, Cruise Fuse And RDO 2 Fuse:
