Cavalier/Z24 L4-134 2.2L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Turn Signals
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

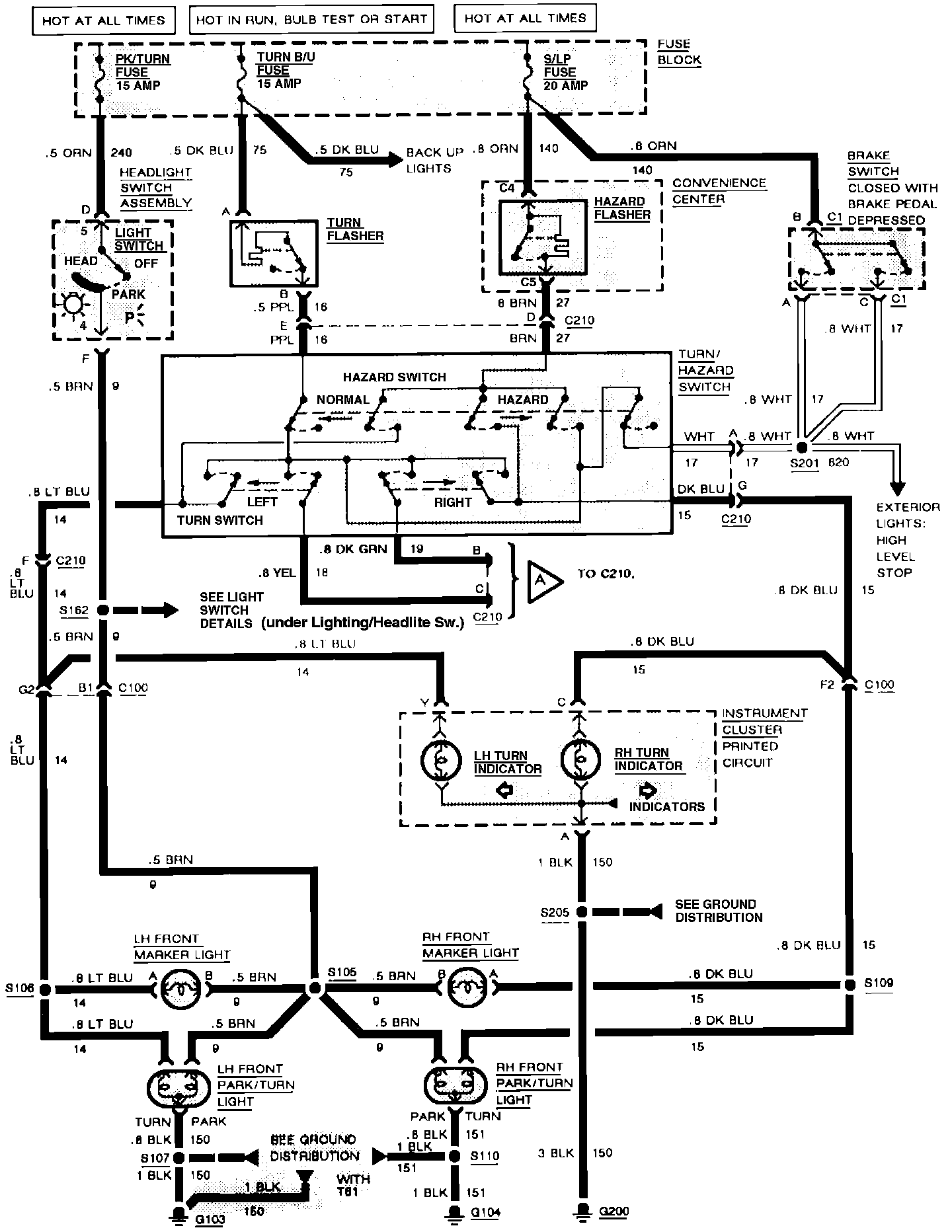

Exterior Lights: Hazard/Front Marker/Front Park/Turn:

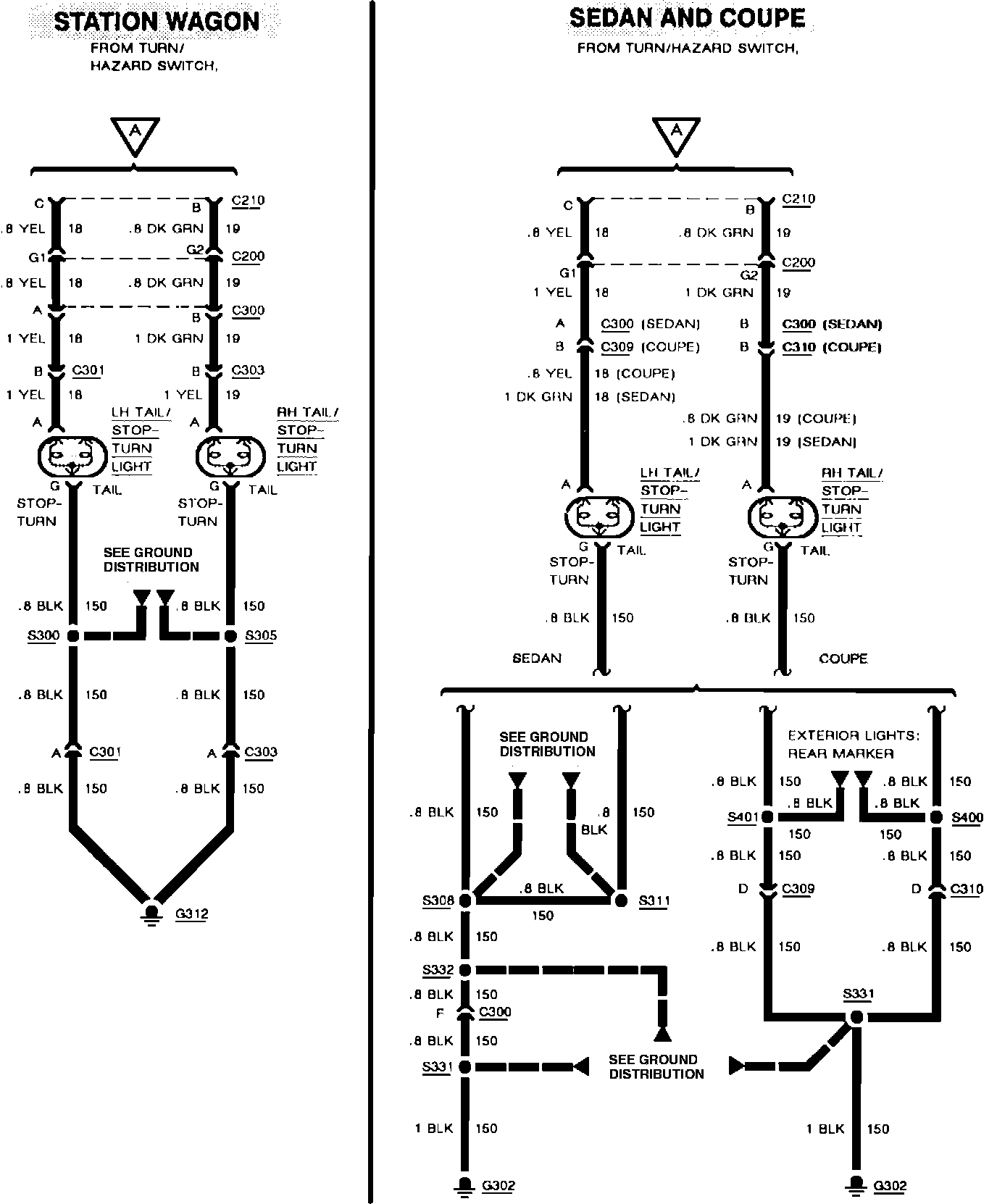

Exterior Lights: Stop-Turn:
