Engine Mount: Service and Repair

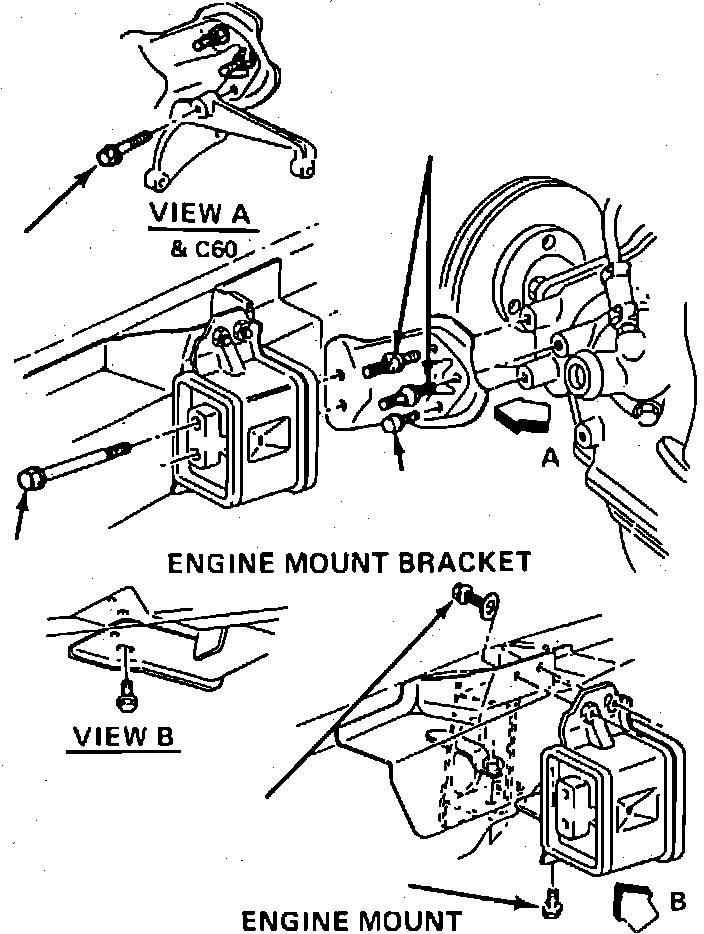

Fig. 1 Front Engine Mount:

FRONT ENGINE MOUNT
1. Disconnect battery ground cable.
2. Remove upper engine mount to body bolts, Fig. 1.
3. Remove upper engine mount to engine bracket bolt.
4. Raise and support vehicle.
5. Using a suitable jack, support engine assembly.
6. Remove inner fender shield.
7. Remove lower engine mount to body bolt.
8. Remove lower engine mount to engine mount bracket bolt, then remove mount.
9. Reverse procedure to install, torque bolts and nuts to specifications.

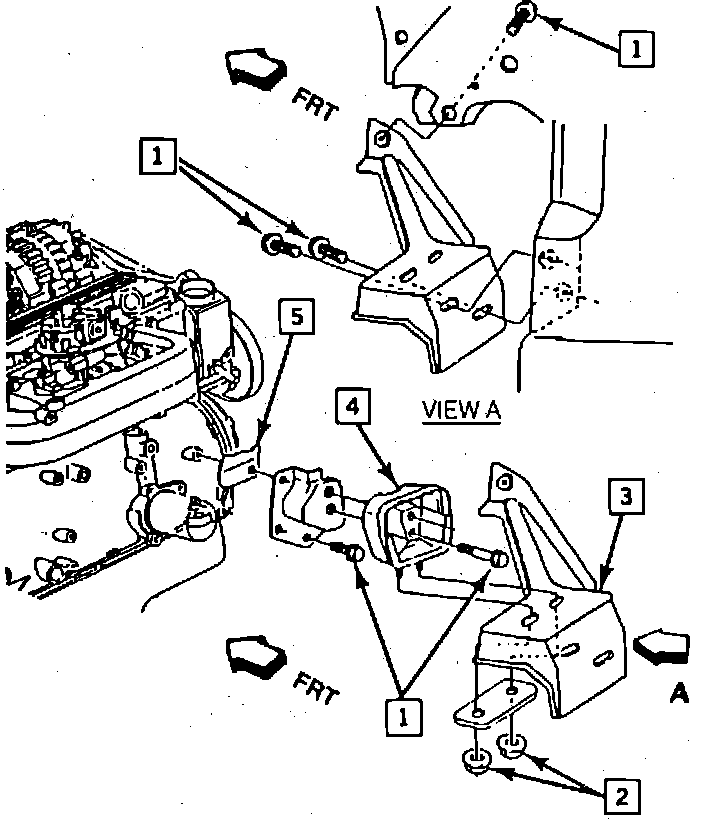

Fig. 2 Rear Engine Mount:

REAR ENGINE MOUNT
1. Disconnect battery ground cable.
2. Raise and support vehicle.
3. Remove engine mount retaining bolts and nuts, Fig. 2, then remove mount.
4. Reverse procedure to install, torque bolts and nuts to specifications.
