Fluid Warning Center - Diagnostic Chart Revision

9218chevy08

Number: 91-15-8A

Section: 8A

Date: May 1990

Corporate Bulletin No.: 018110


Subject:
REVISED DIAGNOSIS CHART


Model and Year:
1991 B CAR








TO: ALL CHEVROLET DEALERS

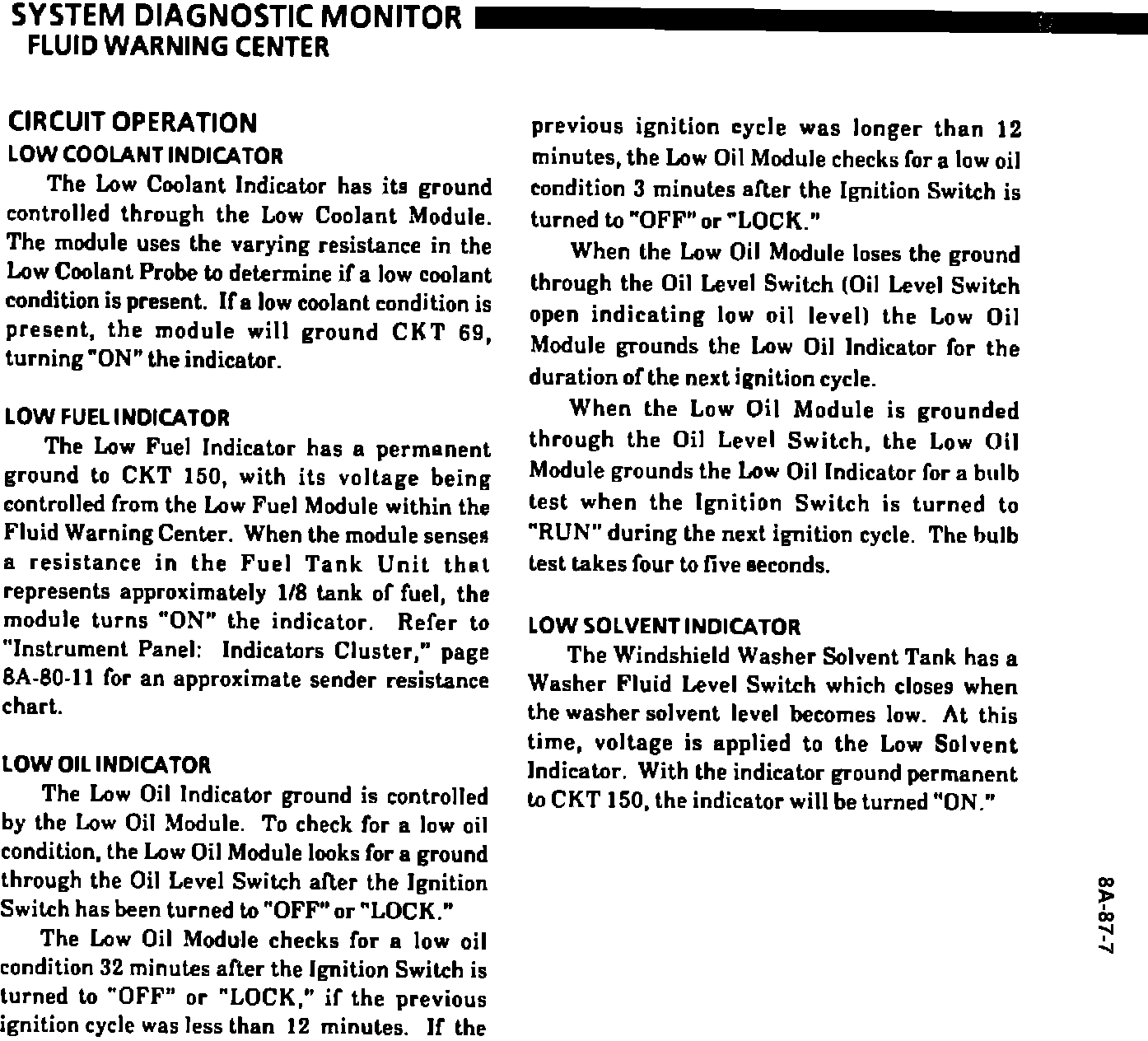

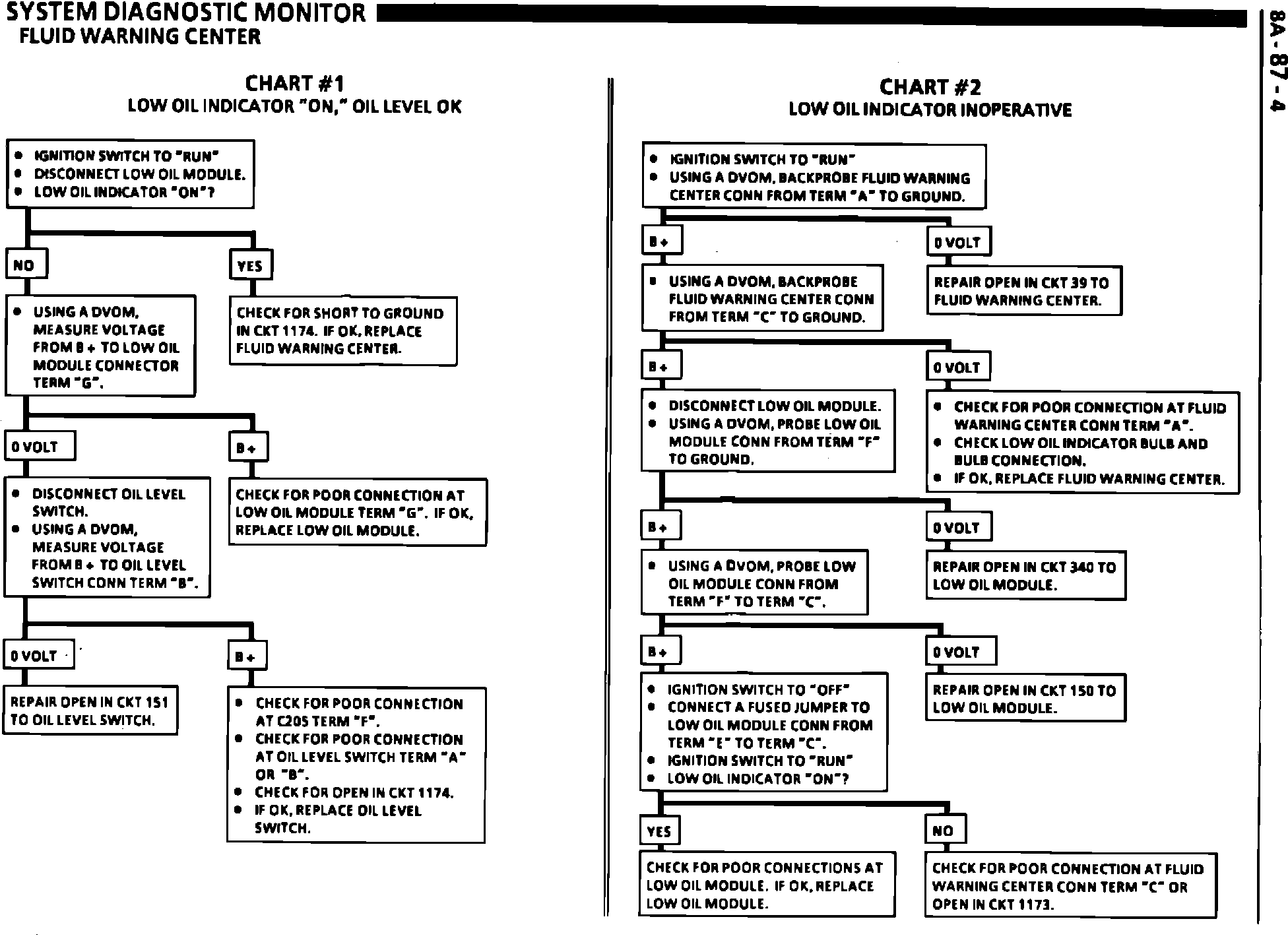

The illustrated pages update Section 8A Electrical Diagnosis of the 1991 B car Service
Manual: 8A-87-4 and 8A-87-7.
