Chevrolet
>>
1991
>>
Caprice V8-350 5.7L VIN 7 TBI
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G104
G104

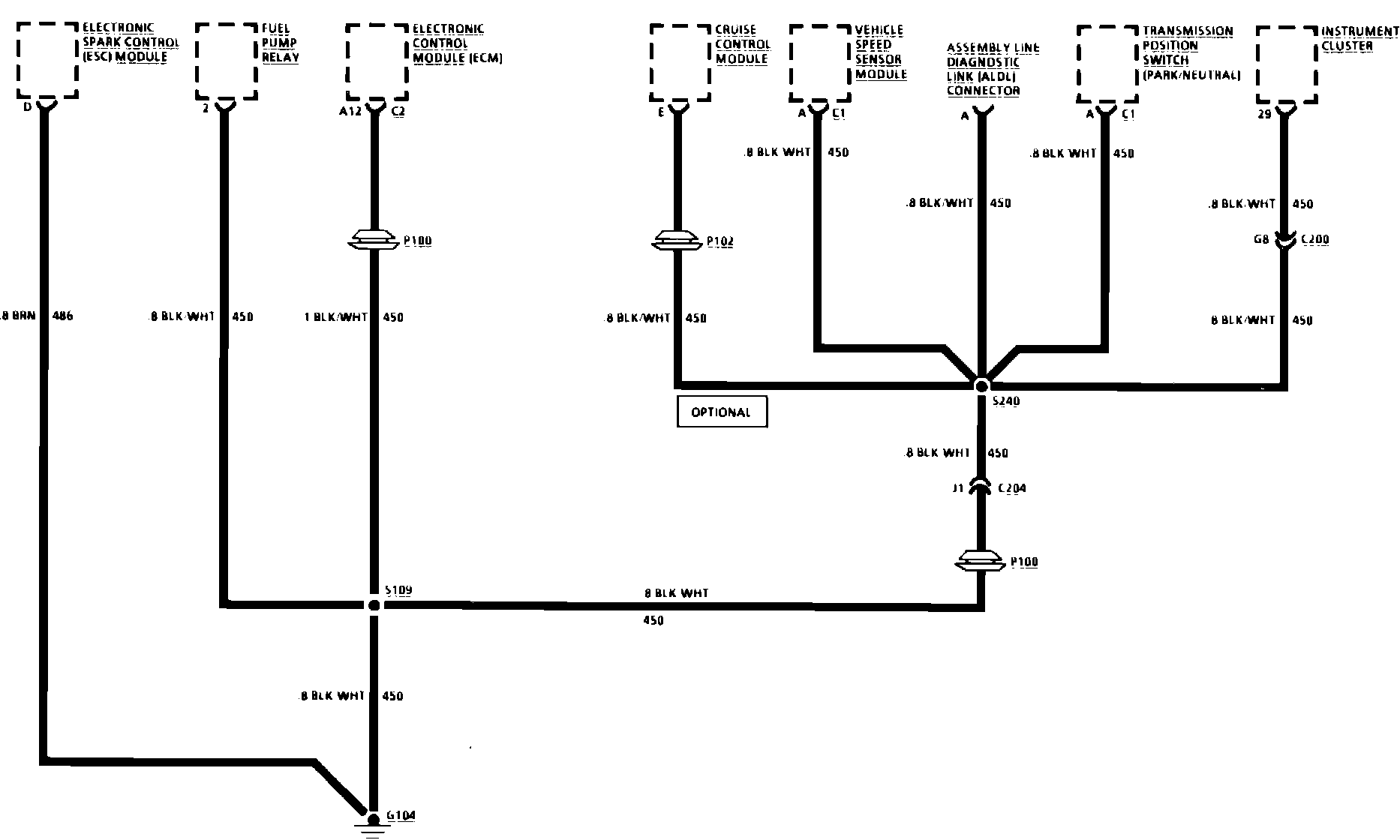

Ground Distribution (G104):
